Power Seat Motor: Description and Operation

1. Remove power seat switch from seat.
2. Disconnect wire harness connector.
3. Check Pin 5 for battery voltage and Pin 1 for ground.

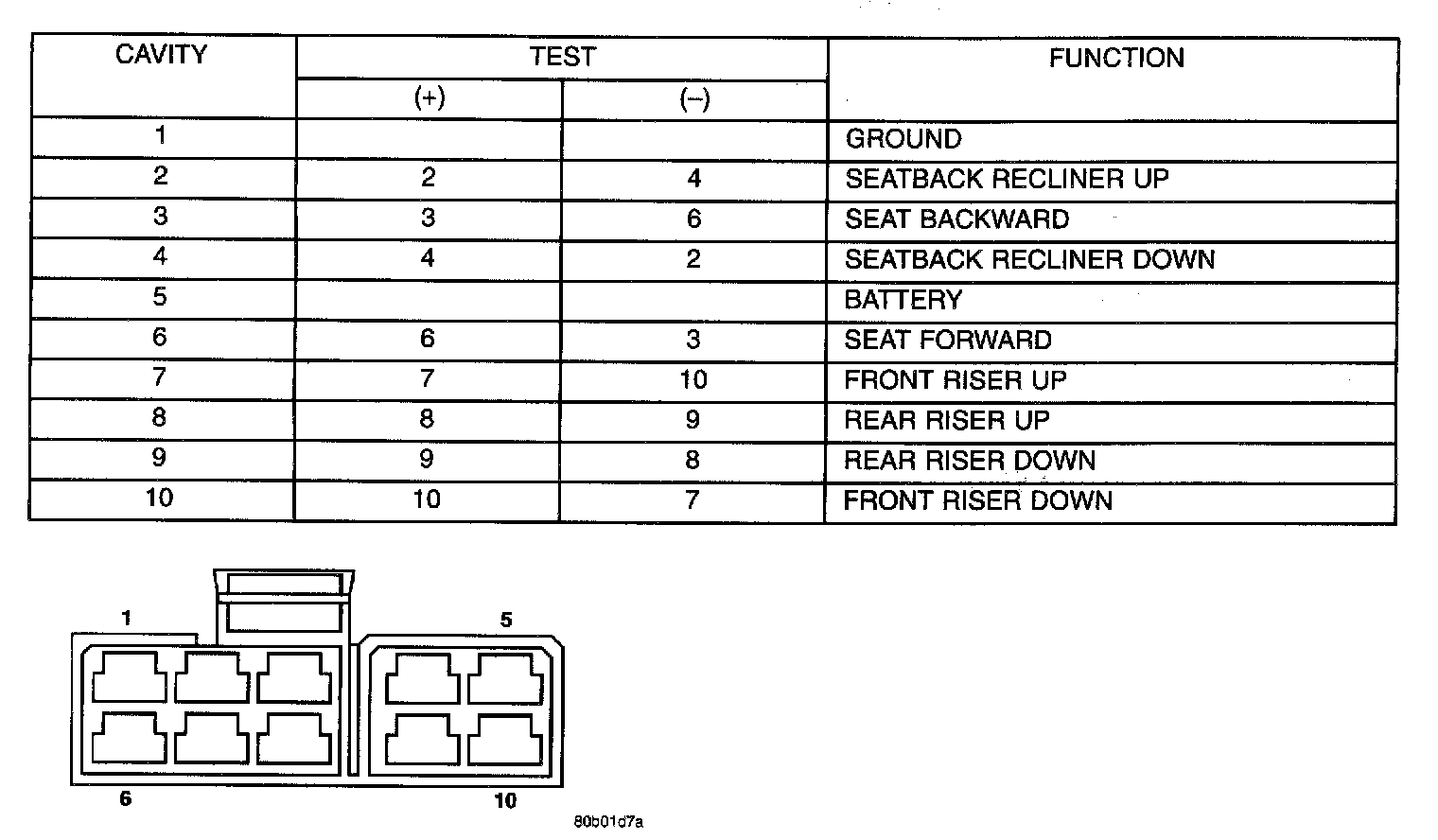

Switch Harness Connector Circuit Test:

4. To test the seat motors, refer to the above diagram, and verify proper seat responses. Using two jumper wires, connect one to a battery supply and the second to a ground. Connect the other ends to the seat wire harness connector as described in the Switch Harness Connector Circuit Test table.
