Sunroof / Moonroof Windguard: Service and Repair
SUNROOF WIND DEFLECTORREMOVAL
1. Open sunroof glass panel.

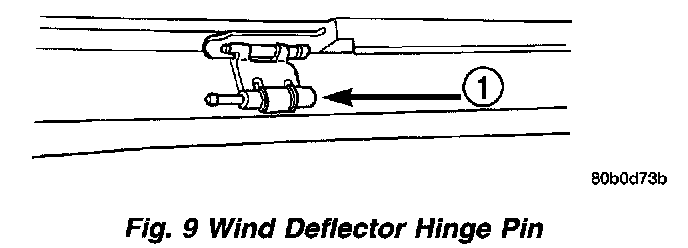

Fig. 9:
2. Remove hinge pins by pushing them outboard to release the wind deflector from sunroof housing (Fig. 9).

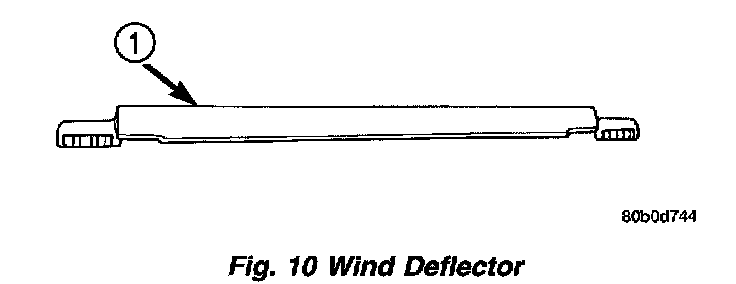

Fig. 10:
3. Remove wind deflector (Fig. 10).
INSTALLATION
1. Place wind deflector on wind deflector brackets.
2. Install wind deflector hinge pins.
