Sunroof Opening Trim Lace

SUNROOF OPENING TRIM LACE

REMOVAL

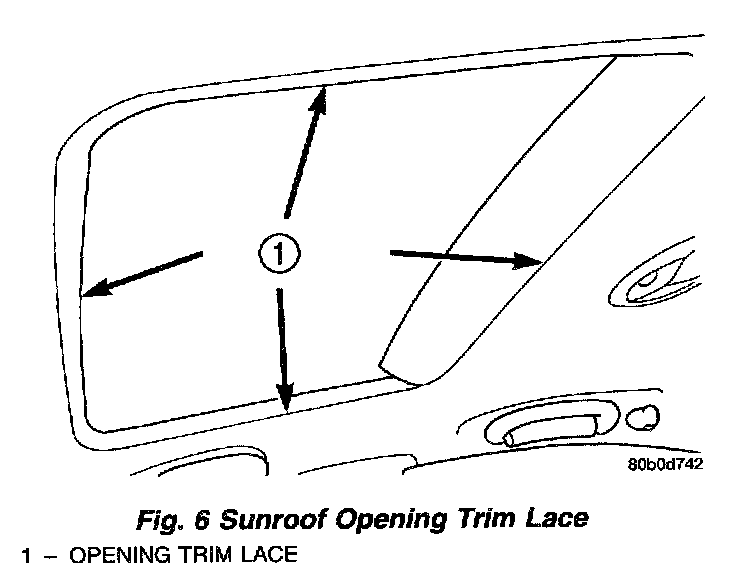

Fig. 6:

Remove lace by starting at the joint and pull one end of the lace away from the headliner until the entire lace is removed (Fig. 6).

INSTALLATION

Install lace by starting at the spot of the previous joint, fully seat the lace in place around the sunroof opening. cut to fit if necessary.
