Electrical Diagrams

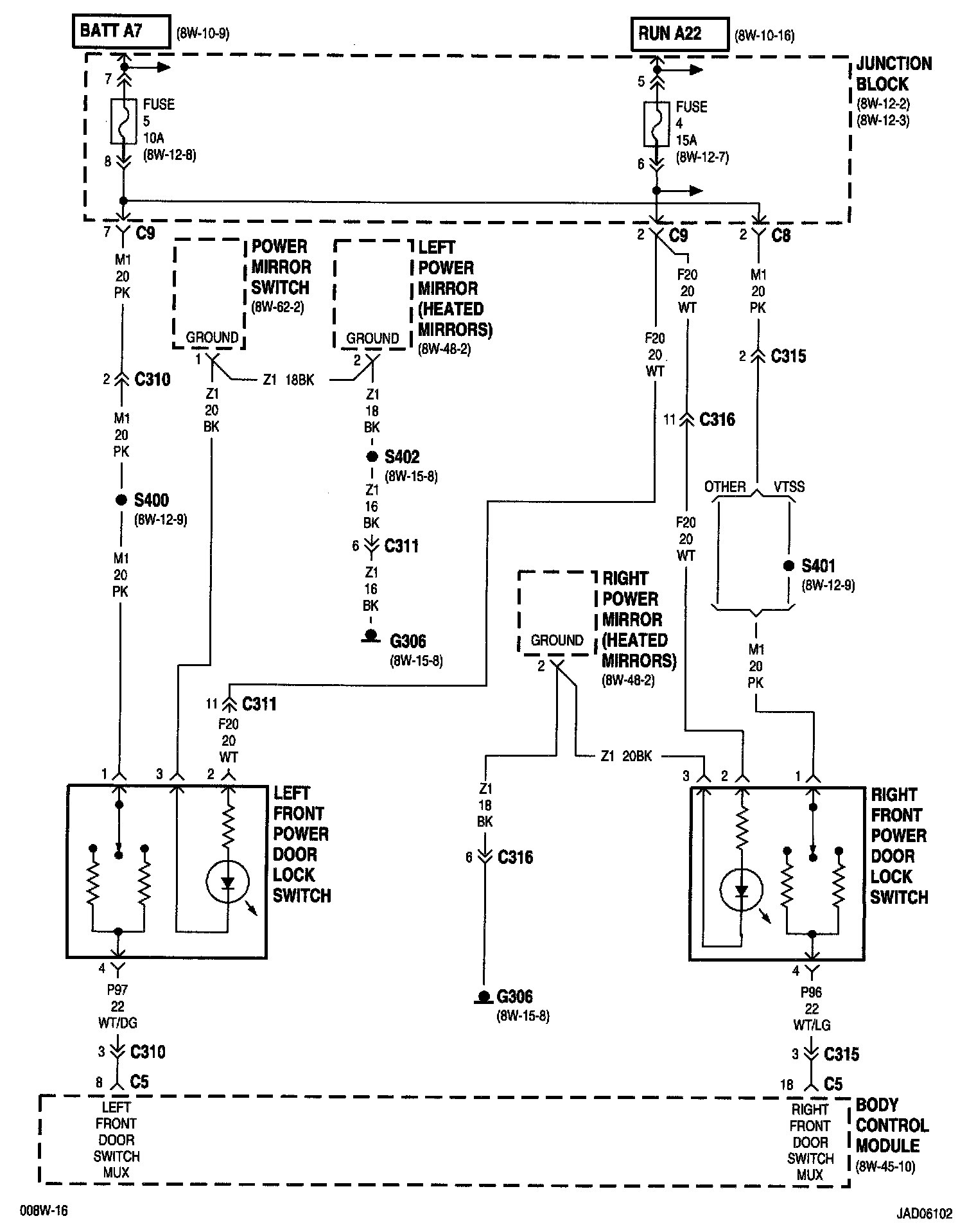

8w-61-2 Without RKE:

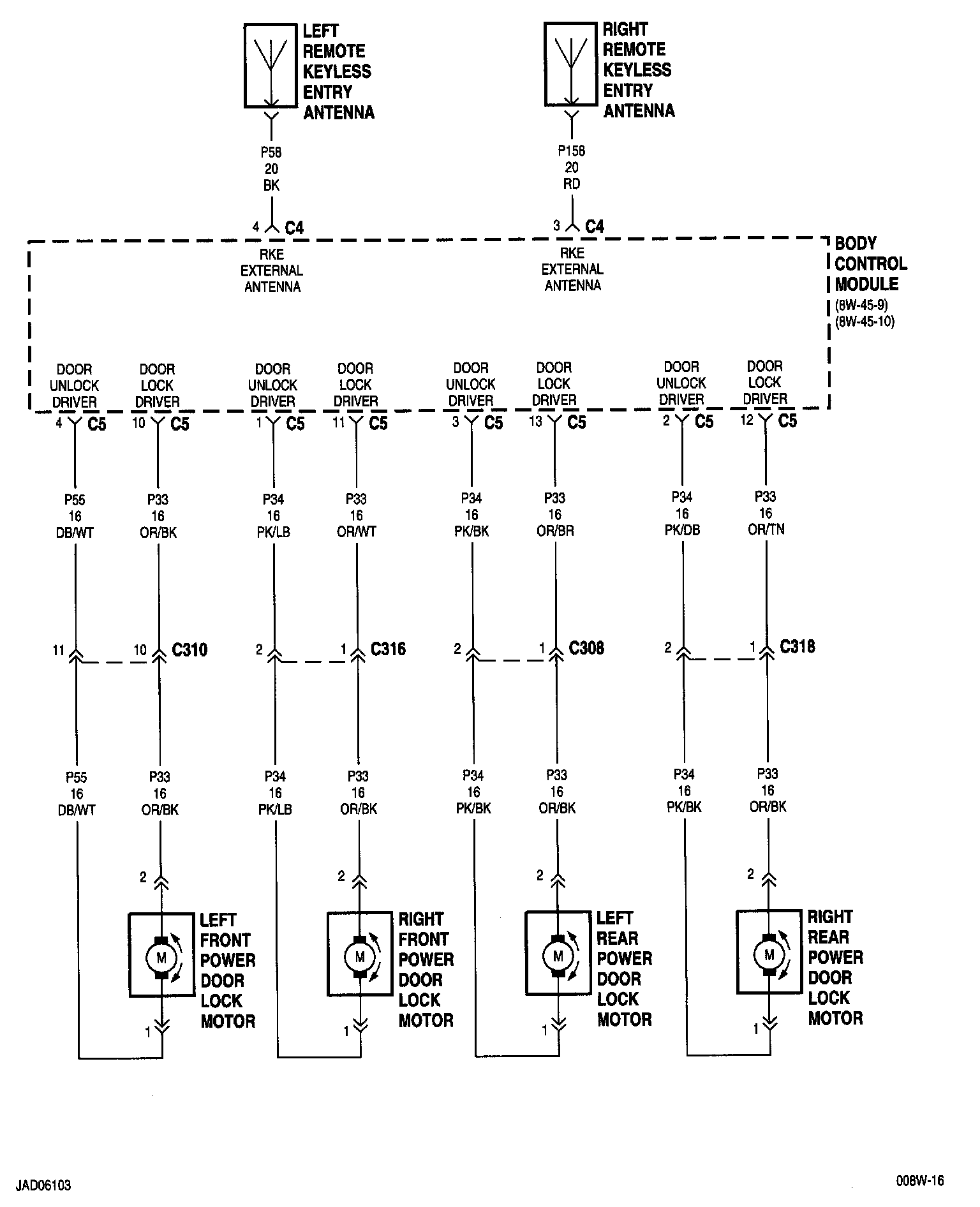

8w-61-3 With RKE:





NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
