Rear Shelf Trim Panel
REAR SHELF TRIMREMOVAL
1. Remove upper quarter trim panels as necessary.
2. Remove rear seat cushion, bolsters and back close out panels.
3. Remove lock ring bezel.
4. Remove close out panel trim.

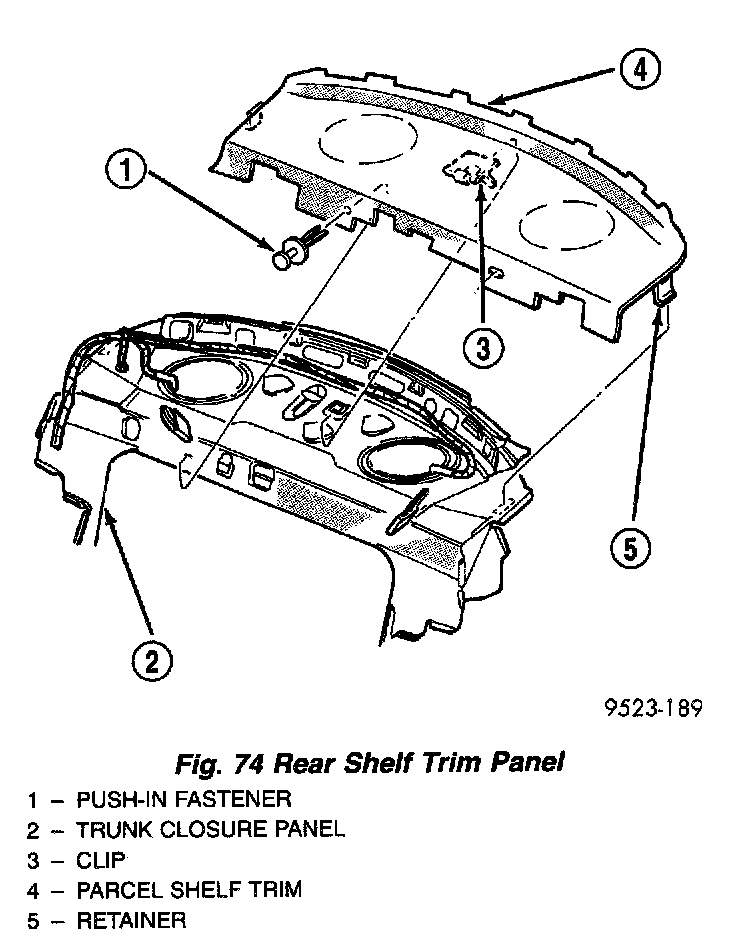

Fig. 74:
5. Remove push-in fastener attaching rear shelf trim to shelf panel (Fig. 74).
6. Pull trim forward to disengage clip attaching trim to shelf panel.
7. Remove shelf trim from vehicle.
INSTALLATION
1. Place rear shelf trim into position.
2. Push trim rearward to engage clip attaching rear shelf trim to shelf panel.
3. Install push-in fastener attaching rear shelf trim to shelf panel.
4. Install close out panel trim.
5. Install lock ring bezel.
6. Install rear seat cushion and back or close out panels.
7. Install upper quarter trim panels.
