Rear Door Trim Panel

REAR DOOR TRIM PANEL REMOVAL
1. Open rear door and open glass.

Fig. 20 Window Crank Removal Tool:

2. Remove window crank Window Crank
3. Remove screw cap from bottom of arm rest pull cup.






1. Door Panel
2. Latch release rod
3. Clip

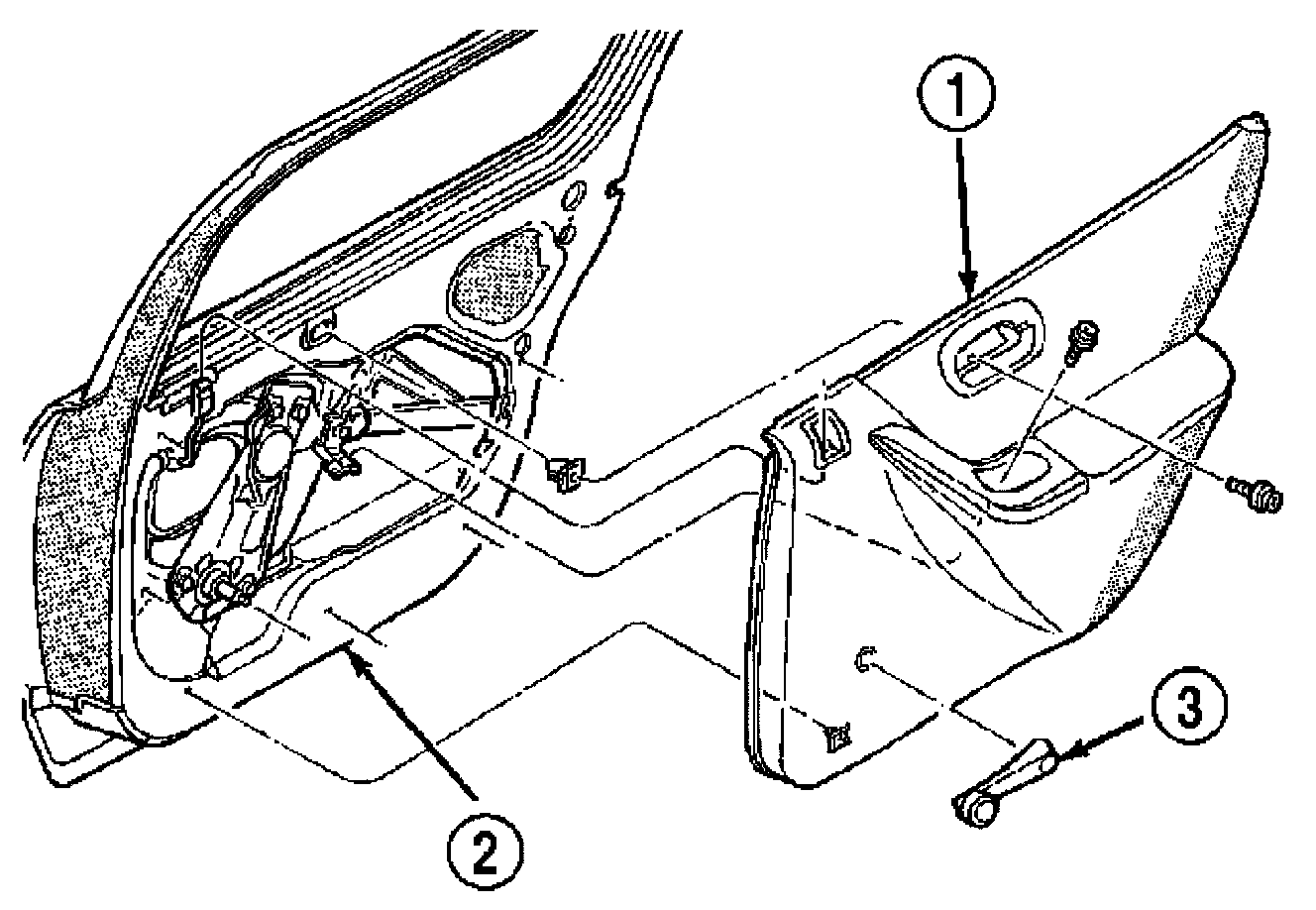

4. Remove screw from bottom of arm rest pull cup Door Trim Panel.
5. Remove screw cap from behind door latch handle.
6. Remove screw holding door latch handle to door.
7. Disengage clips holding perimeter of trim panel to rear door.
8. Remove trim panel from inner belt weatherstrip at top of door.
9. Remove top of trim panel from door.

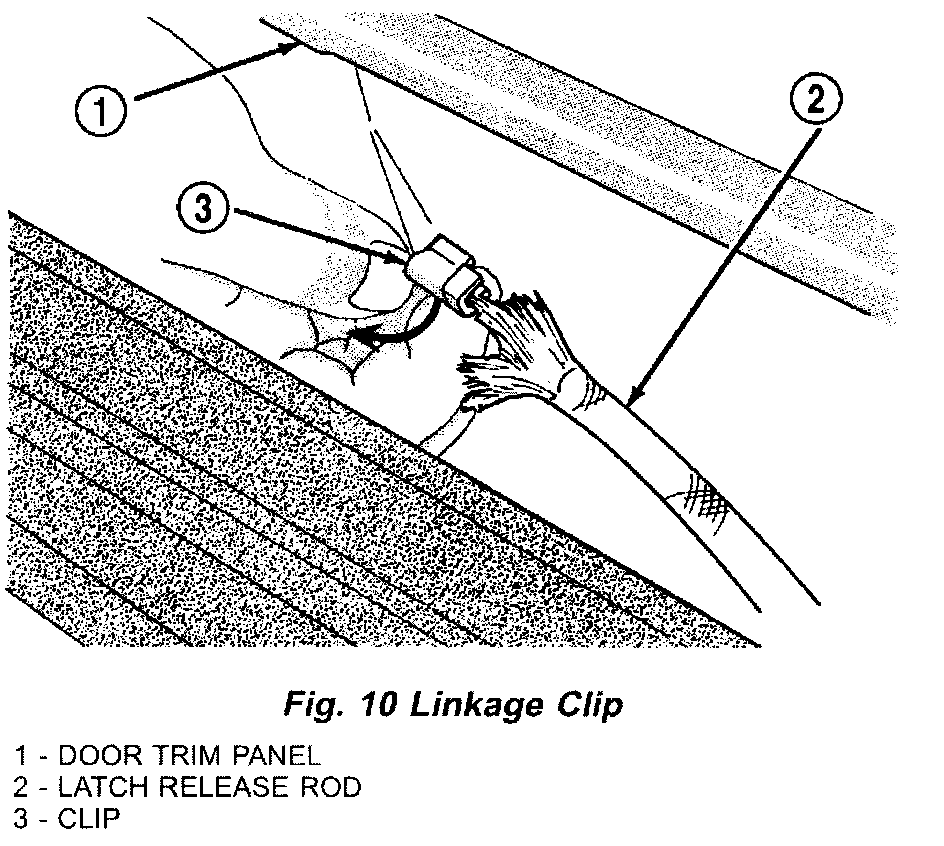

10. Disengage clip holding linkage to latch handle Linkage Clip.
11. Remove linkage from latch handle.
12. Lift trim up and off lock button.
13. Remove rear door trim panel from vehicle.

INSTALLATION
1. Position rear door trim panel on vehicle.
2. Connect linkage to latch handle.
3. Engage clip holding linkage to latch handle.
4. Engage trim panel from inner belt weatherstrip at top of door.
5. Engage clips attaching perimeter of trim panel to rear door.
6. Install screw holding door latch handle to door.
7. Install screw cap from behind door latch handle.
8. Install screw from bottom of arm rest pull cup.
9. Install screw cap from bottom of arm rest pull cup.
10. Install window crank.
