FLOOR CONSOLE

REMOVAL

1. Remove gear shift knob.

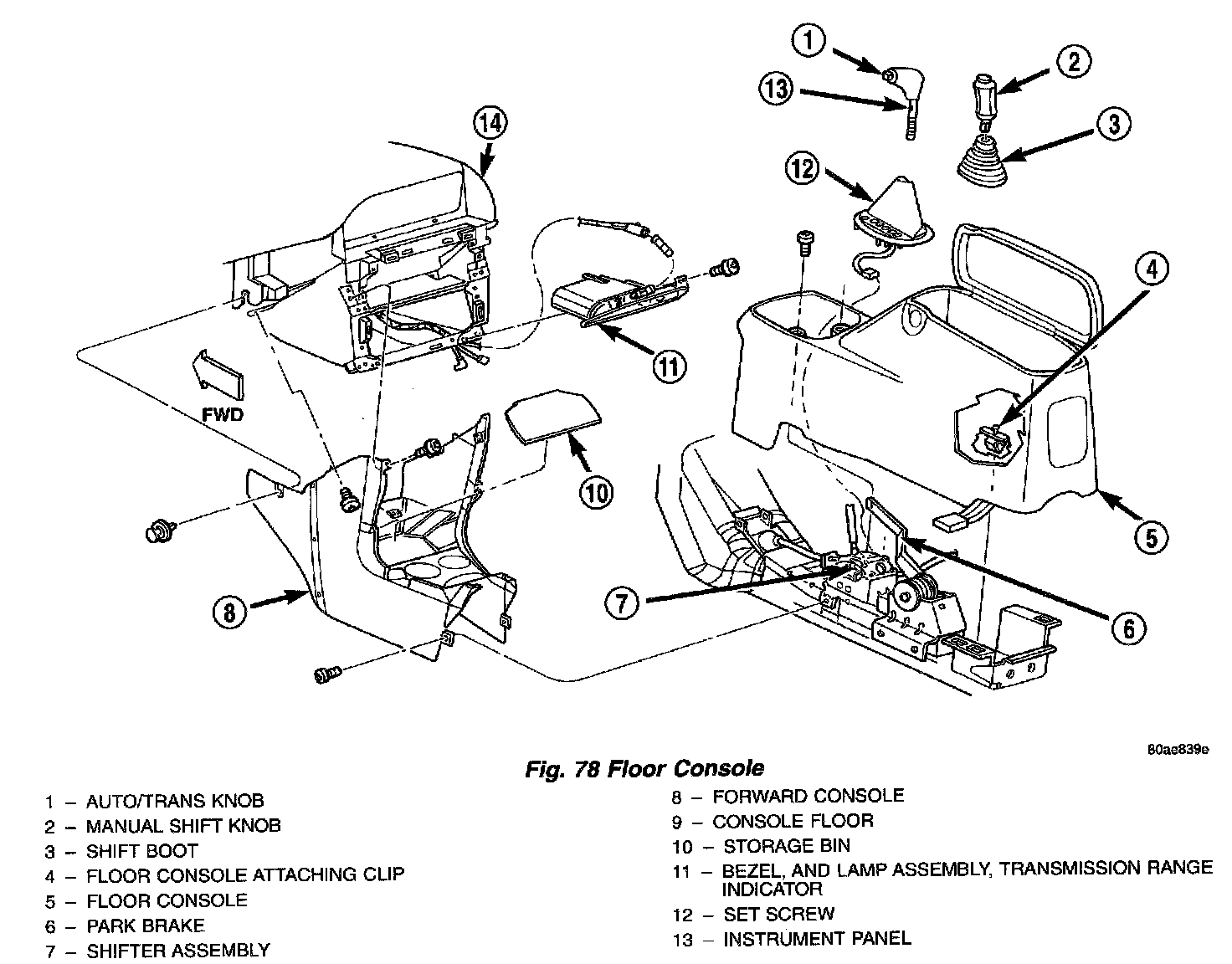

Fig. 78:

2. Remove transmission range indicator bezel from floor console (Fig. 78).
3. Disconnect the transmission range indicator bezel electrical connector from the wire harness.
4. Remove screws attaching the forward end of the console to shifter bracket.
5. Remove screws attaching rearward end of console to clips in floor bracket.
6. Fully engage parking brake
7. Pull floor console up off of the floor bracket.
8. Remove floor console from vehicle.

INSTALLATION

1. Fully engage parking brake.
2. Engage forward tabs on console into forward instrument panel console.
3. Locate the 4-way locator on the forward portion of console to shifter bracket.
4. Locate the 2-way locator on the rearward portion of console base into floor bracket hole.
5. Align rearward portion of the console to clips in the floor bracket.
6. Install screws, next to floor shifter and in console to shifter bracket.
7. Install electrical connector between the transmission range indicator bezel and wire harness.
8. Install the transmission range indicator bezel into console.
9. Install gear shift knob.
