Grille: Service and Repair

GRILLE - CIRRUS

REMOVAL

1. Remove front bumper fascia.
2. Using a suitable drill, remove rivets attaching grille to front fascia.

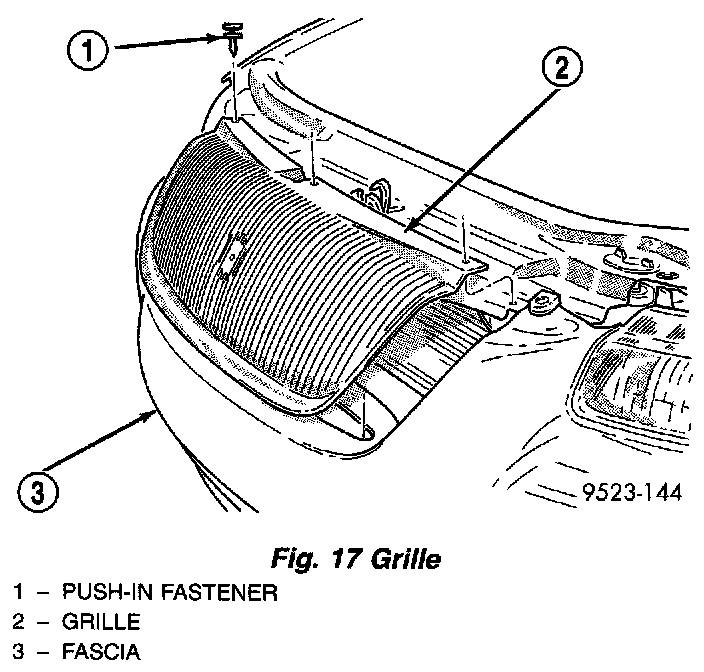

Fig. 17:

3. Remove grille from fascia (Fig. 17).

INSTALLATION

1. Install grille into fascia.
2. Using a suitable drill, install rivets attaching grille to front fascia.
3. Install front bumper fascia.
