Trunk / Liftgate Latch: Service and Repair

DECKLID LATCH

REMOVAL

1. Open decklid.

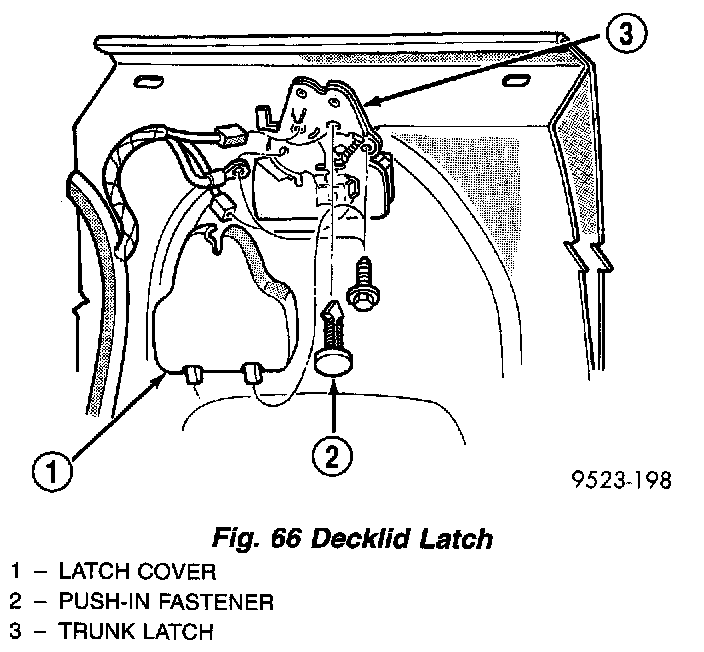

Fig. 66:

2. Disconnect clips attaching latch cover to decklid (Fig. 66).
3. Disconnect wire connectors from decklid latch.
4. Remove bolts attaching decklid latch to decklid.
5. Remove decklid latch from decklid.

INSTALLATION

1. Install decklid latch to decklid.
2. Install bolts attaching decklid latch to decklid.
3. Connect wire connectors to decklid latch.
4. Connect clips attaching latch cover to decklid.
5. Close decklid.
