Hood Stop: Service and Repair

HOOD ADJUSTER BUMPER

REMOVAL

1. Release hood latch and open hood.
2. Rotate hood bumper counterclockwise.

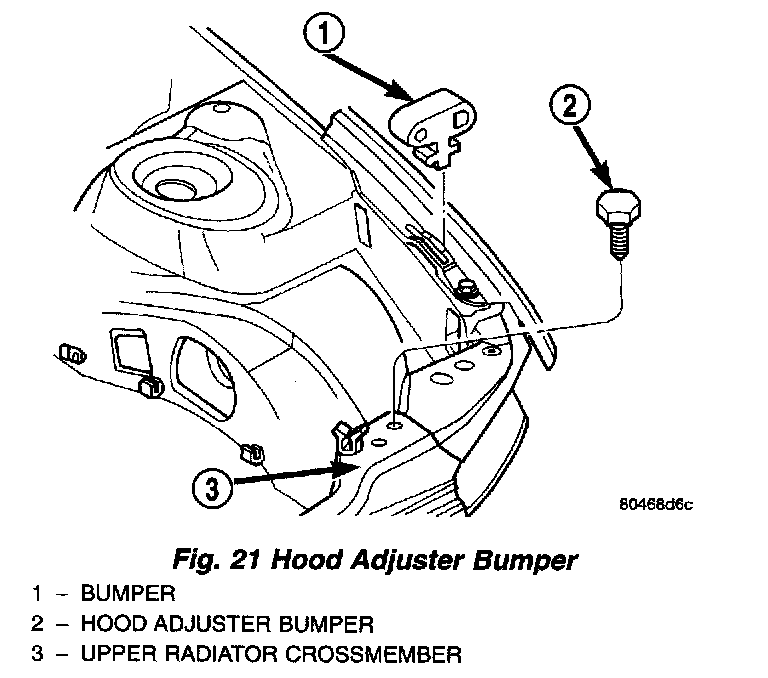

Fig. 21:

3. Remove hood bumper from radiator closure panel (Fig. 21).

INSTALLATION

1. Start hood bumper into radiator closure panel
2. Rotate hood bumper clockwise. Adjust hood slam bumper to achieve a hood height that is flush across the gaps to the fenders.
3. Close hood.
