Hood Shock / Support: Service and Repair

HOOD PROP-ROD

REMOVAL

1. Release hood latch and open hood.

CAUTION: Do not place prop-rod or substitute against outer hood panel, damage to exterior finish will result.

2. Using a length of wooden dowel rod, prop hood open.

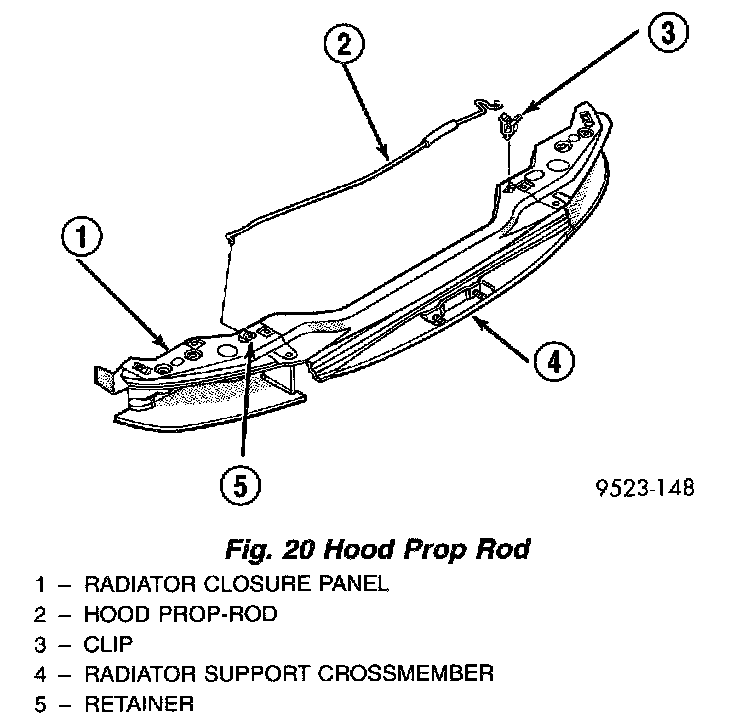

Fig. 20:

3. Disengage prop-rod from retainer holding prop-rod to radiator closure panel (Fig. 20).
4. Separate prop-rod from vehicle.

INSTALLATION

1. Position prop-rod to vehicle.
2. Engage prop-rod to retainer holding prop-rod to radiator closure panel.
