REAR DOOR

REMOVAL
1. Open and support door on a suitable lifting device.
2. Disengage wire connector at hinge pillar.
3. Remove bolts holding door check strap to B-pillar.

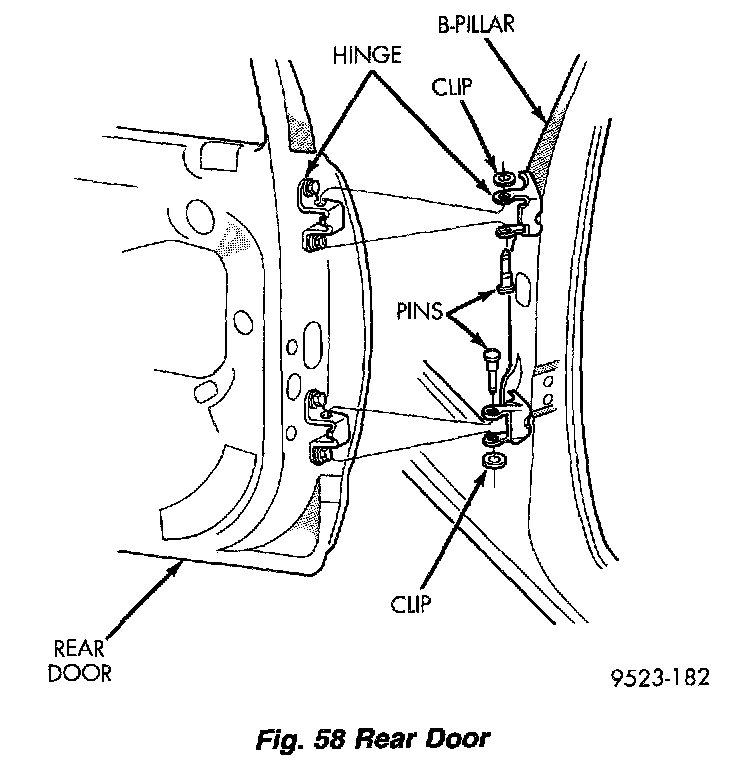

Fig. 58 Rear Door:

4. Remove clip holding hinge pin in lower door hinge.
5. Remove pin from lower hinge.
6. Remove clip holding hinge pin in upper hinge.
7. Remove pin from upper hinge.
8. Remove door from vehicle.

INSTALLATION
1. Place door into position.
2. Install pin to upper hinge.
3. Install clip attaching hinge pin in upper hinge.
4. Install pin to lower hinge.
5. Install clip attaching hinge pin in lower door hinge.
6. Install bolts attaching door check strap to B-pillar.
7. Connect wire connector at hinge pillar.
8. Check door for alignment.
