Rear Door Limiter: Service and Repair

REAR DOOR CHECK STRAP

REMOVAL

1. Remove rear door trim panel.
2. Remove bolt attaching check strap to hinge pillar.

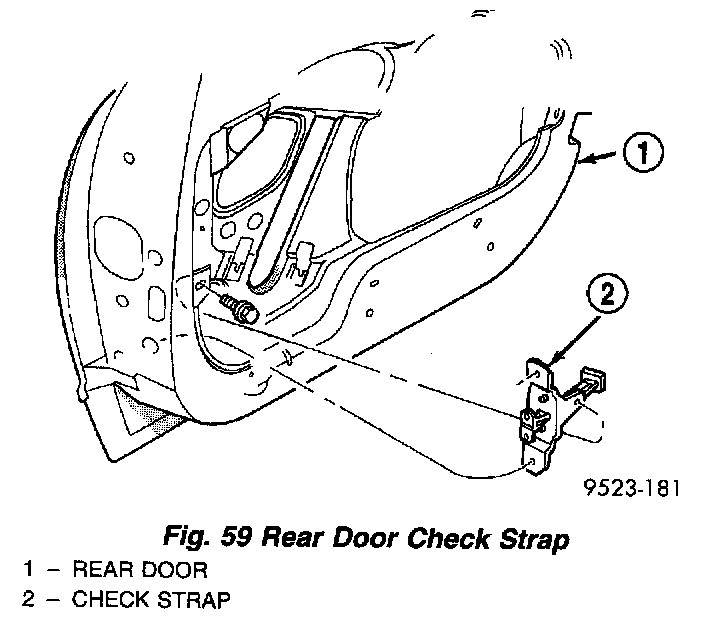

Fig. 59:

3. Remove bolt attaching check strap to inner door panel (Fig. 59).
4. Remove bolts attaching check strap to door end frame.
5. Remove check strap from vehicle.

INSTALLATION

1. Place check strap into position.
2. Install bolts attaching check strap to door end frame.
3. Install bolt attaching check strap to inner door panel.
4. Install bolt attaching check strap to hinge pillar.
5. Install rear door trim panel.
