Rear Door Latch: Service and Repair
REAR DOOR LATCHREMOVAL
1. Remove rear door trim panel.
2. Close door glass.
3. Remove lower rear run channel.
4. Disengage clips attaching linkage rods to door latch.

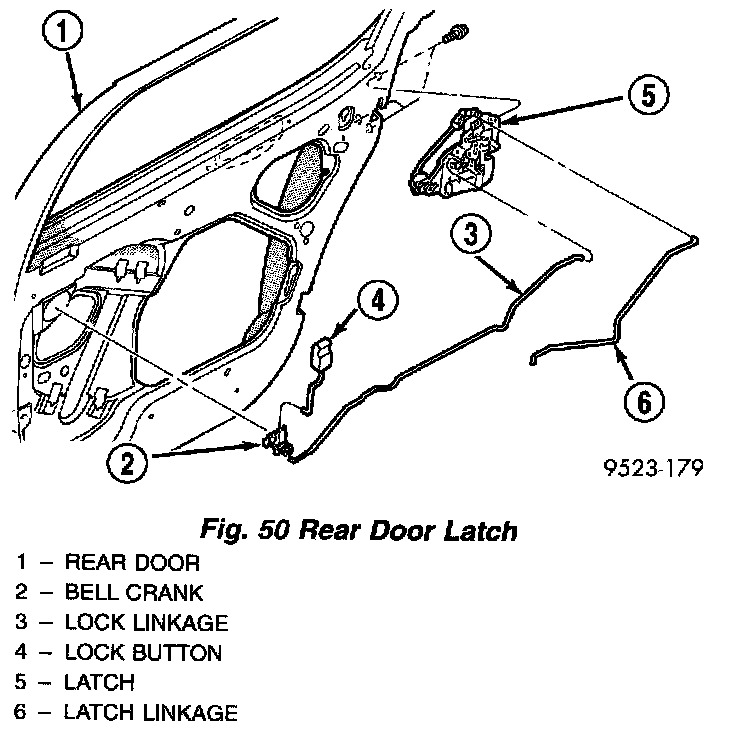

Fig. 50:
5. Remove linkage rods from latch (Fig. 50).
6. Remove screws attaching latch to door end frame.
7. Remove latch from door.
INSTALLATION
CAUTION: DO not close door before adjusting the door latch, door may fail to open.
1. Place rear door latch into position.
2. Install screws attaching latch to door end frame.
3. Install linkage rods from latch.
4. Engage clips attaching linkage rods to door latch.
5. Install lower rear run channel.
6. Open door glass.
7. Install rear door trim panel.
