Procedures

FRONT DOOR

REMOVAL
1. Open and support door on a suitable lifting device.
2. Disengage wire connector at hinge pillar.
3. Remove bolts holding door check strap to hinge pillar.

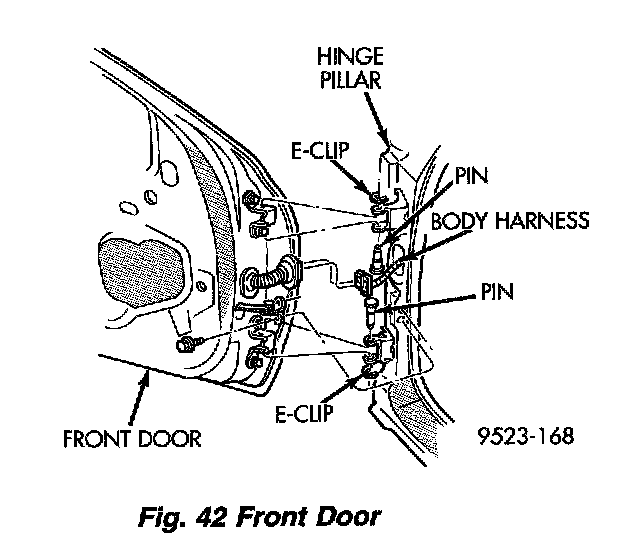

Fig. 42 Front Door:

4. Remove clip holding hinge pin in lower door hinge.
5. Remove pin from lower hinge.
6. Remove clip holding hinge pin in upper hinge.
7. Remove pin from upper hinge.
8. Separate door from vehicle.

INSTALLATION
1. Position door on vehicle.
2. Install pin in upper hinge.
3. Install clip holding hinge pin in upper hinge.
4. Install pin in lower hinge.
5. Install clip holding hinge pin in lower door hinge.
6. Install bolts holding door check strap to hinge pillar.
7. Engage wire connector at hinge pillar.
8. Verify door fit and operation. Adjust as necessary.
