Front Bumper Cover / Fascia: Service and Repair

FRONT BUMPER FASCIA

REMOVAL

1. Release hood latch and open hood.
2. Remove front wheel house splash shields as necessary to gain assess to fascia fasteners.
3. Remove fasteners attaching bottom of fascia to radiator closure panel.
4. Disengage fog lamp wire connector from body harness, if equipped.

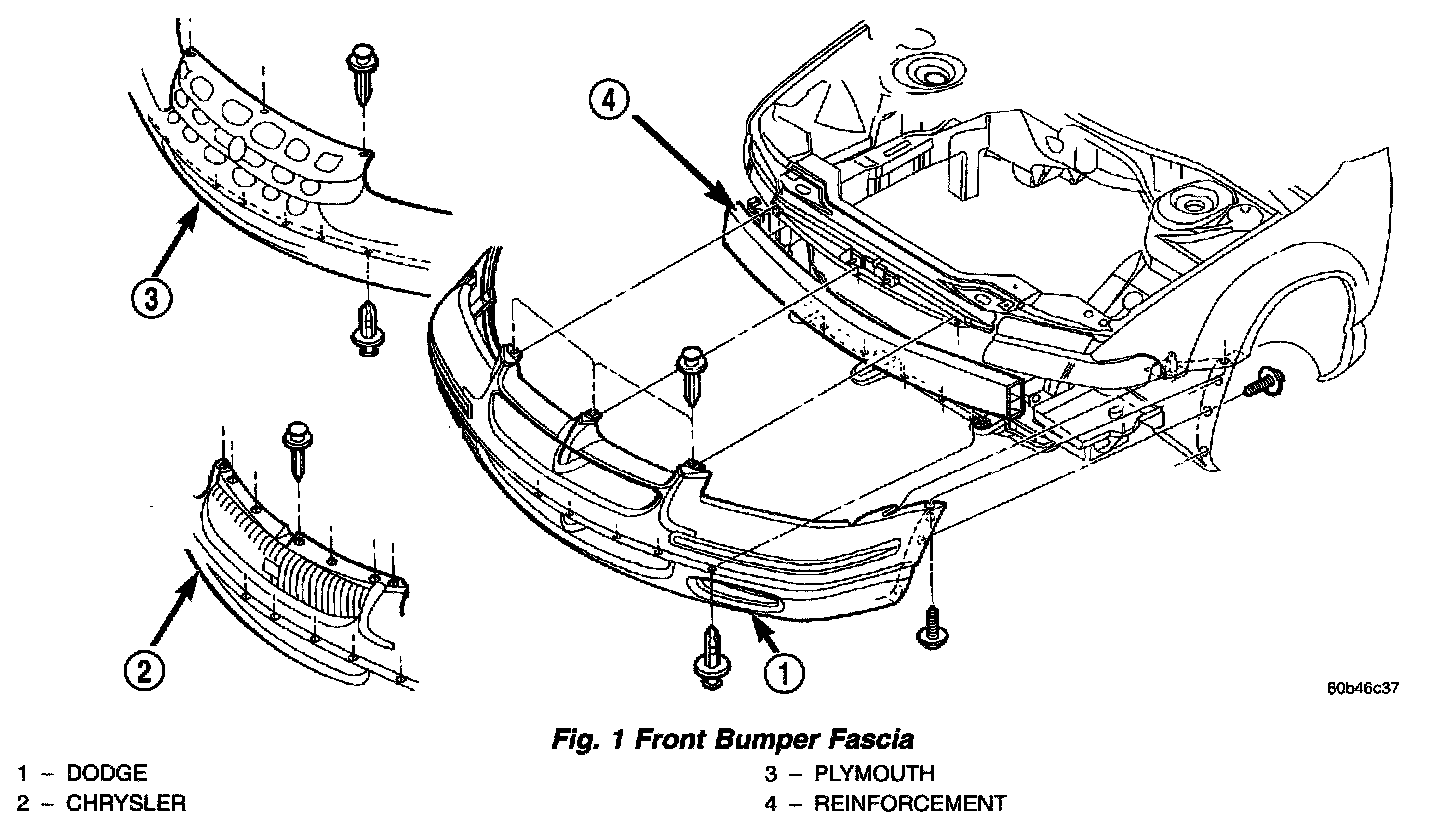

Fig. 1:

5. Remove fasteners attaching fascia to front fenders. (Fig.1)
6. Remove fascia from vehicle.

INSTALLATION

1. Place fascia on position on vehicle.
2. Install fasteners attaching fascia to front fenders.
3. Engage fog lamp wire connector to body wire harness, if equipped.
4. Install fasteners to hold bottom of fascia to radiator closure panel.
5. Install front wheel house splash shields.
