Rear Speaker Replacement

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

The wire connectors can be accessed through the trunk.

REMOVAL
1. Disconnect and isolate the battery negative remote cable.
2. Remove parcel shelf panel.

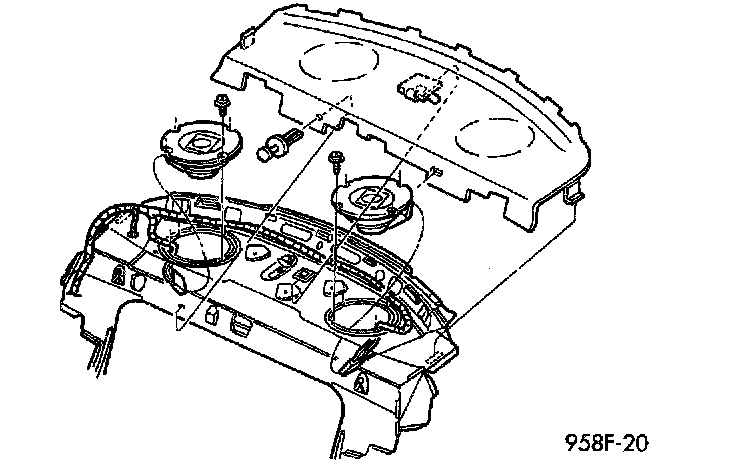

Rear Speakers-Typical:

3. Remove four retaining screws.
4. Disconnect wire connector and remove speaker.

INSTALLATION
For installation, reverse the above procedures. Be sure that the wire connectors are facing outward in vehicle.
