Door Mounted Speaker Replacement

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

REMOVAL
1. Disconnect and isolate the battery negative remote cable.

Door Mounted Speaker:

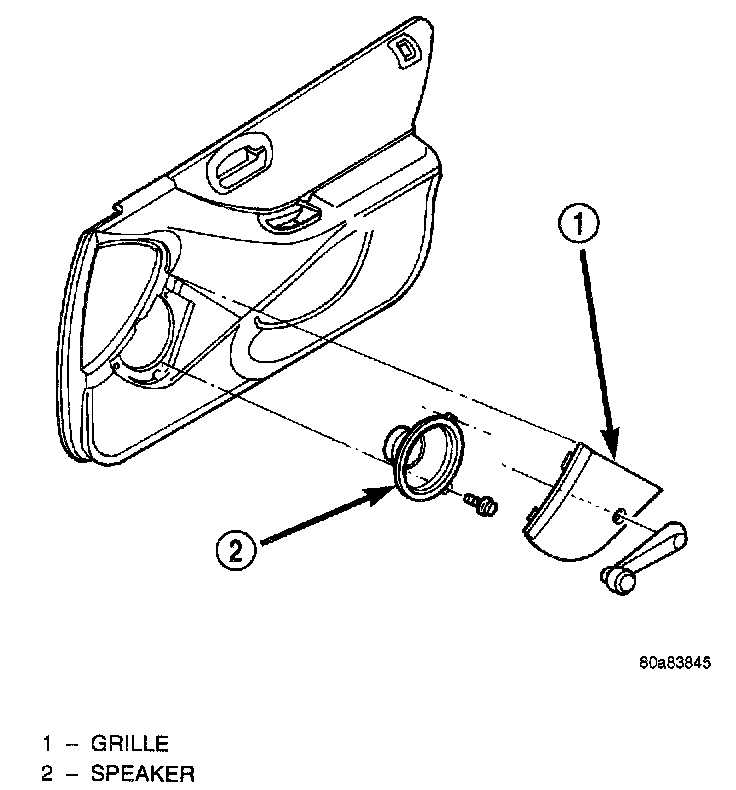

2. Remove window crank handle if equipped. Carefully, pry speaker grille away from door trim panel. Start from rear most end of speaker grille.
3. Remove three speaker retaining screws.
4. Pull speaker away from door and disconnect wiring.

INSTALLATION
For installation, reverse the above procedures. Ensure speaker is in the proper position
