Audio Diagnostic Test Procedures

CAUTION: The CD player is designed to operate between approximate temperatures of -23 °C and +65 °C (-10 °F and +145 °F).

Whenever a radio malfunction occurs;
1. First check FUSES in the Fuse Block:
a. Fuse 5, Memory feed and the Power Antenna (if equipped)
b. Fuse 7, Illumination
c. Fuse 8, Power Amplifier
d. Fuse 14, Ignition feed

NOTE: The vehicles are shipped with the INTERIOR LAMP and RADIO MEMORY fuse disconnected.

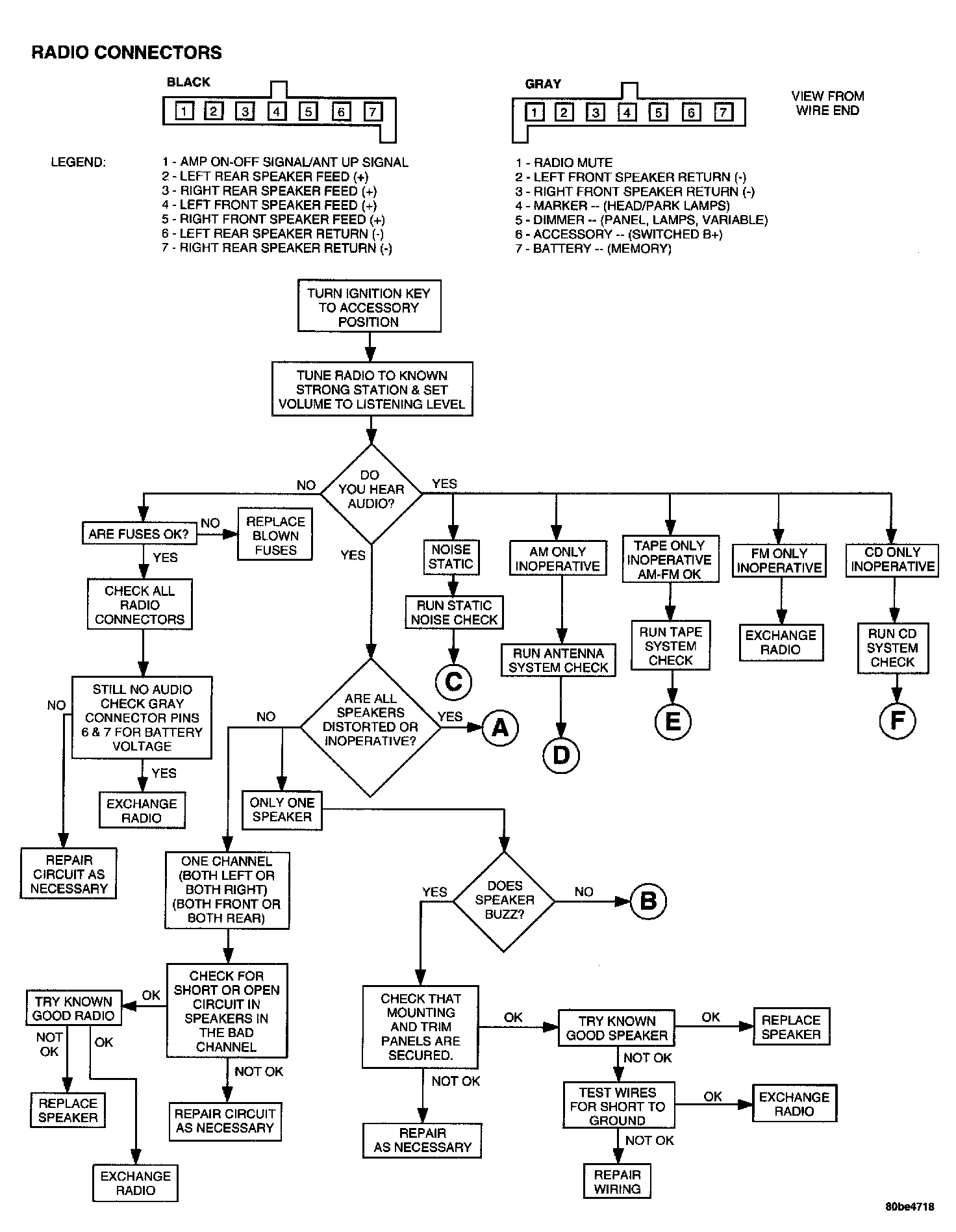

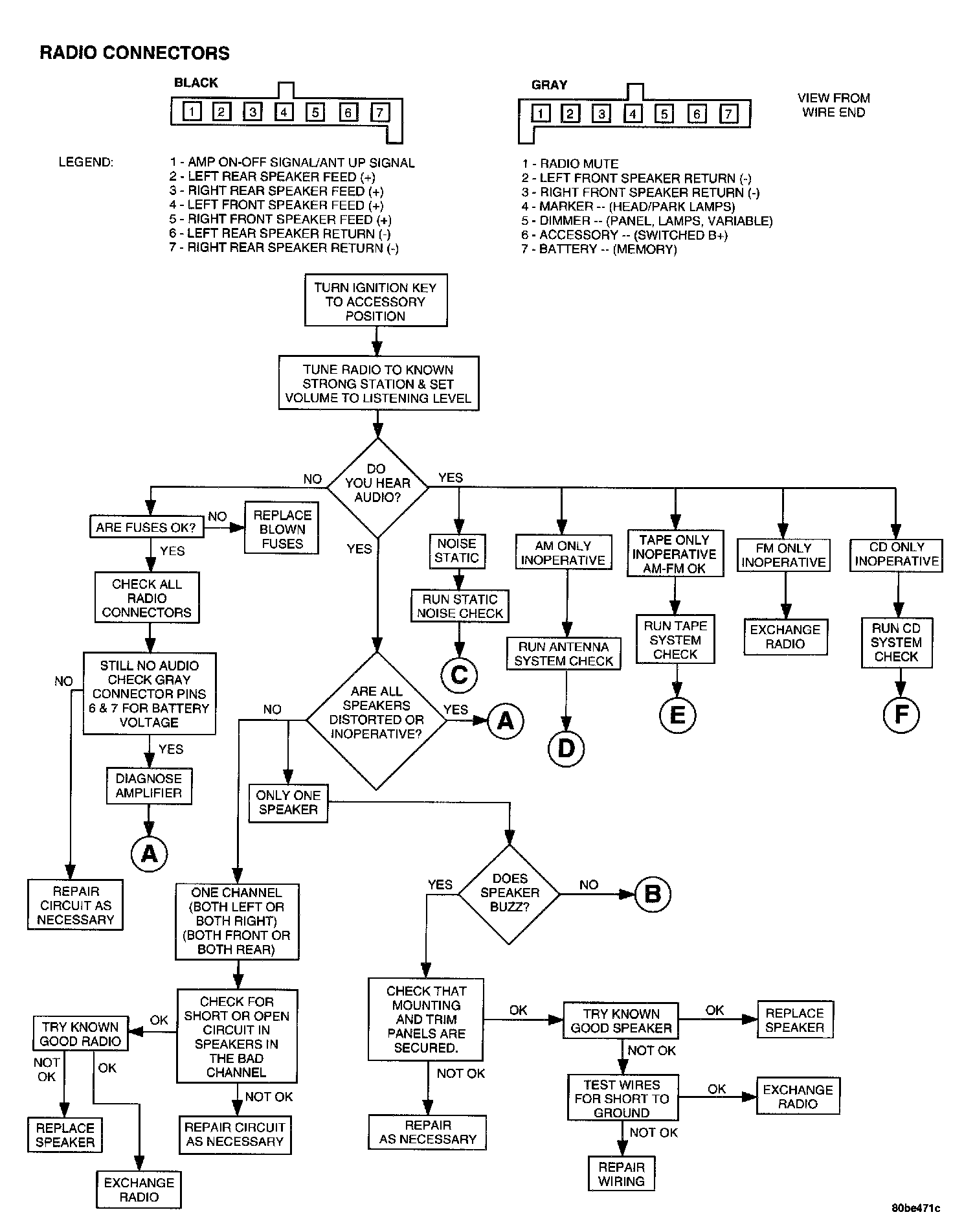

Standard System (Part 1 Of 4):

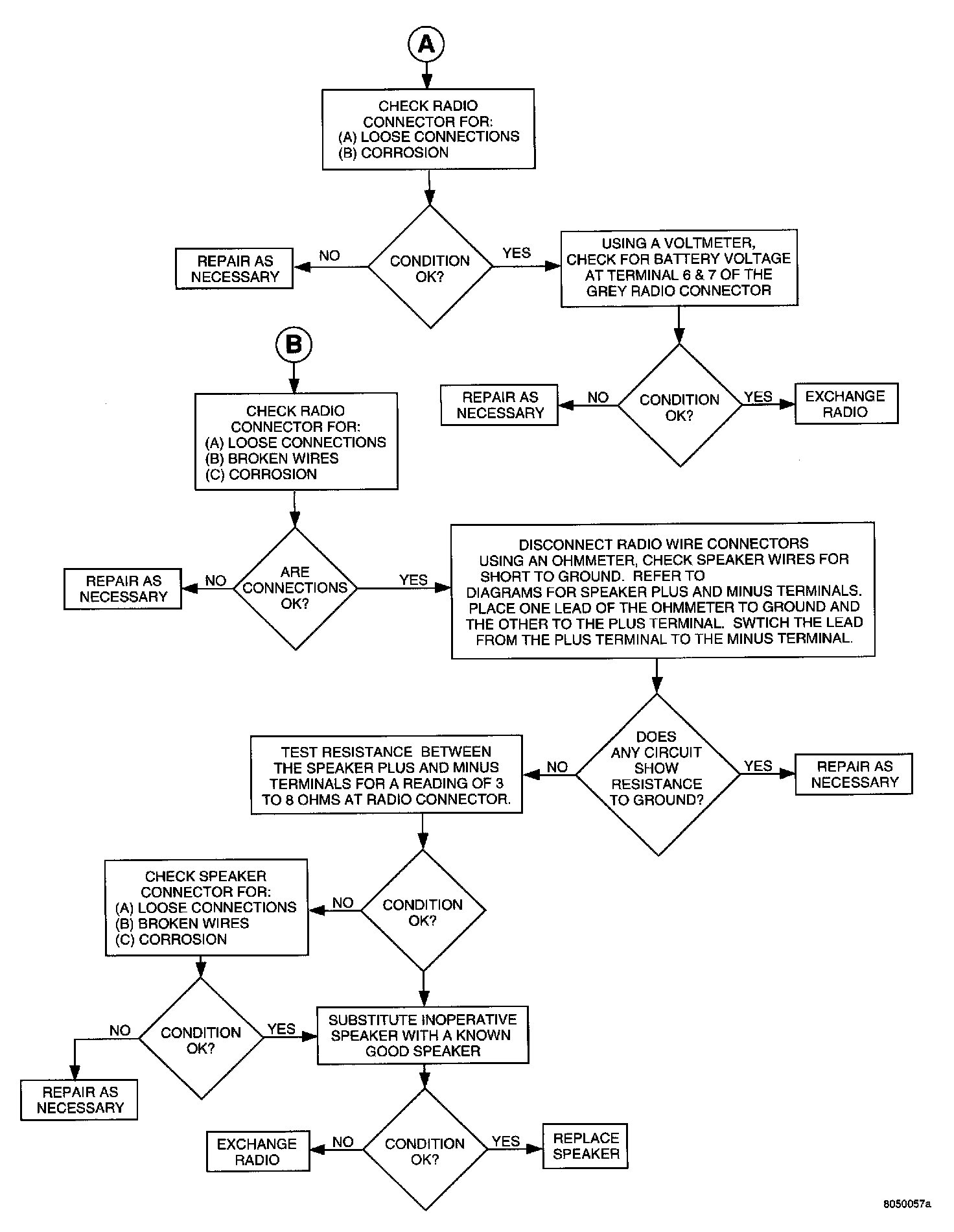

Standard System (Part 2 Of 4):

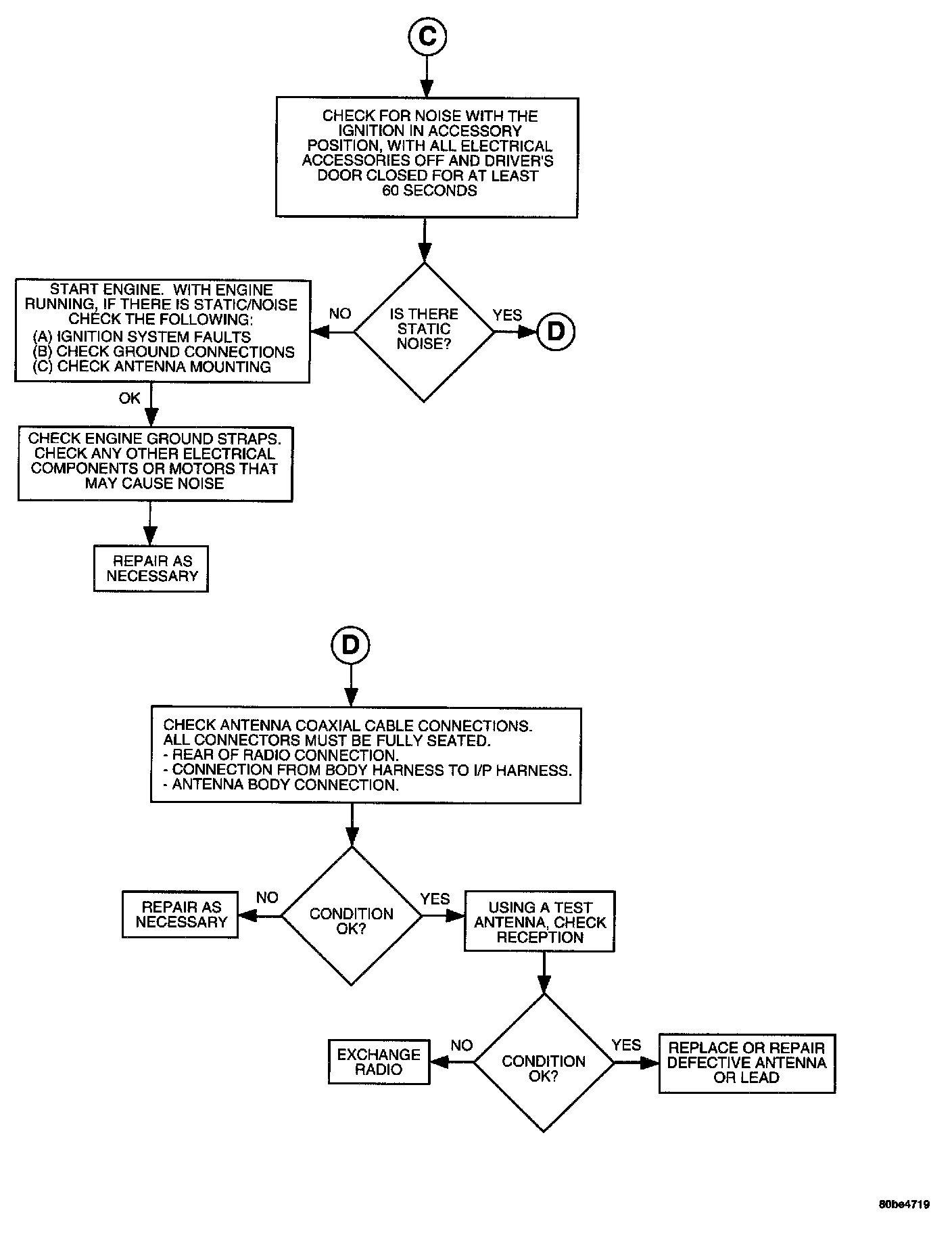

Standard System (Part 3 Of 4):

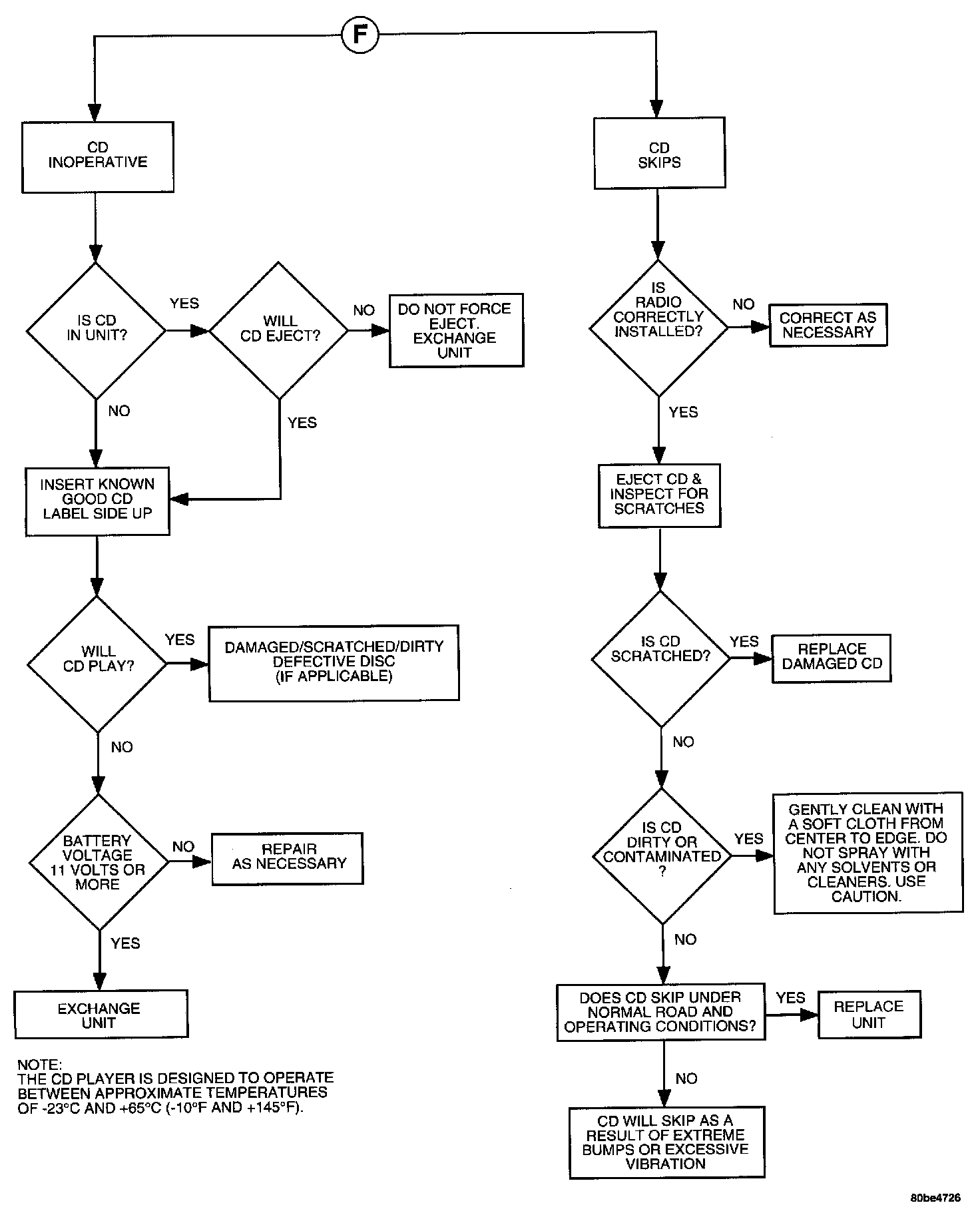

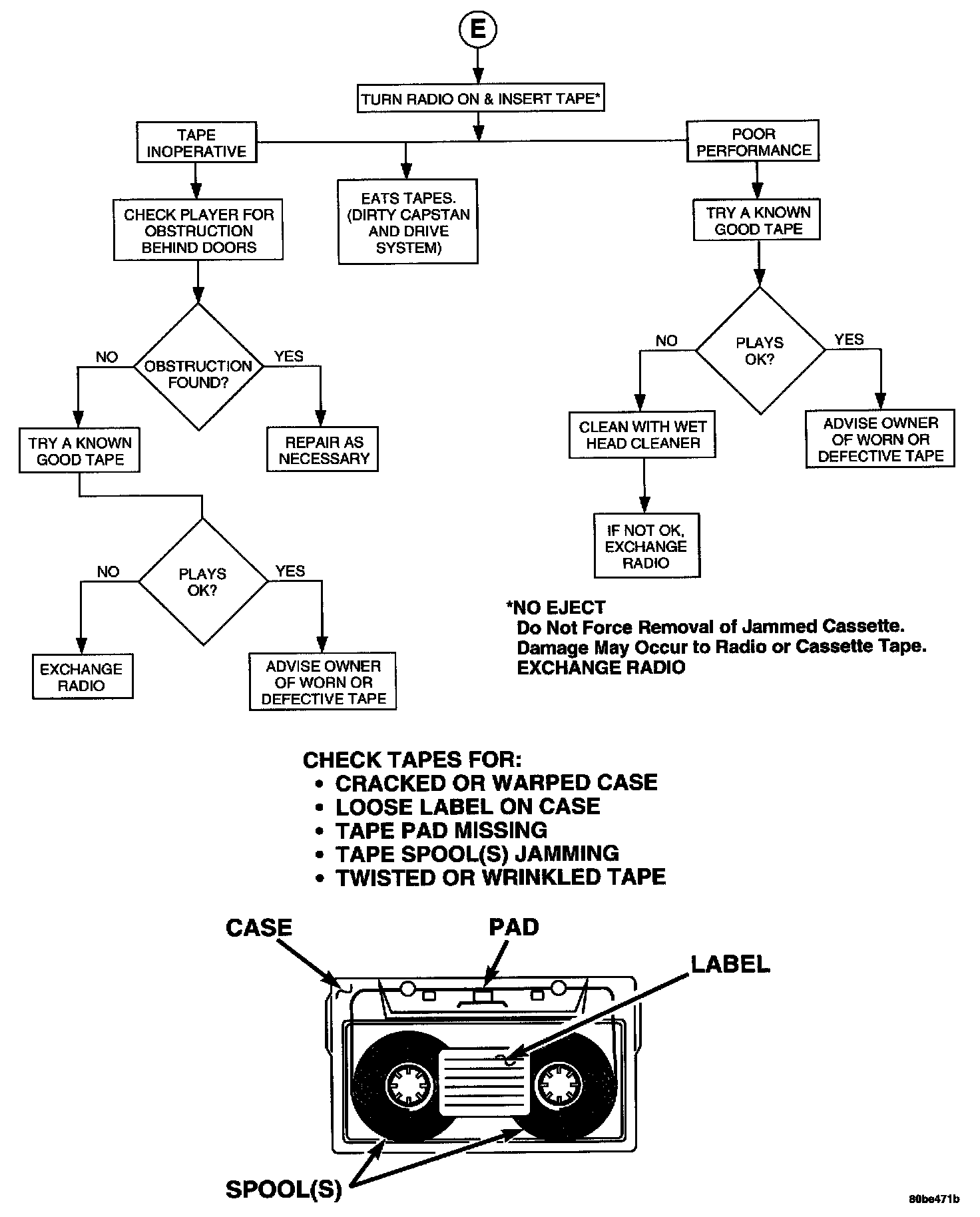

Standard System (Part 4 Of 4):

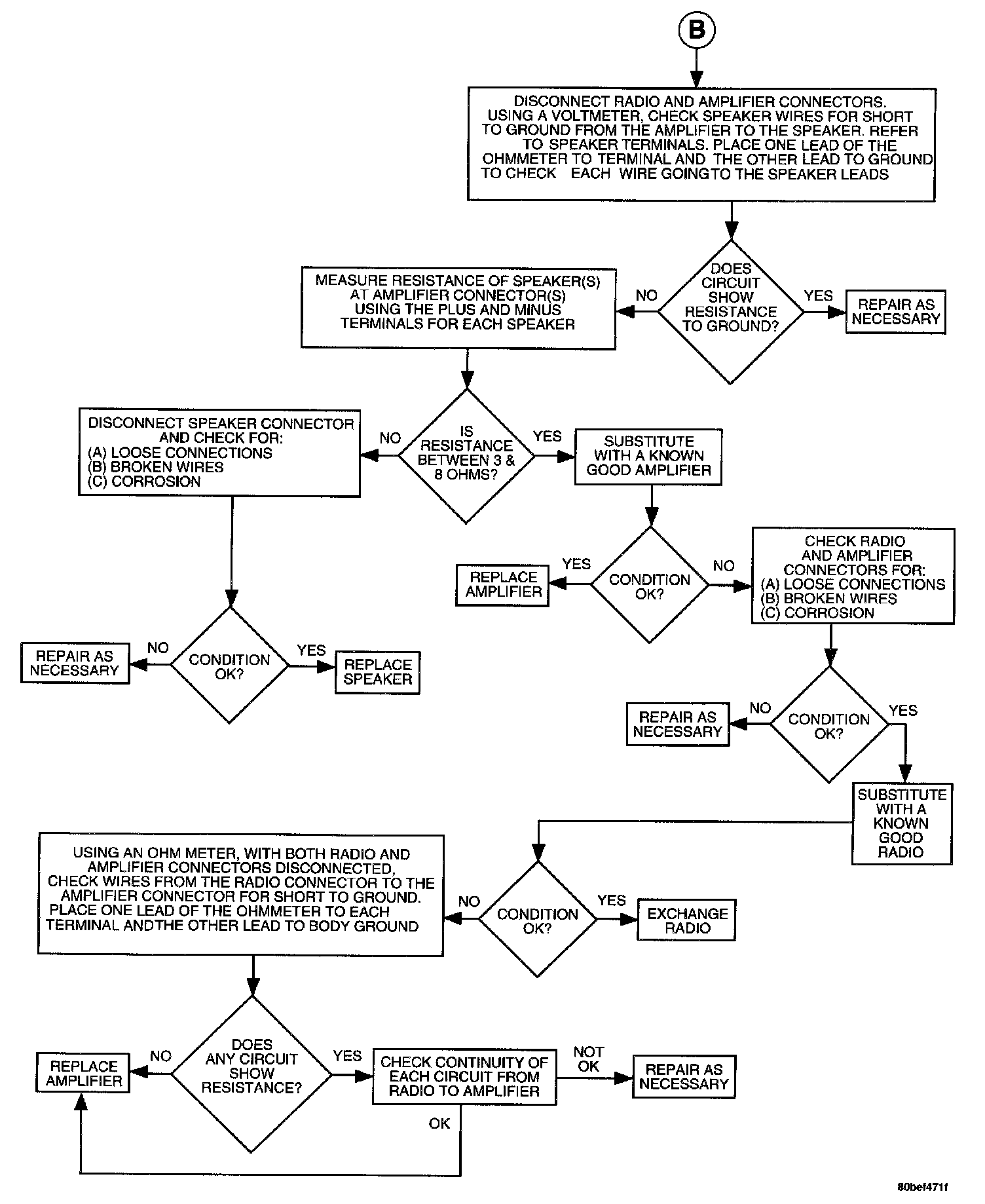

Infinity Amplified System (Part 1 Of 6):

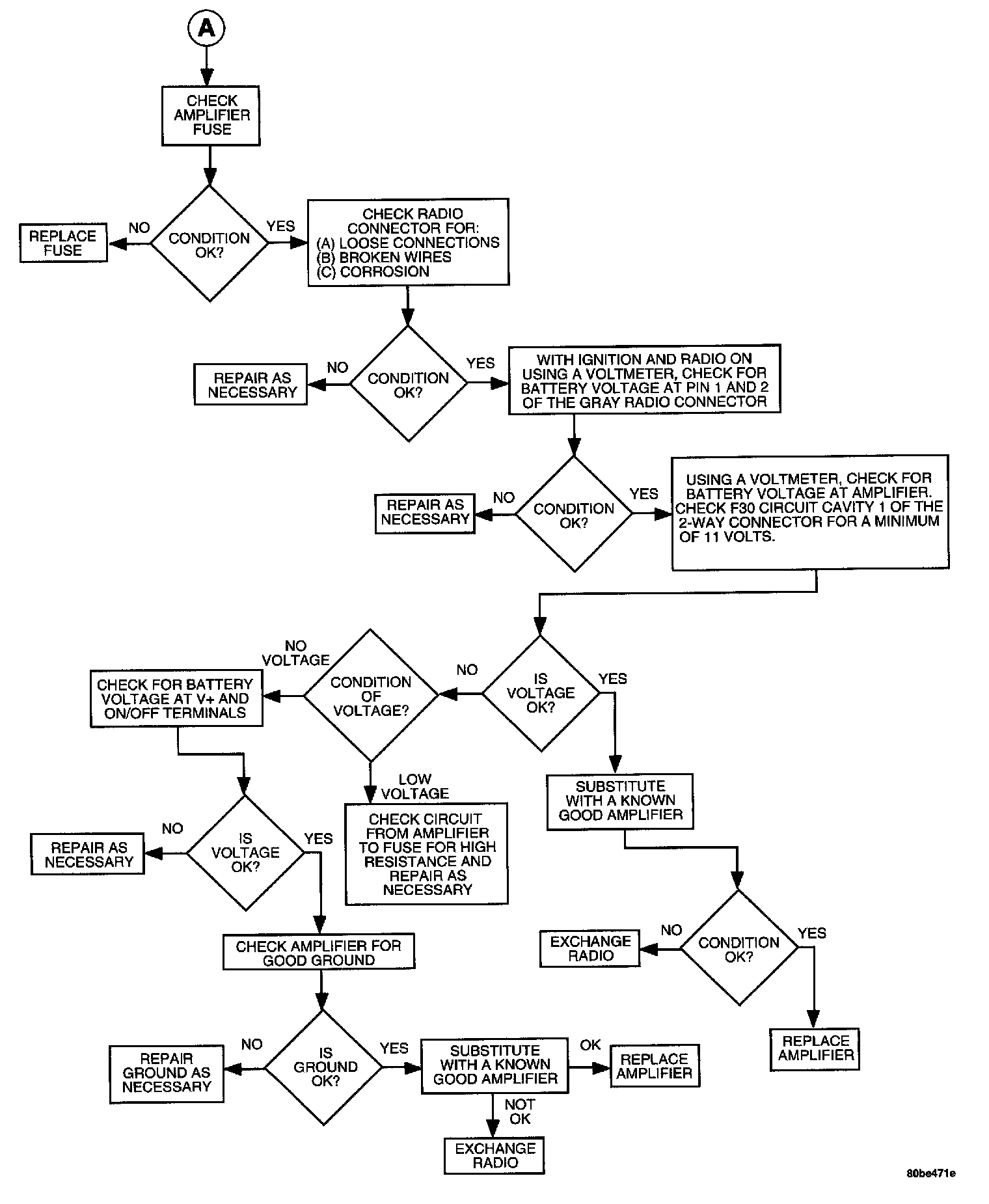

Infinity Amplified System (Part 2 Of 6):

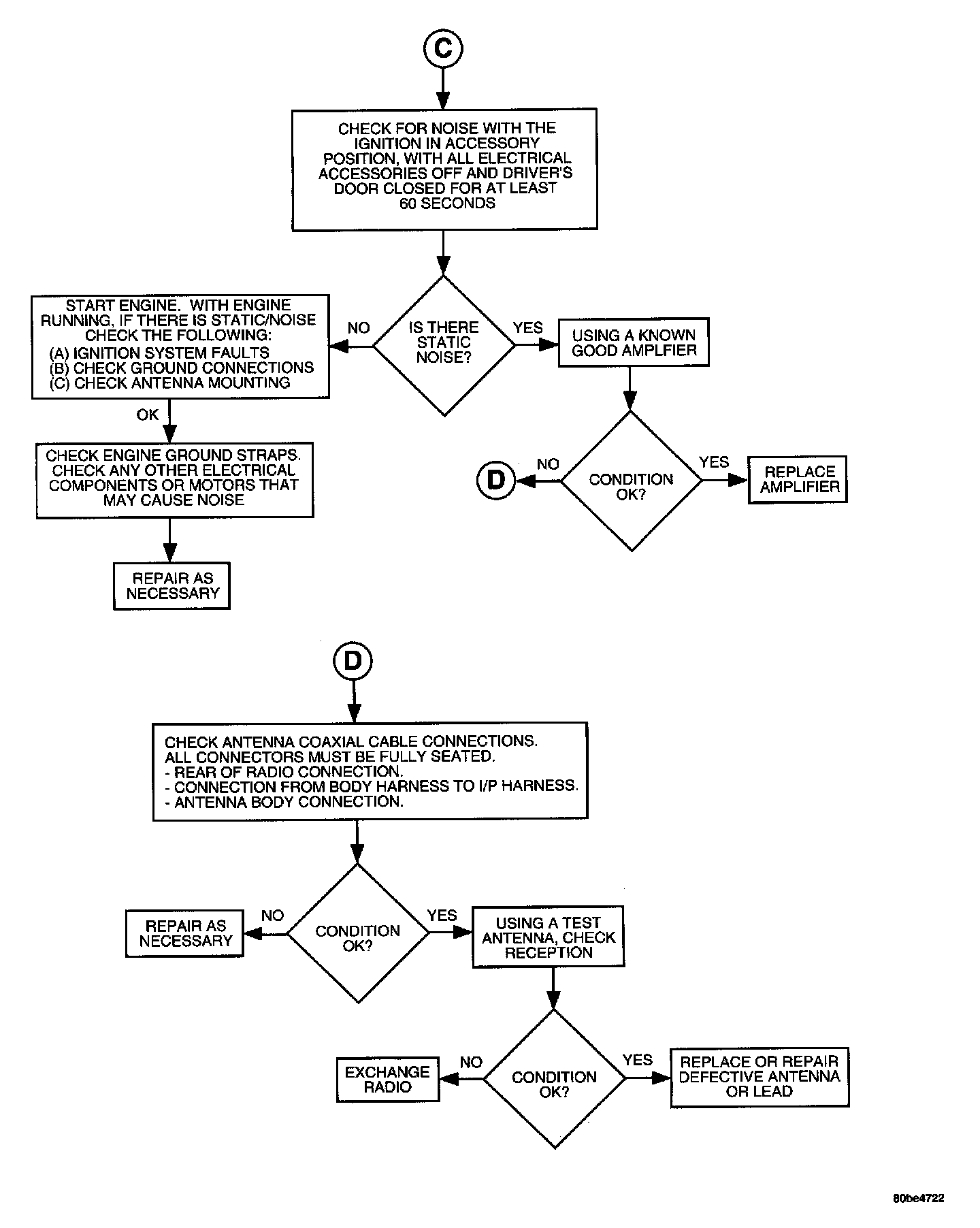

Infinity Amplified System (Part 3 Of 6):

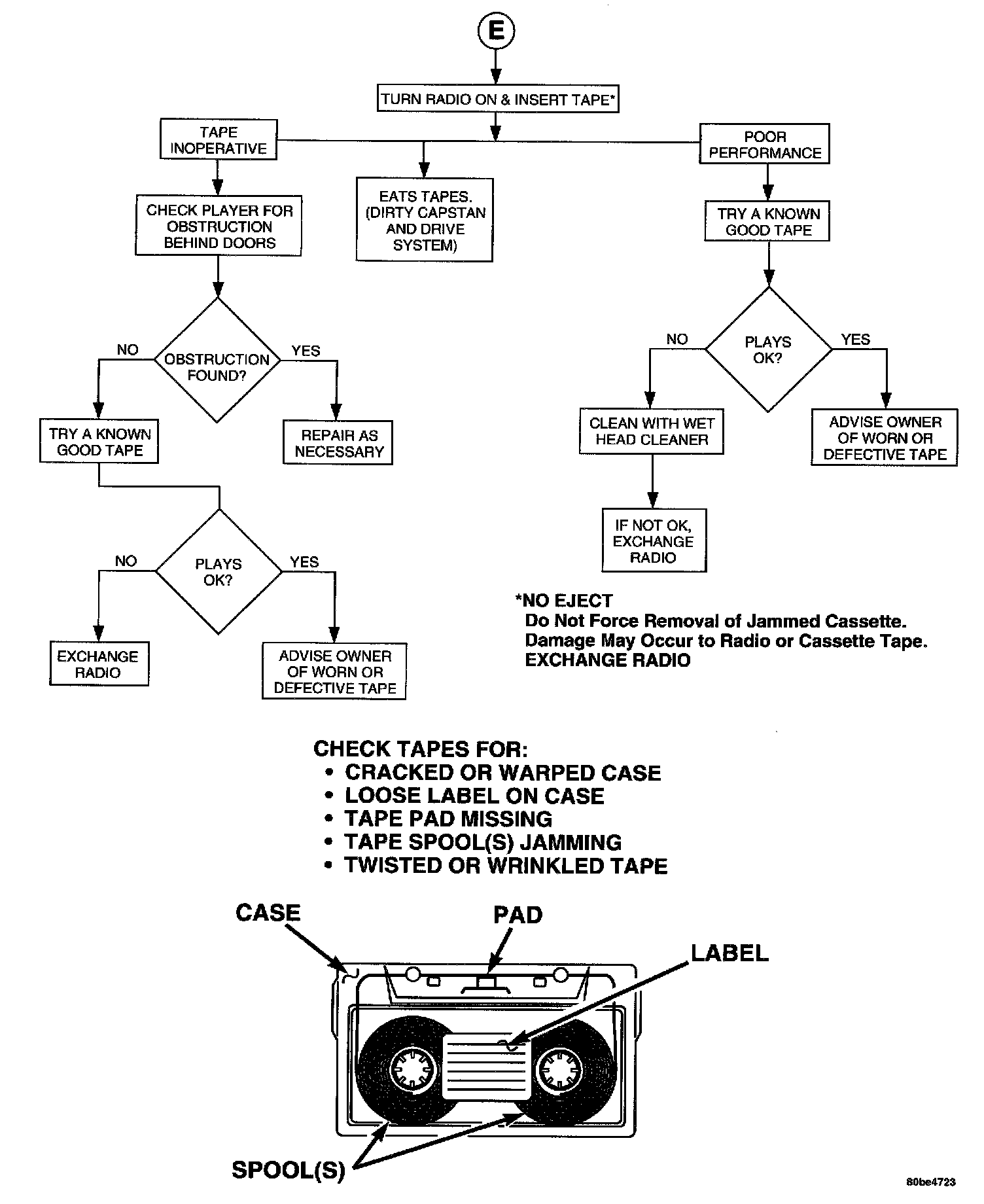

Infinity Amplified System (Part 4 Of 6):

Infinity Amplified System (Part 5 Of 6):

Infinity Amplified System (Part 6 Of 6):

2. Verify, the radio wire harness is properly connected before starting normal diagnosis and repair procedures. Refer to Audio Diagnostic Charts.
