P1797

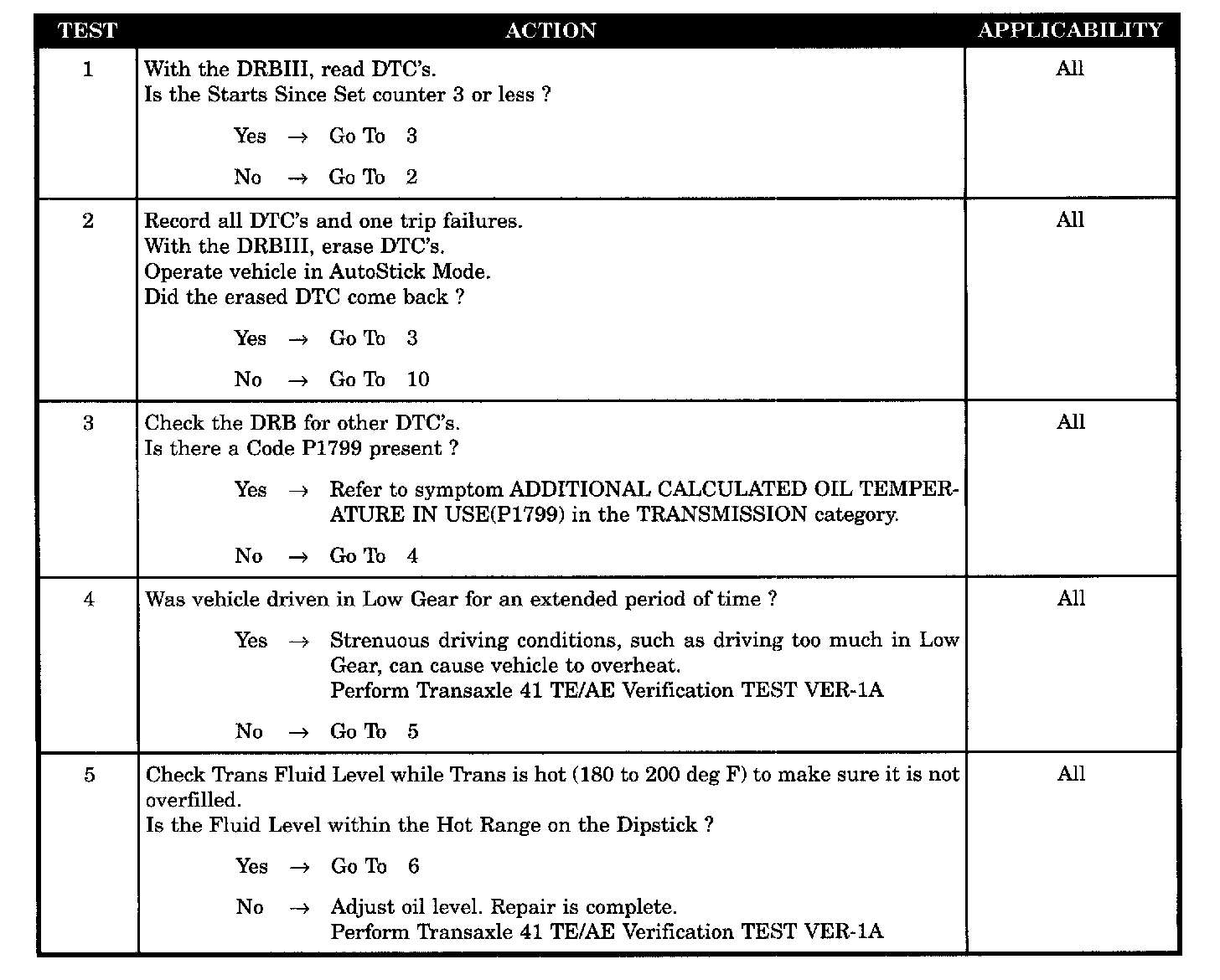

Test 1 Through 5:

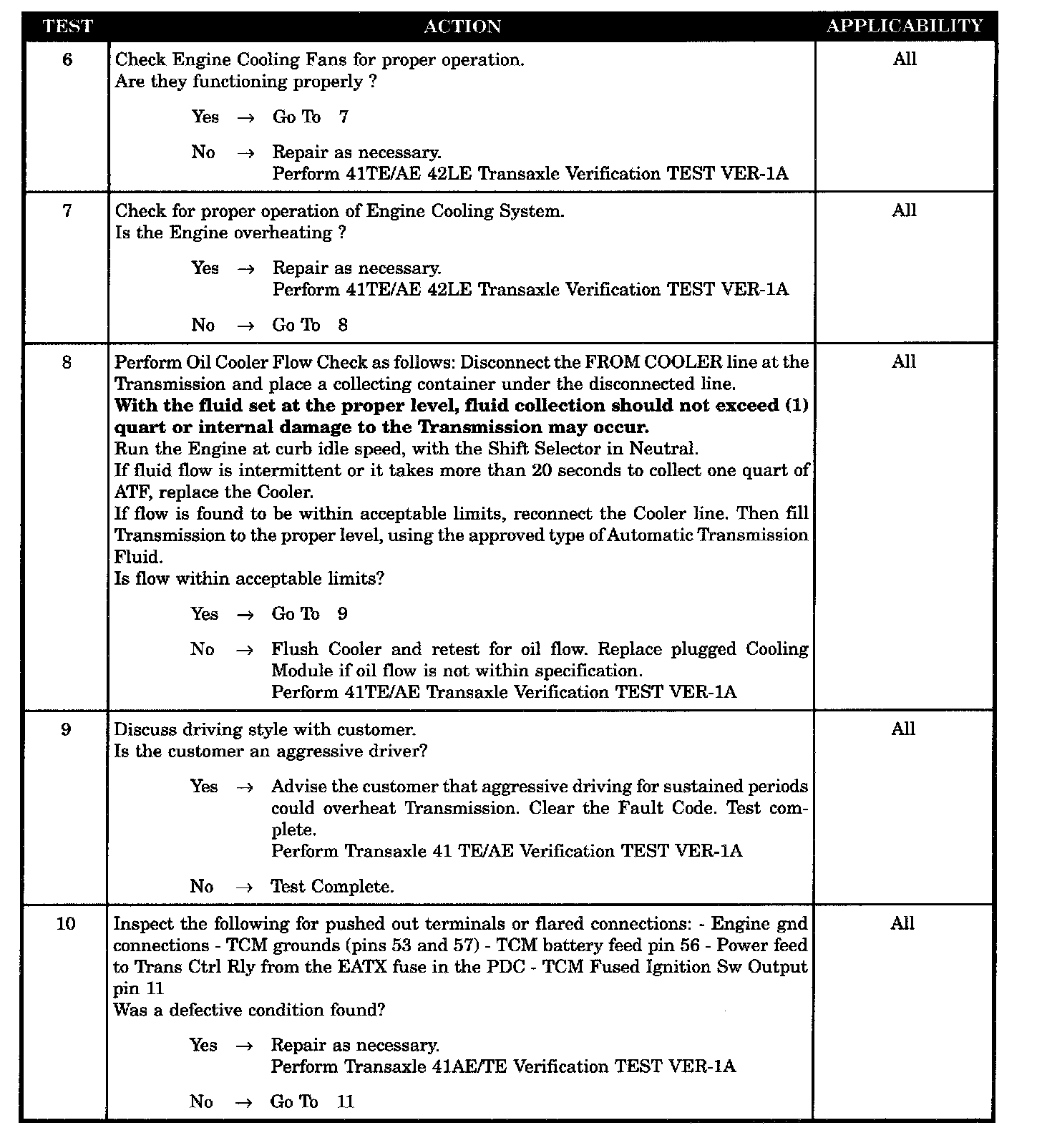

Test 6 Through 10:

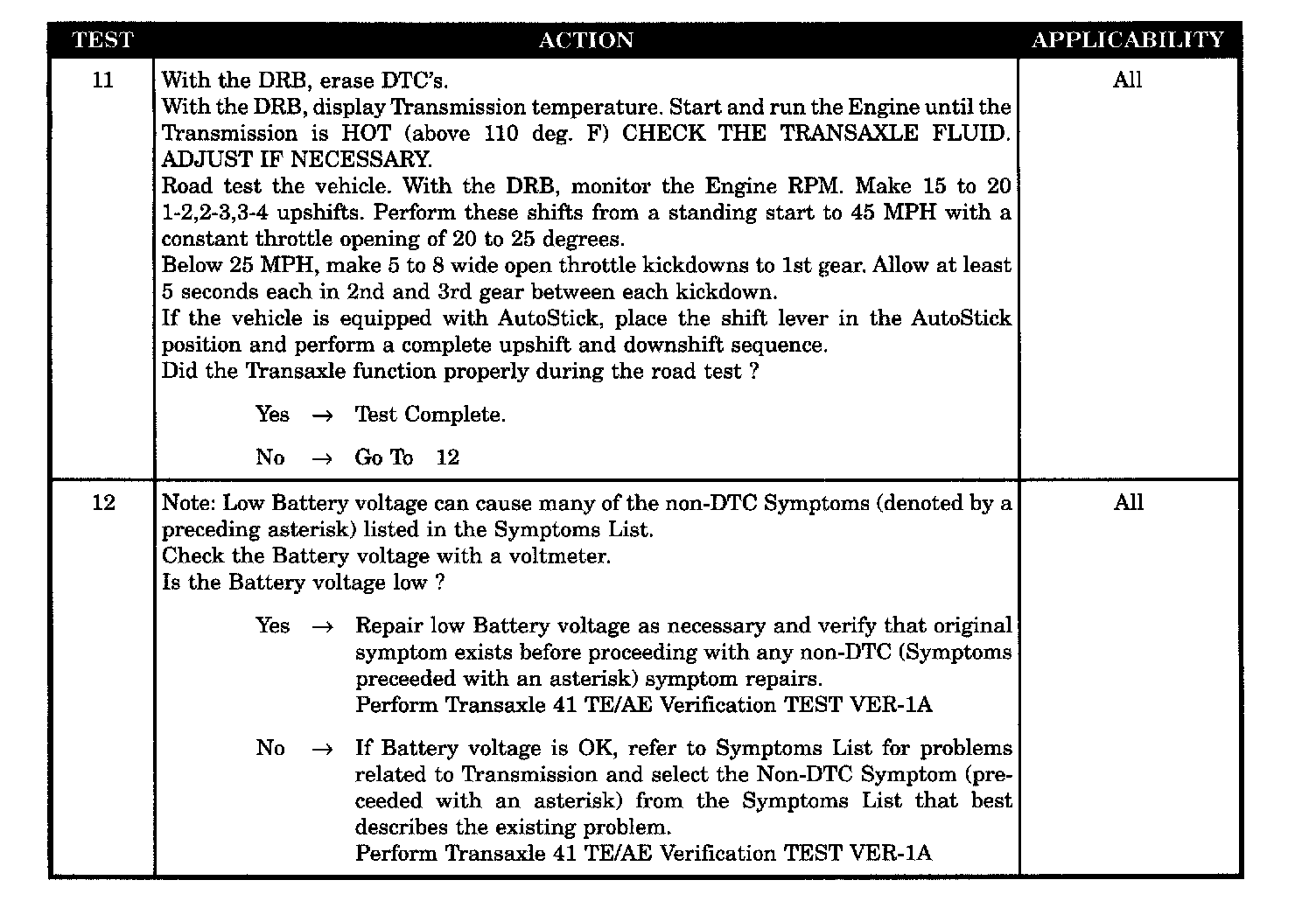

Test 11 And 12:

Symptom:
P1797 - MANUAL SHIFT OVERHEAT

POSSIBLE CAUSES
CHECKING SYMPTOMS AND POSSIBLE CAUSES
LOW BATTERY VOLTAGE
TRANSMISSION OVERFILLED
AGGRESSIVE DRIVING FOR EXTENDED PERIODS
EXTENSIVE DRIVING IN LOW GEAR
ENGINE COOLING FANS MALFUNCTIONING
ENGINE COOLING SYSTEM MALFUNCTIONING
INTERMITTENT P1797
TRANSMISSION OIL COOLER PLUGGED
