P1696

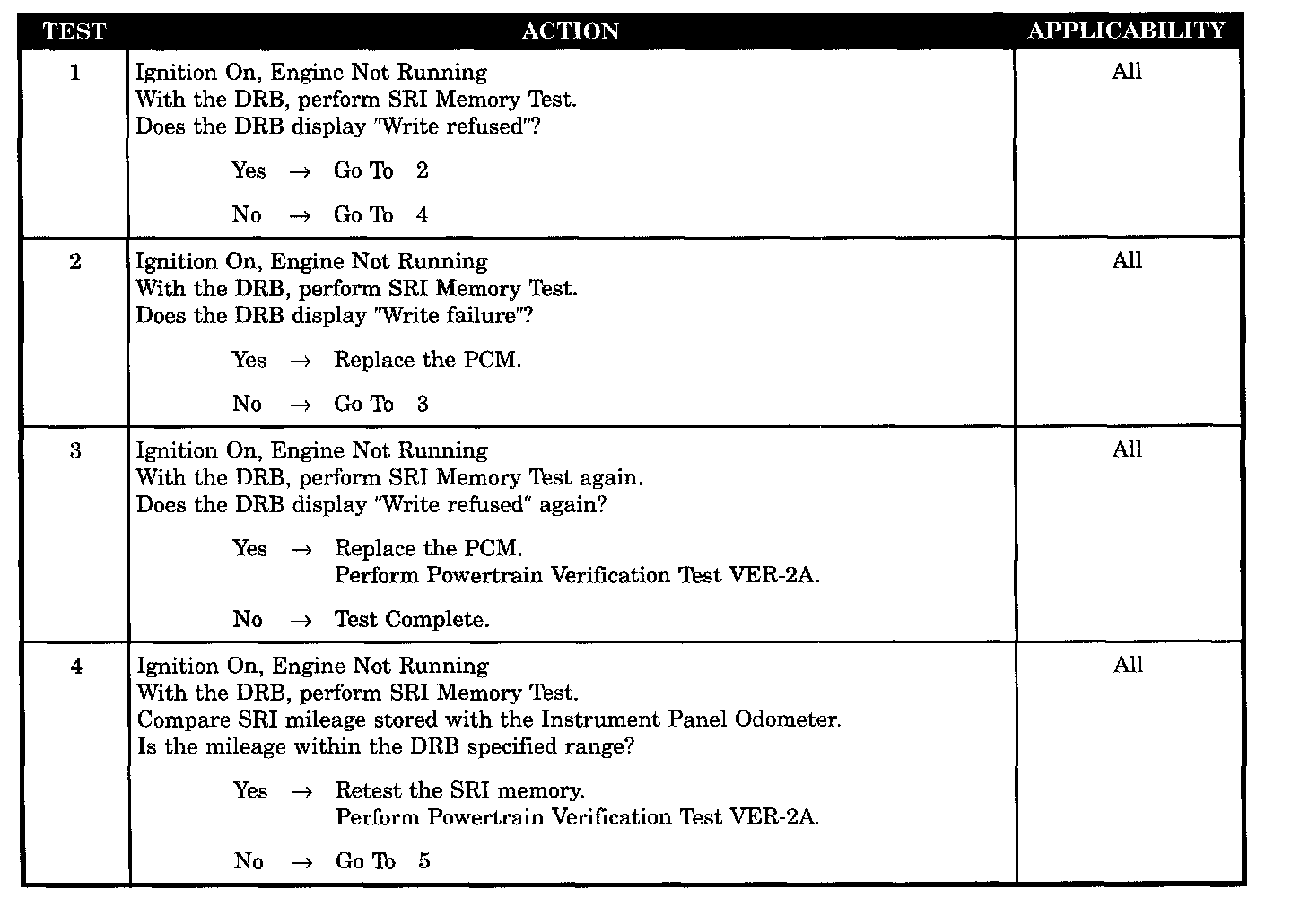

Tests 1 - 4:

Tests 5 - 7:

SYMPTOM
P1696 - PCM FAILURE EEPROM WRITE DENIED

POSSIBLE CAUSES
- PCM defective "WRITE REFUSED"
- SRI memory mileage within DRB specified range
- SRI memory "SRI MILEAGE INVALID"
- SRI memory needs updating
- PCM defective "WRITE FAILURE"
