Wipers Not Parking In Off

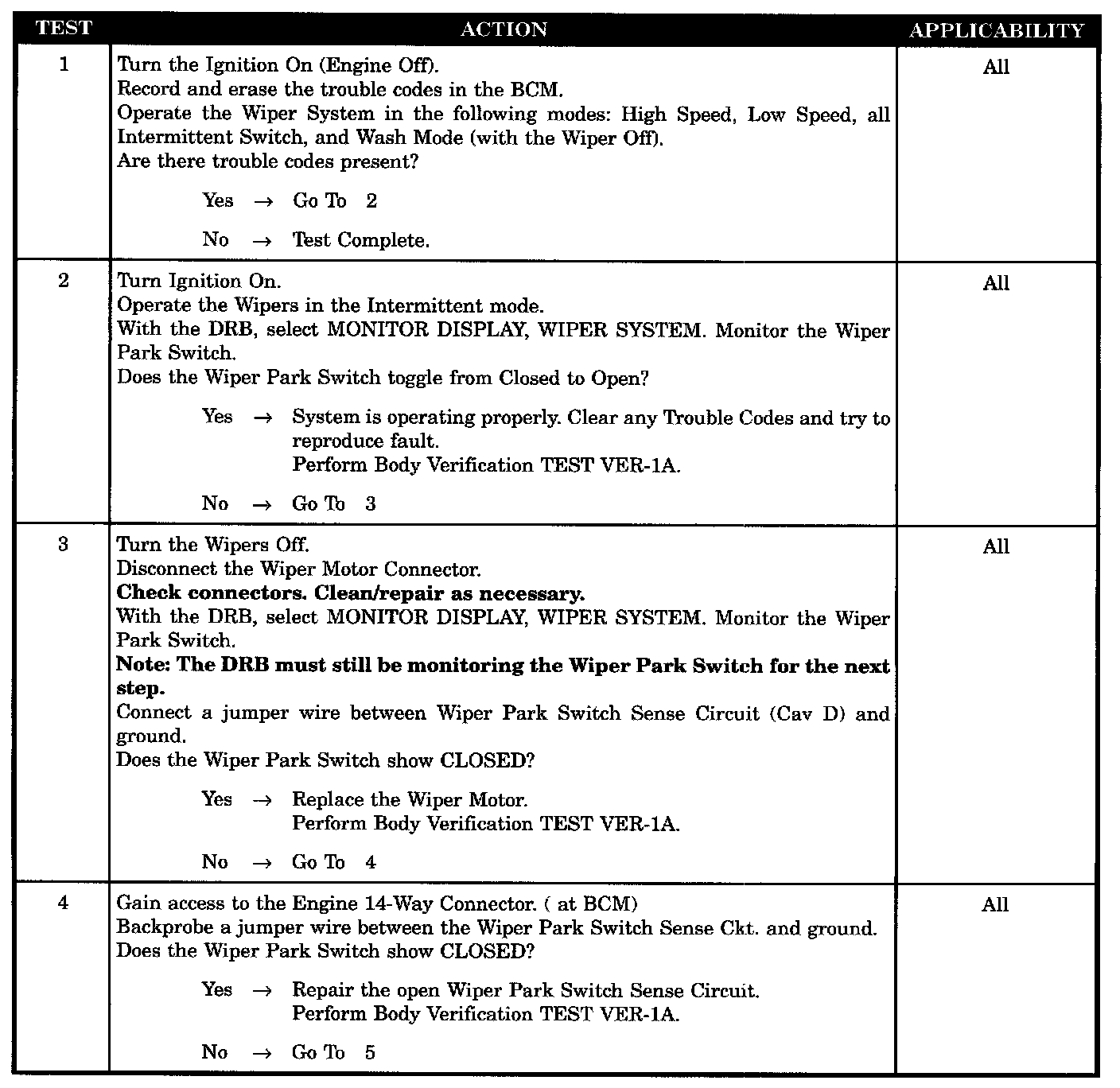

Test 1 - 4:

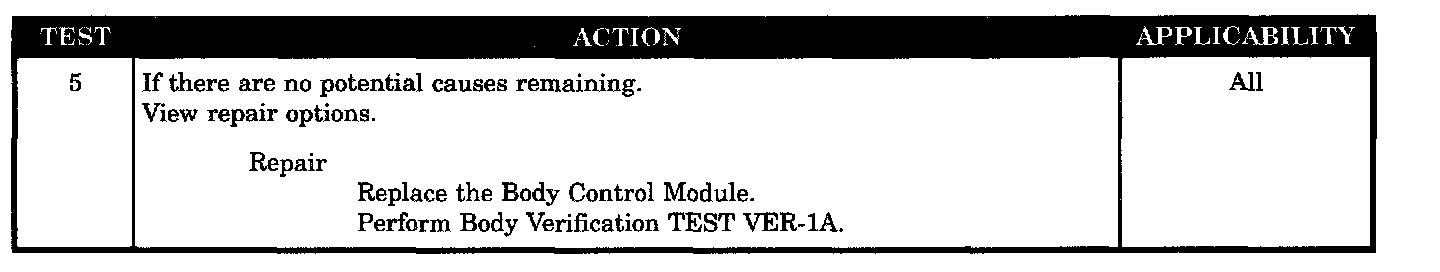

Test 5:

SYMPTOM
WIPERS NOT PARKING IN OFF

POSSIBLE CAUSES
- Wiper park switch toggle closed/open
- Open wiper park switch sense circuit
- DEF wiper motor/wiper park connector
- DEF BCM/wiper park switch default
