Loss of Ignition Run/Start (Active)

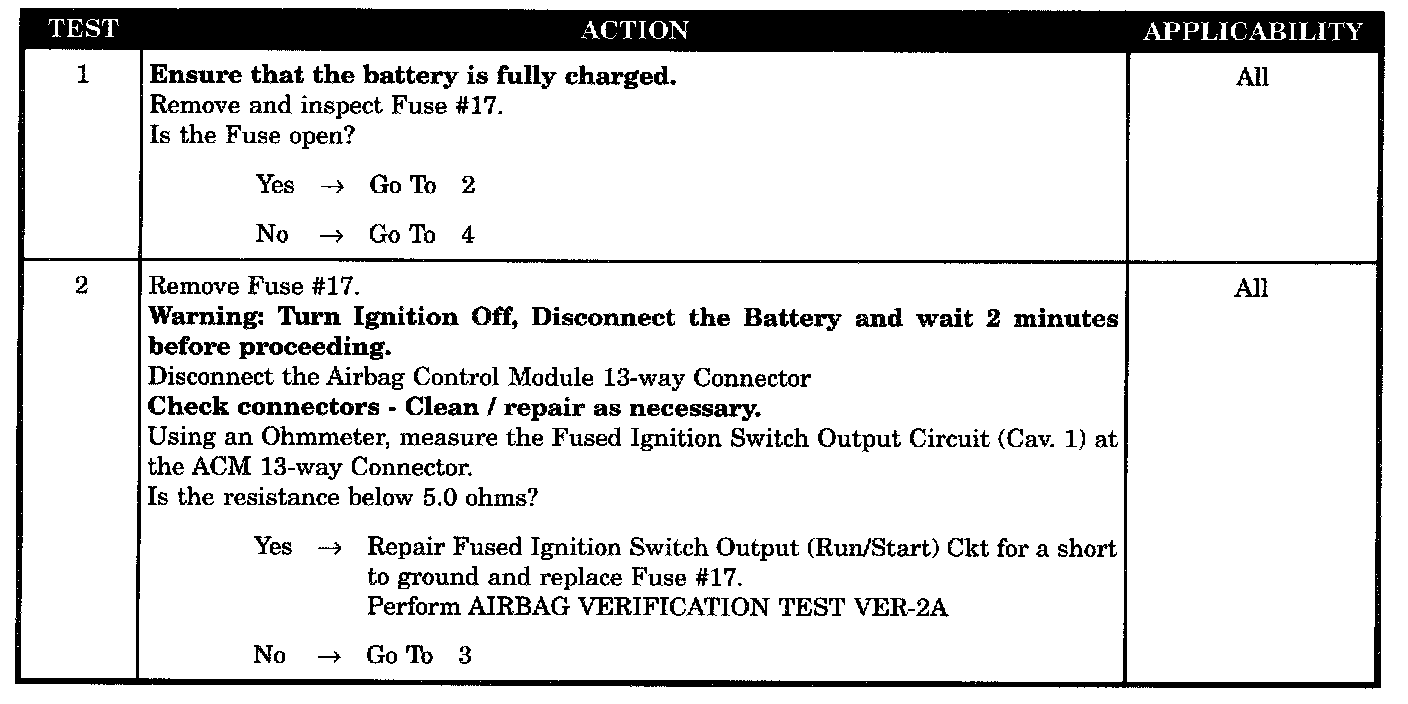

Test 1 - 2:

Test 3 - 6:

SYMPTOM
LOSS OF IGNITION RUN/START (ACTIVE)

WHEN MONITORED
Continuously with the ignition ON.

SET CONDITION
With voltage and current ON, the ignition run/start circuit is other than expected.

POSSIBLE CAUSES
- Ignition switch output Run/Start open
- Open Fuse
- Fused ignition switch output Run/Start open
- Fused ignition switch output Run/Start shorted
- ACM defective, fused ignition Run/Start open
- ACM defective, fused ignition Run/Start shorted
