Driver Squib Terminal Shorted to Ground (Stored)

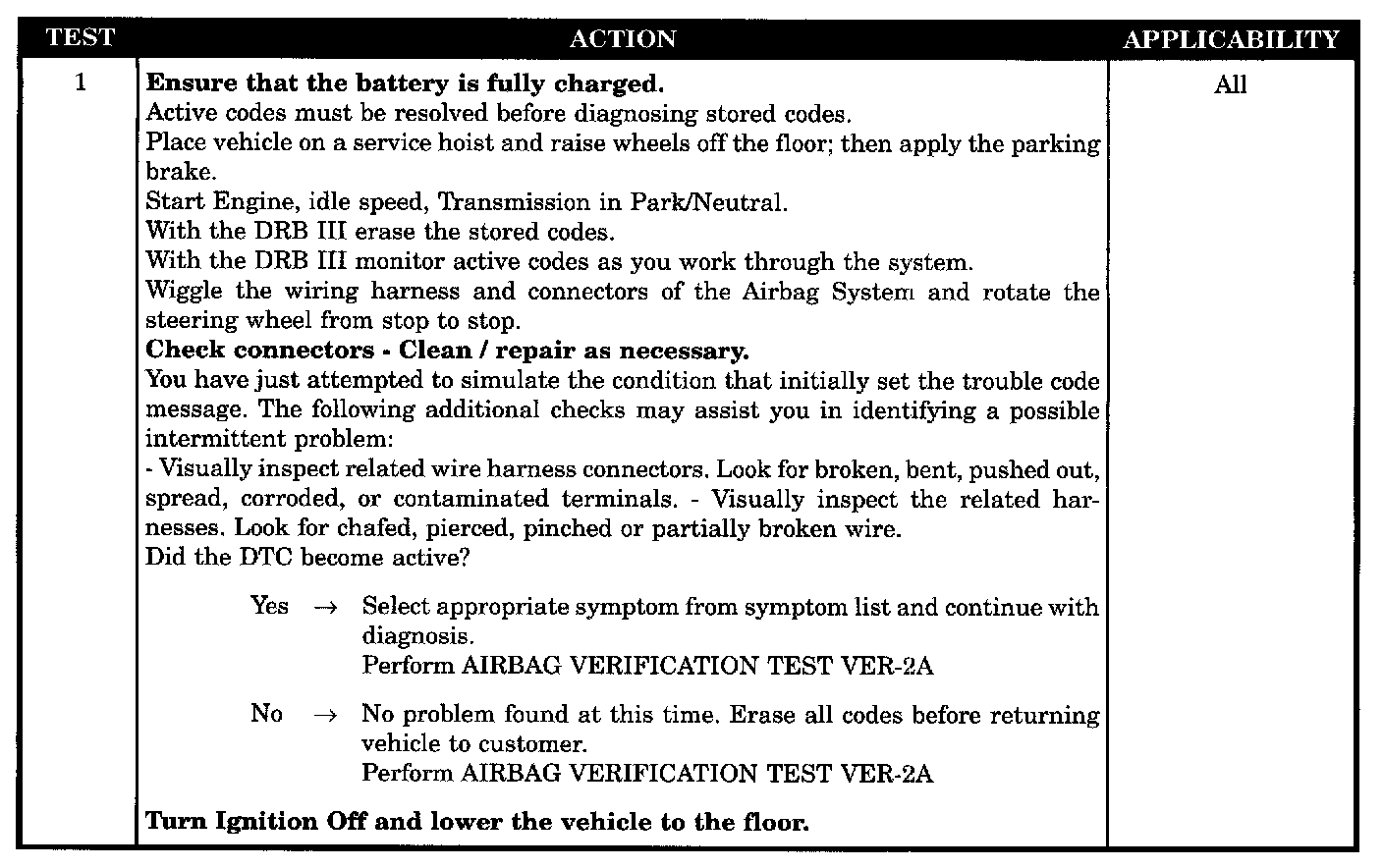

Test 1:

SYMPTOM
DRIVER SQUIB TERMINAL SHORTED TO GROUND (STORED)

TEST NOTE
This symptom is diagnosed using the test AECM & cluster CCD message mismatch (stored).

WHEN MONITORED
Continuously with the ignition ON.

SET CONDITION
With voltage ON, the driver airbag line 1 or line 2 circuit(s) is other than expected.

POSSIBLE CAUSES
- stored code has become active
- stored code has not been reproduced
