Courtesy Lamp Inoperative With Dome Lamp Switch

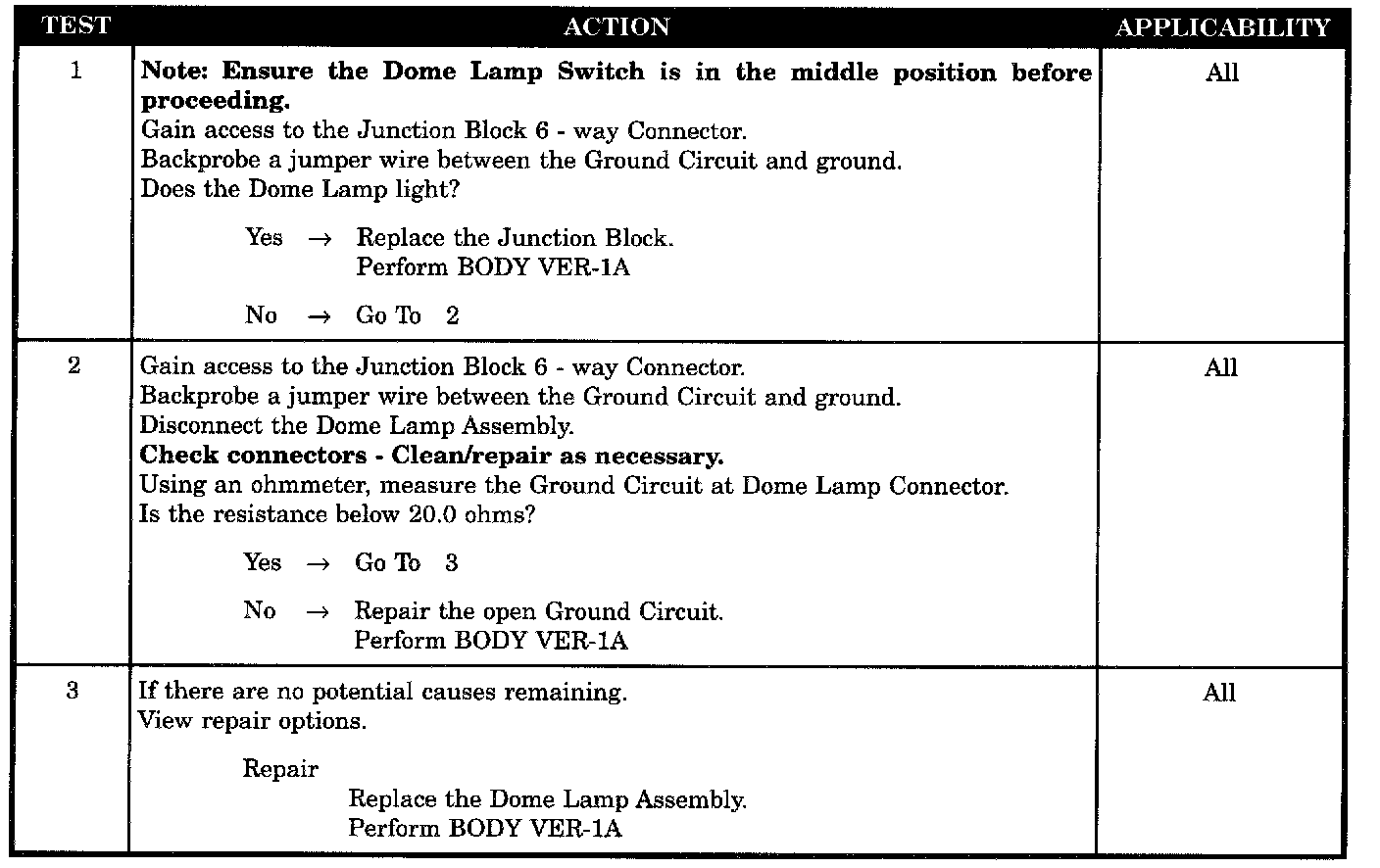

Test 1 - 3:

SYMPTOM
COURTESY LAMP INOPERATIVE WITH DOME LAMP SW

POSSIBLE CAUSES
- Courtesy lamp ground circuit open
- Dome lamp assembly defective (open) by default
- Junction block defective - ground circuit joint
