Courtesy Lamp Inoperative From All Doors

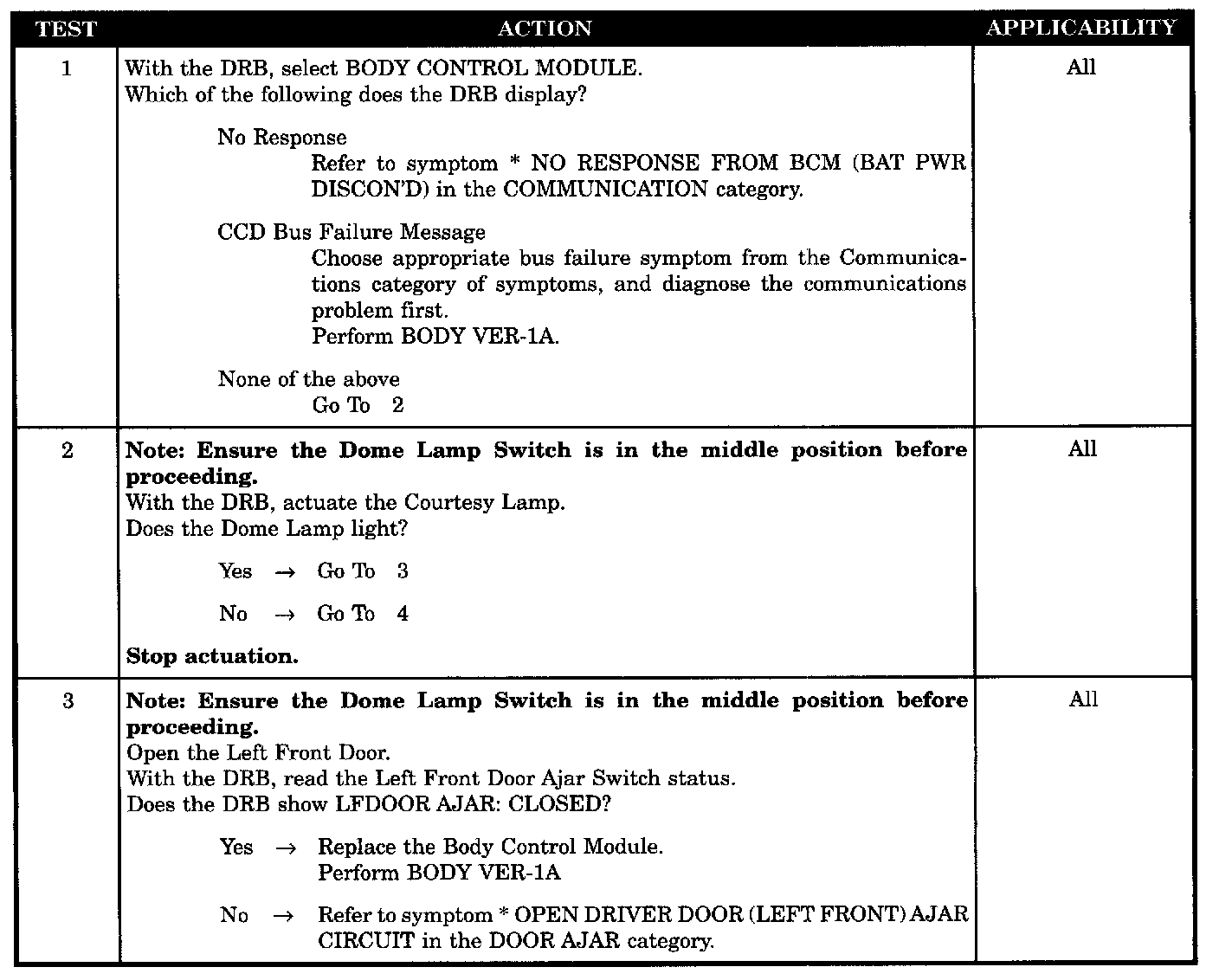

Test 1 - 3:

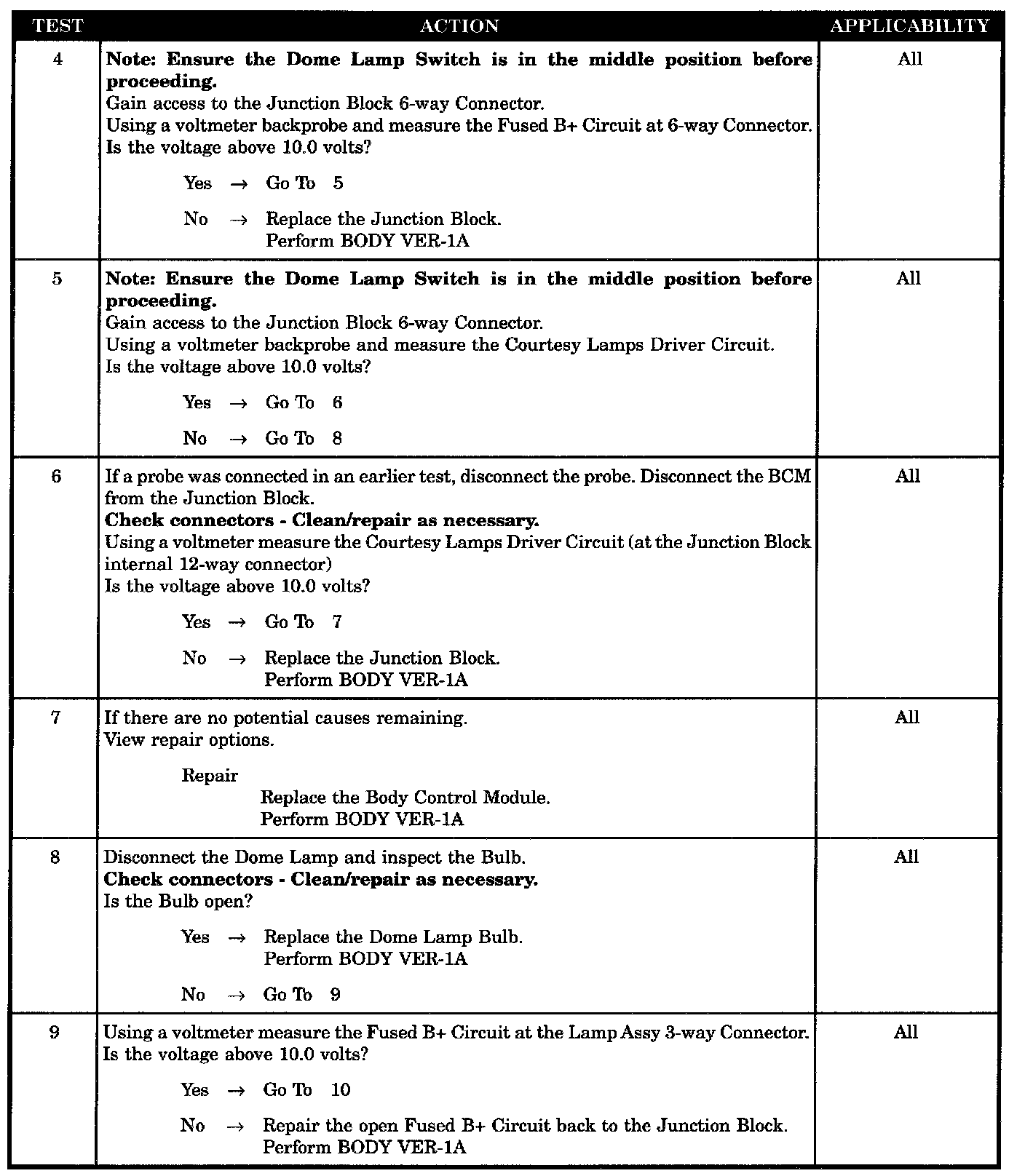

Test 4 - 9:

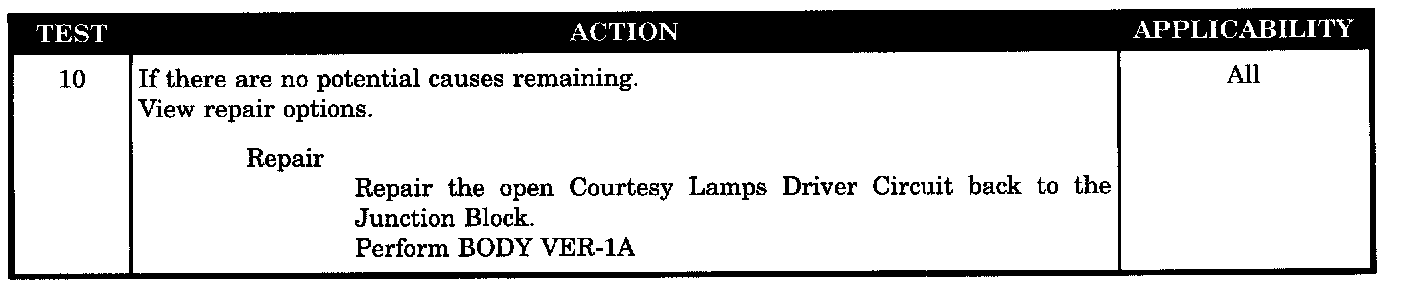

Test 10:

SYMPTOM
COURTESY LAMP INOPERATIVE FROM ALL DOORS

POSSIBLE CAUSES
- No response(BCM)/CCD bus failure
- Dome lamp bulb open
- Fused B-circuit open from JUNC block to lamp bulb
- Courtesy lamps driver circuit open (by default)
- Junction block defective - fused B+ at 6 way CONN
- Junction block defective - internal 12 way CONN
- BCM defective (court LMP DRVR CKT FUNC) by default
- BCM defective (LF door ajar switch status)
