Speedometer

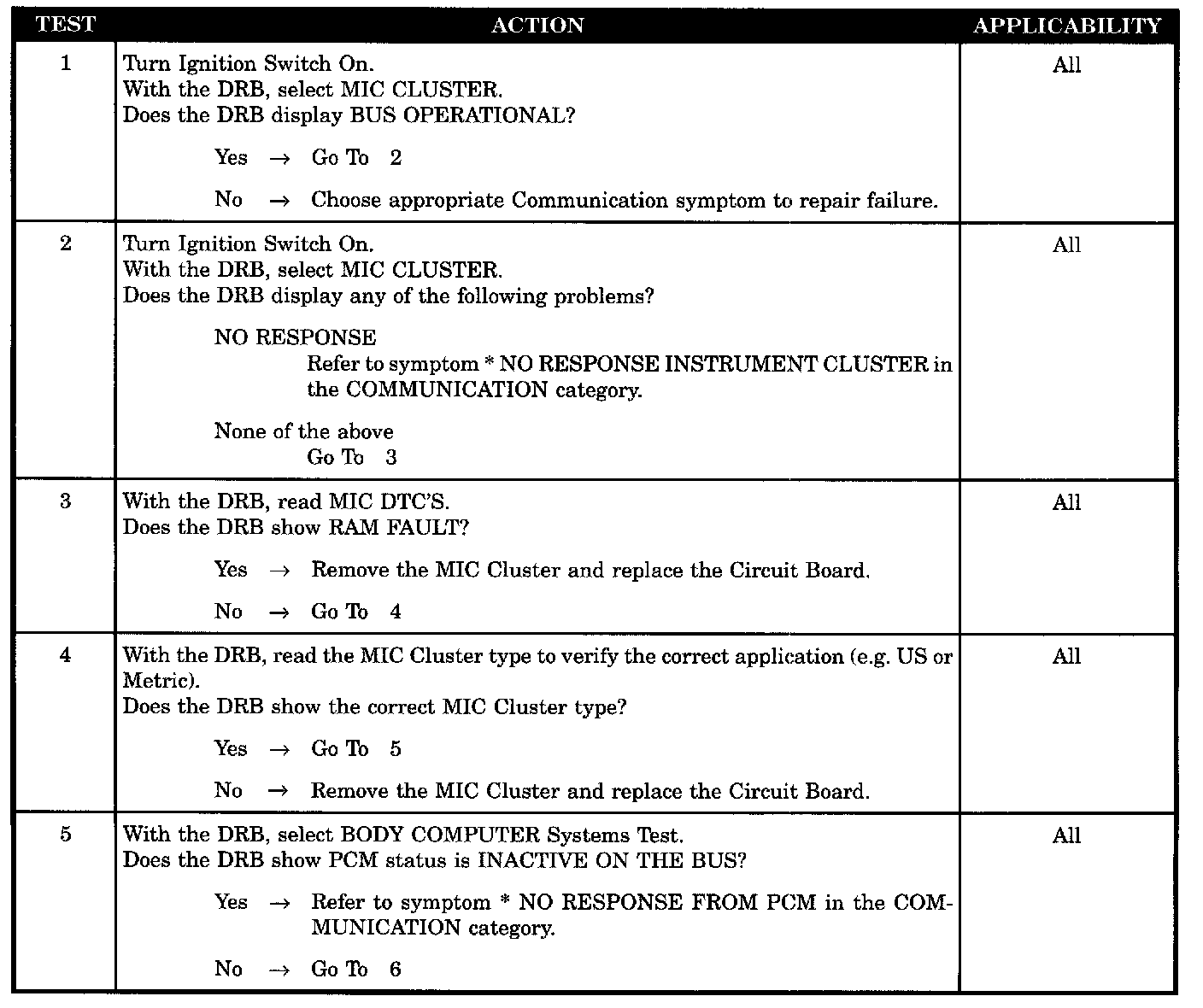

Test 1 - 5:

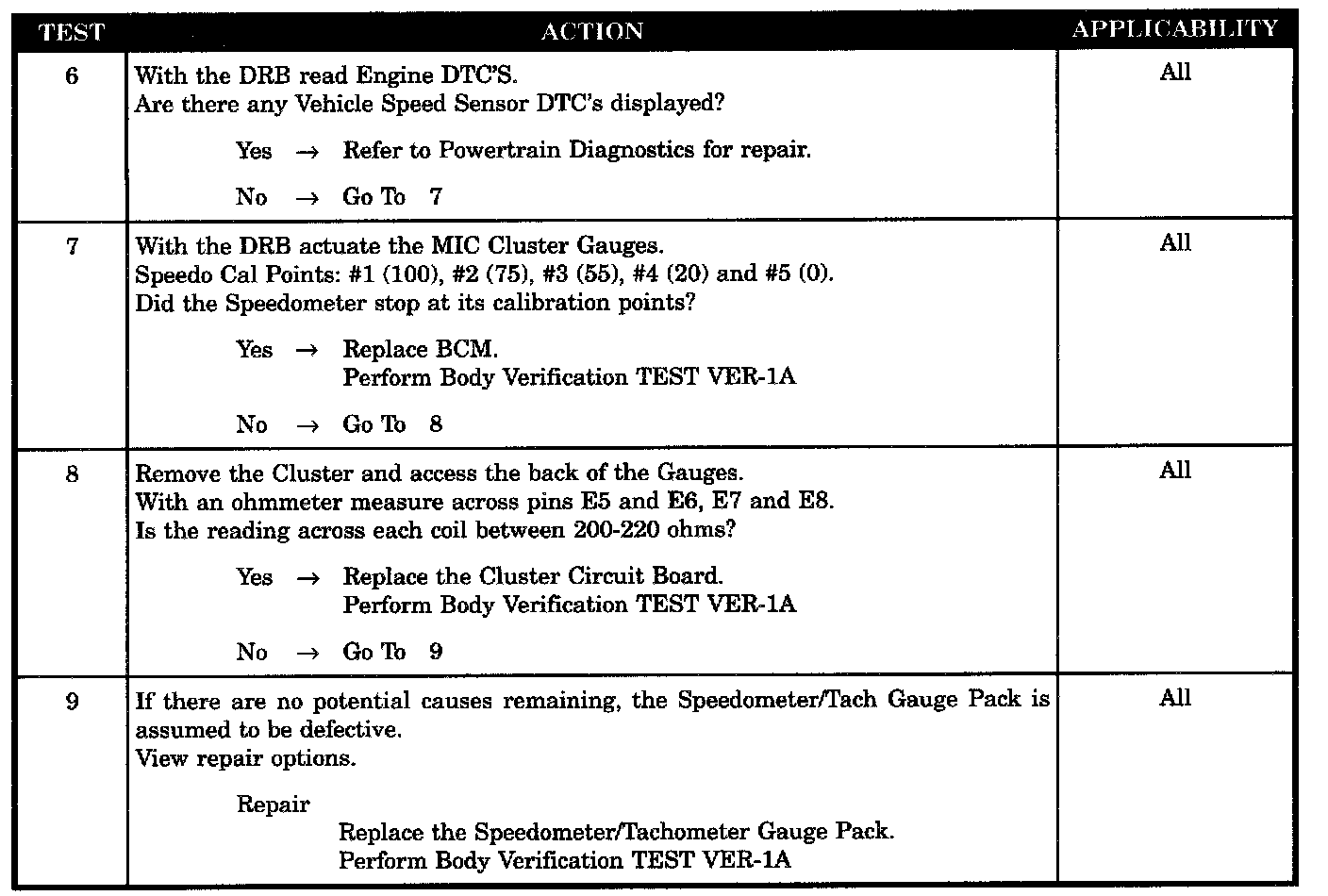

Test 6 - 9:

SYMPTOM
SPEEDOMETER

POSSIBLE CAUSES
- Speedometer/TACH gauge pack defective
- DRB displays ram fault
- DRB shows bus operational failure
- MIC cluster mismatch
- Vehicle speed sensor DTC'S are present
- BCM defective speedometer input/output
- Cluster circuit board defective
