All Gauges Inoperative

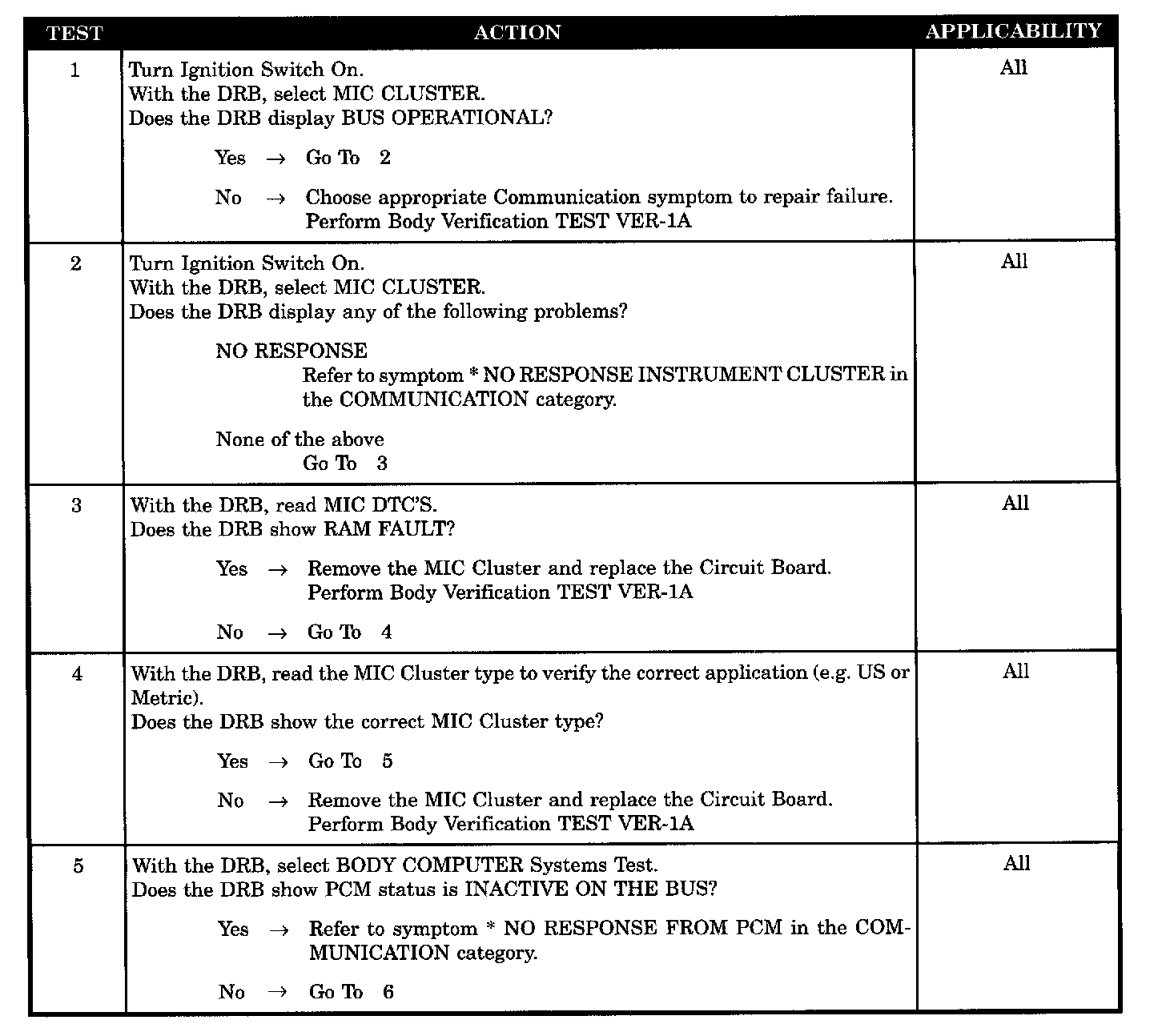

Test 1 - 5:

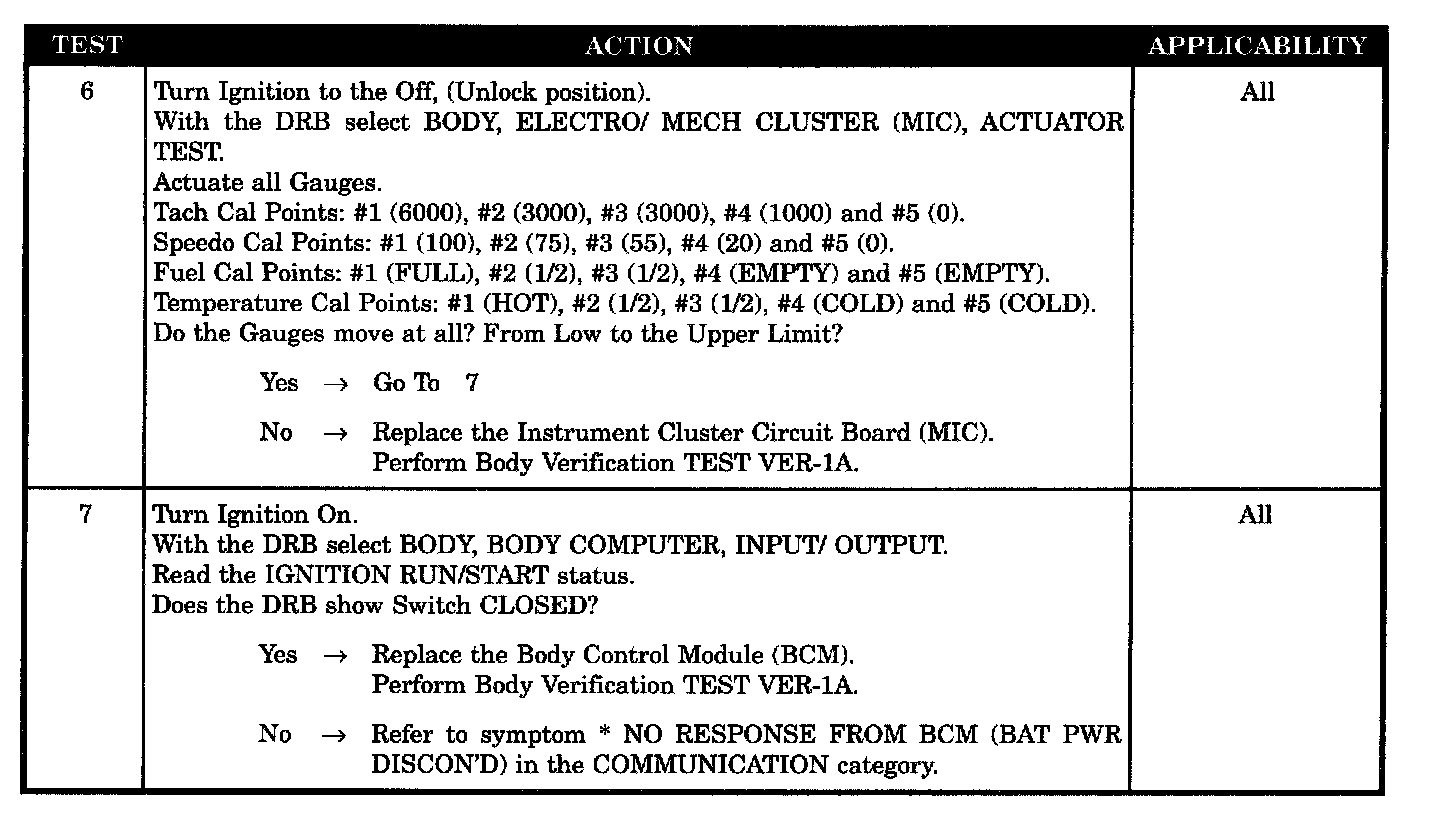

Test 6 - 7:

SYMPTOM
ALL GAUGES NOT OPERATING

POSSIBLE CAUSES
- BCM IGN run/start input CKT defective
- Instrument cluster CKT board out of SPEC
- DRB displays ram fault
- DRB shows bus operational failure
- MIC cluster mismatch
