Passenger Door Ajar Circuit Shorted

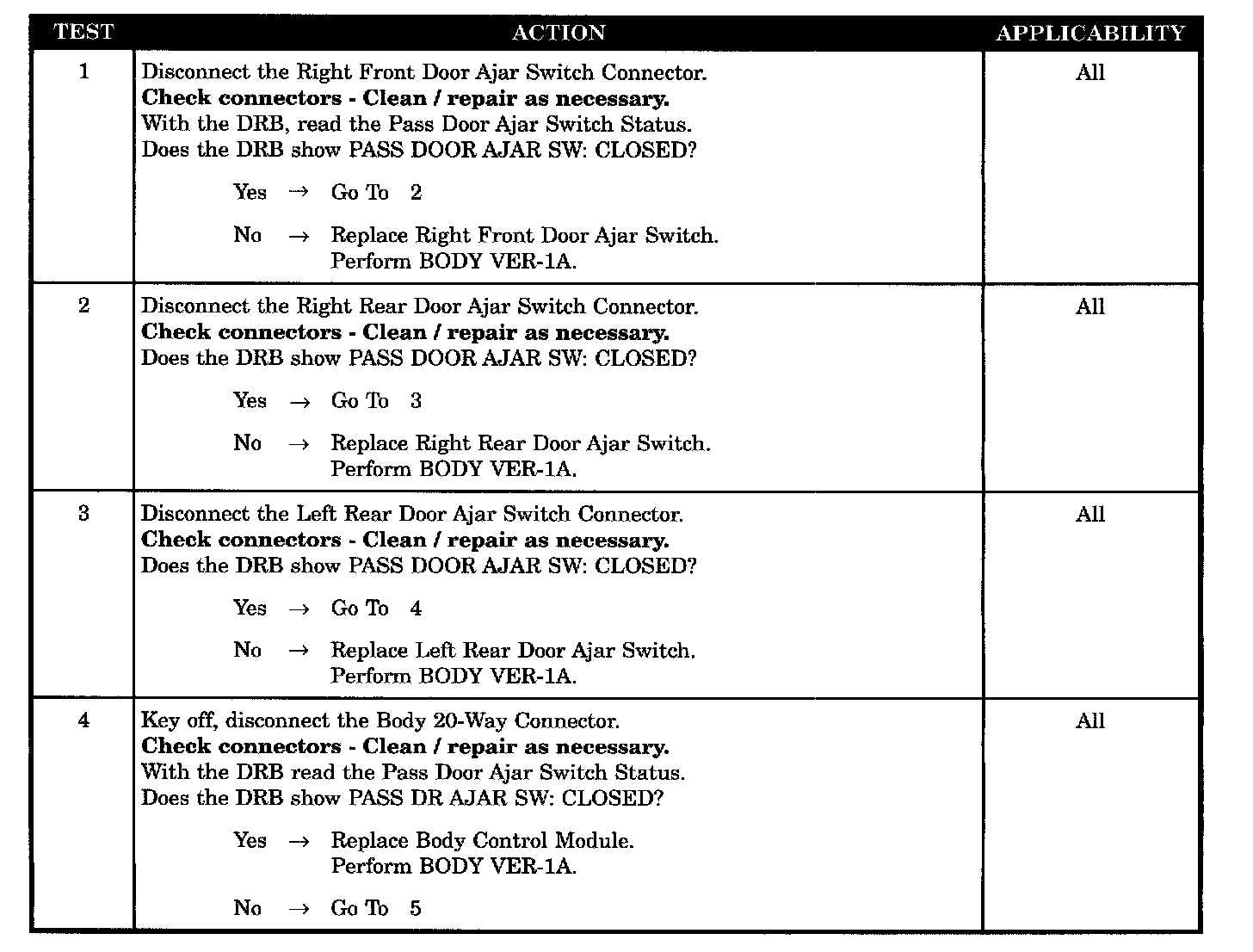

Test 1 - 4:

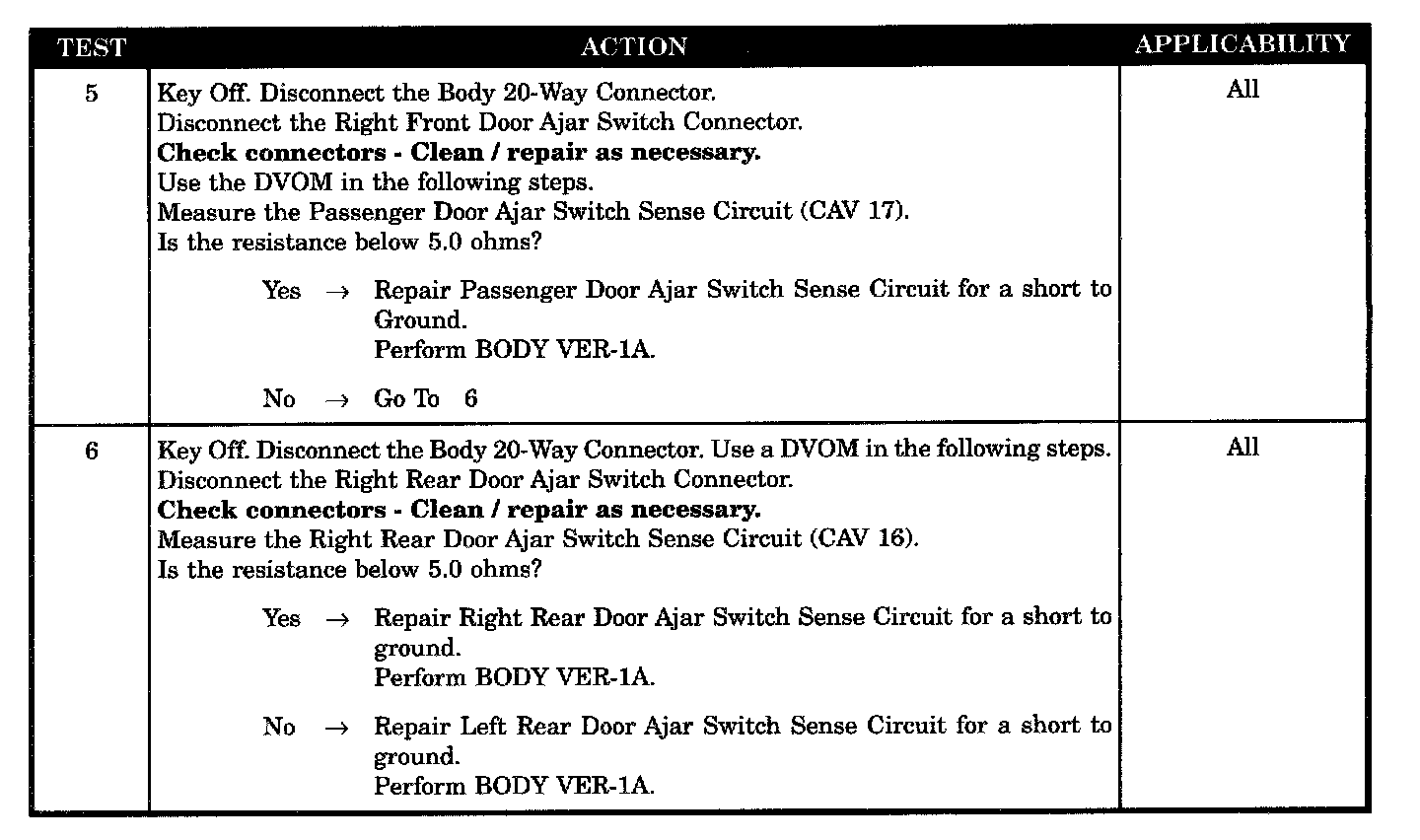

Test 5 - 6:

SYMPTOM
SHORTED PASSENGER DOOR AJAR CIRCUIT

POSSIBLE CAUSES
- Right rear door ajar switch defective (shorted)
- Left rear door ajar switch defective (shorted)
- Right front door ajar switch defective (shorted)
- Passenger door ajar switch CKT resistance <5 ohms GND
- Right rear door switch sense CKT <5 ohms to GND
- Body control module defective input shorted
- Left rear door switch CKT res <5 ohms to GND
