No Termination

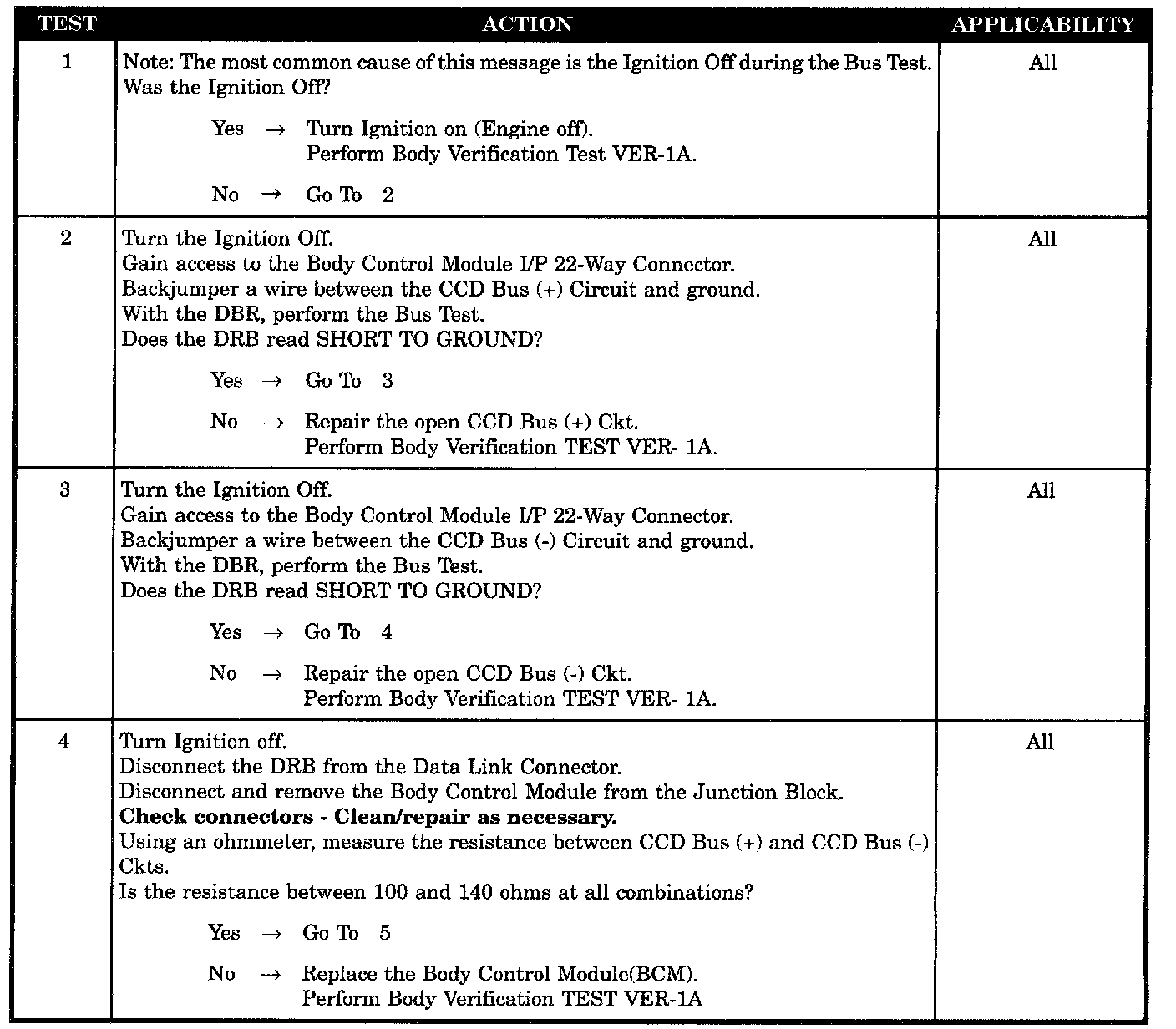

Test 1 - 4:

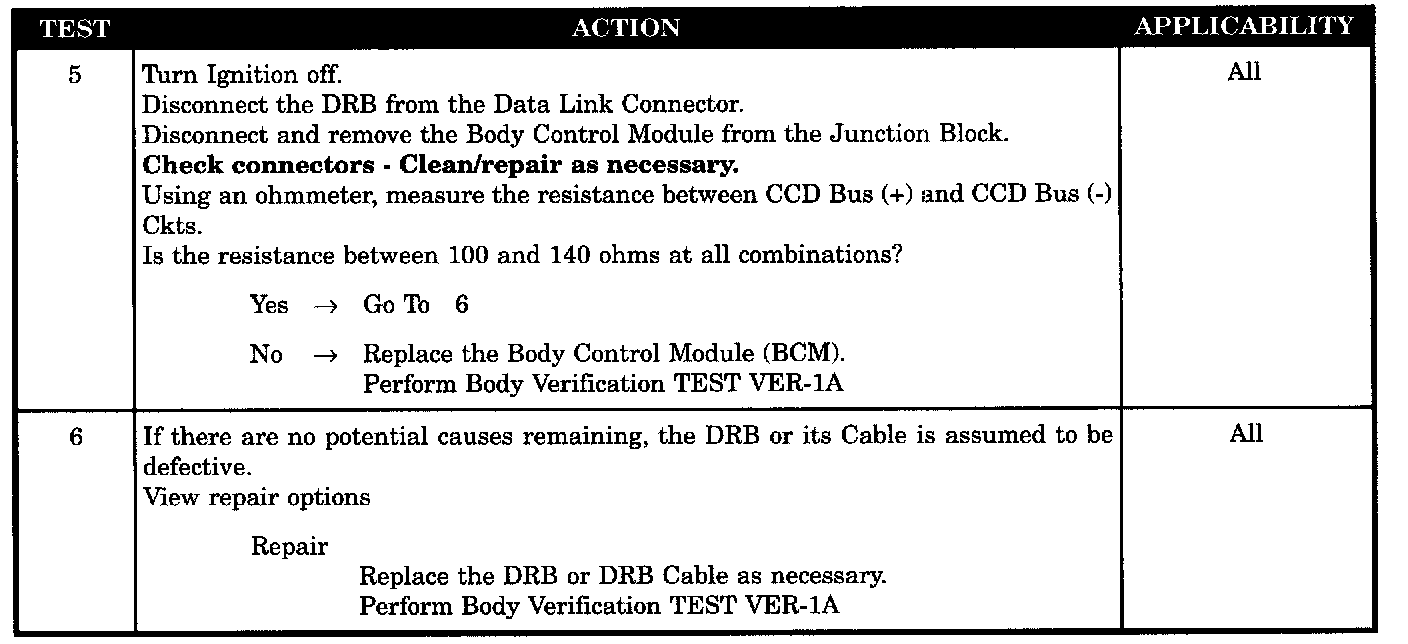

Test 5 - 6:

SYMPTOM
NO TERMINATION

POSSIBLE CAUSES
- Defective DRB
- CCD BUS (+) circuit open
- CCD BUS (-) circuit open
- CCD ignition OFF
- BCM bias termination
- CCD bus not terminated at BCM
