Left Rear Sensor Circuit Failure

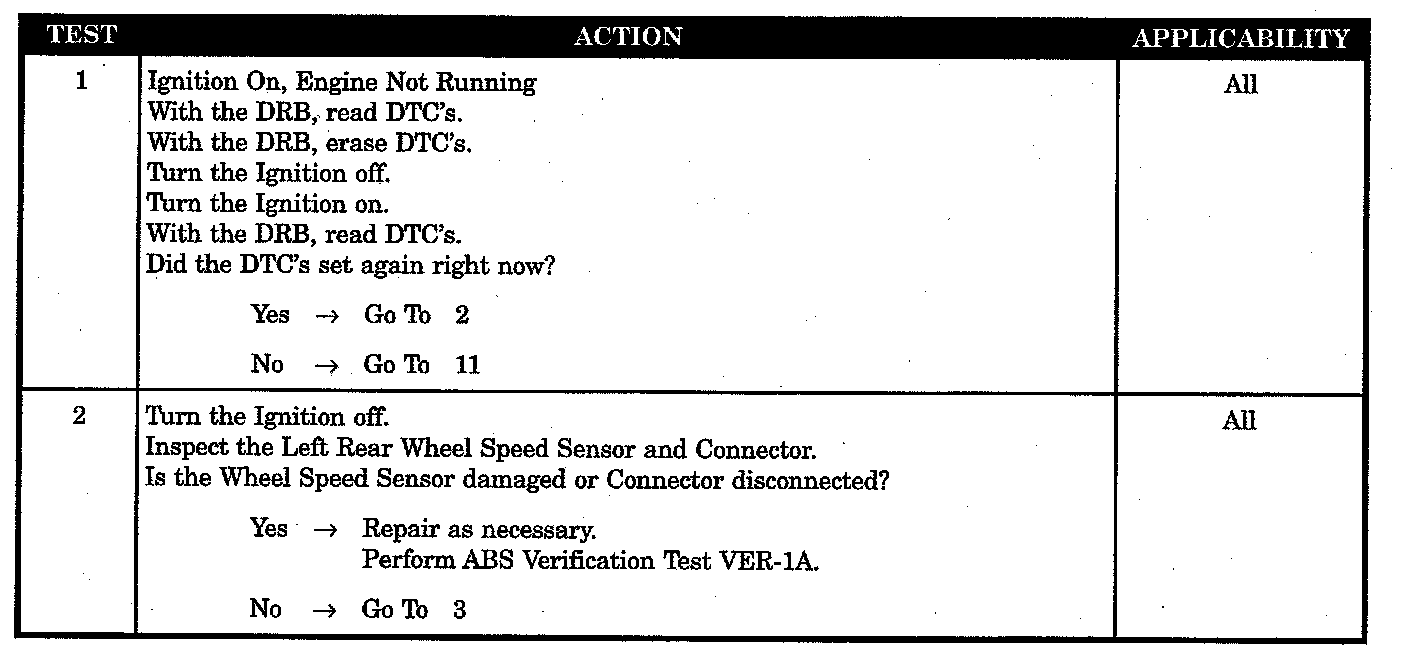

Test 1 And 2:

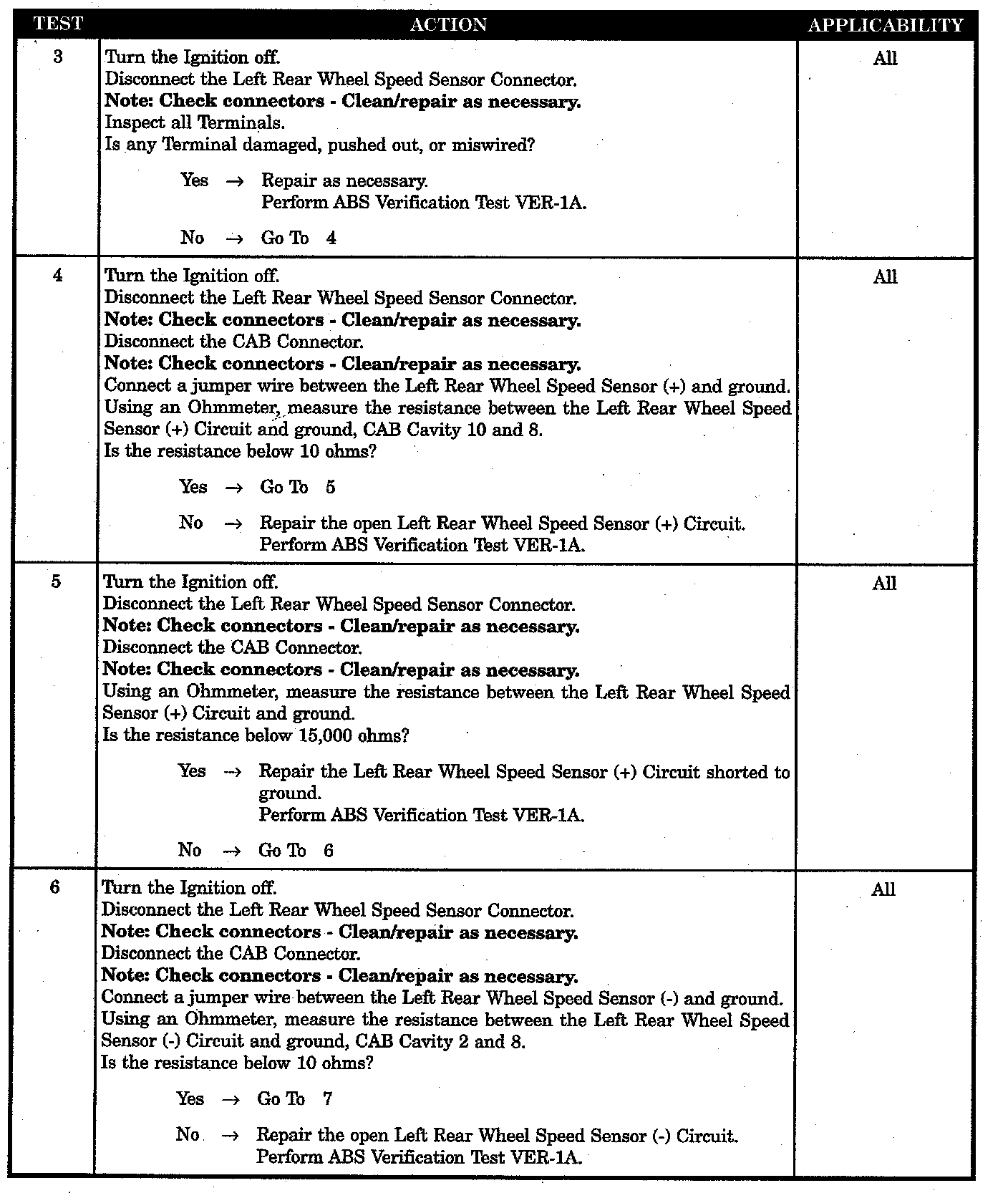

Test 3 Through 6:

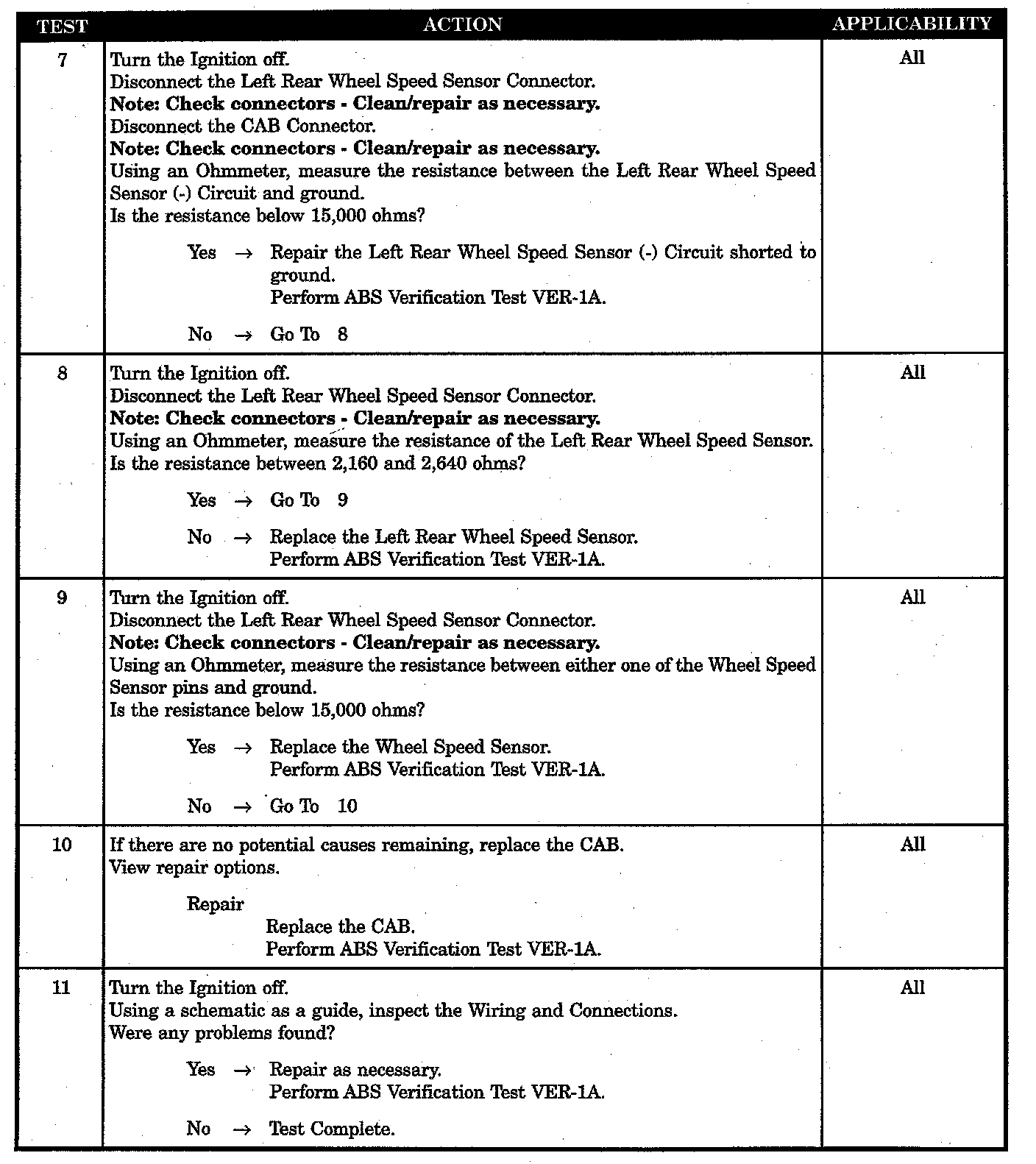

Test 7 Through 11:

Symptom:
LEFT REAR SENSOR CIRCUIT FAILURE

When Monitored and Set Condition:
LEFT REAR SENSOR CIRCUIT FAILURE

When Monitored: 1. Ignition on. 2. The CAB monitors the wheel speed sensor circuit continuity at all times.

Set Condition: If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) is set.

POSSIBLE CAUSES
WIRING AND CONNECTORS 613SERVABLE DEFECT
LEFT REAR WHEEL SPEED SENSOR (+) CIRCUIT OPEN
LEFT REAR WHEEL SPEED SENSOR (-) CIRCUIT OPEN
LEFT REAR WHEEL SPEED SENSOR (+) CIRCUIT SHORTED TO GROUND
LEFT REAR WHEEL SPEED SENSOR (-) CIRCUIT SHORTED TO GROUND
LEFT REAR WHEEL SPEED SENSOR CONNECTOR OBSERVABLE DAMAGE
LEFT REAR WHEEL SPEED SENSOR DAMAGED OR CONNECTOR DISCONNECTED
LEFT REAR WHEEL SPEED SENSOR DEFECTIVE (SHORTED TO GROUND CHECK)
LEFT REAR WHEEL SPEED SENSOR DEFECTIVE (RESISTANCE CHECK)
CAB DEFECTIVE
