DRB III No Response Messages

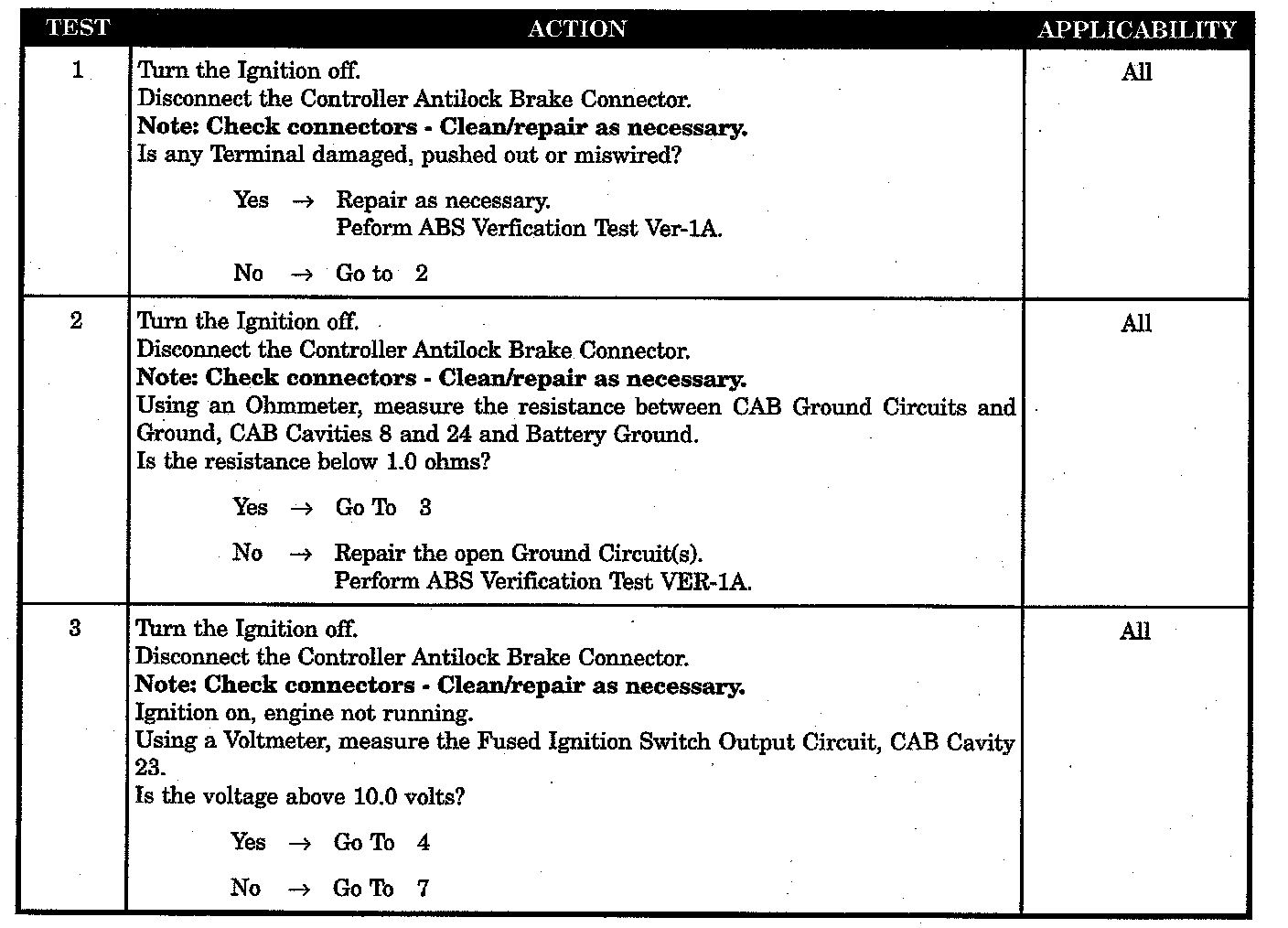

Test 1 Through 3:

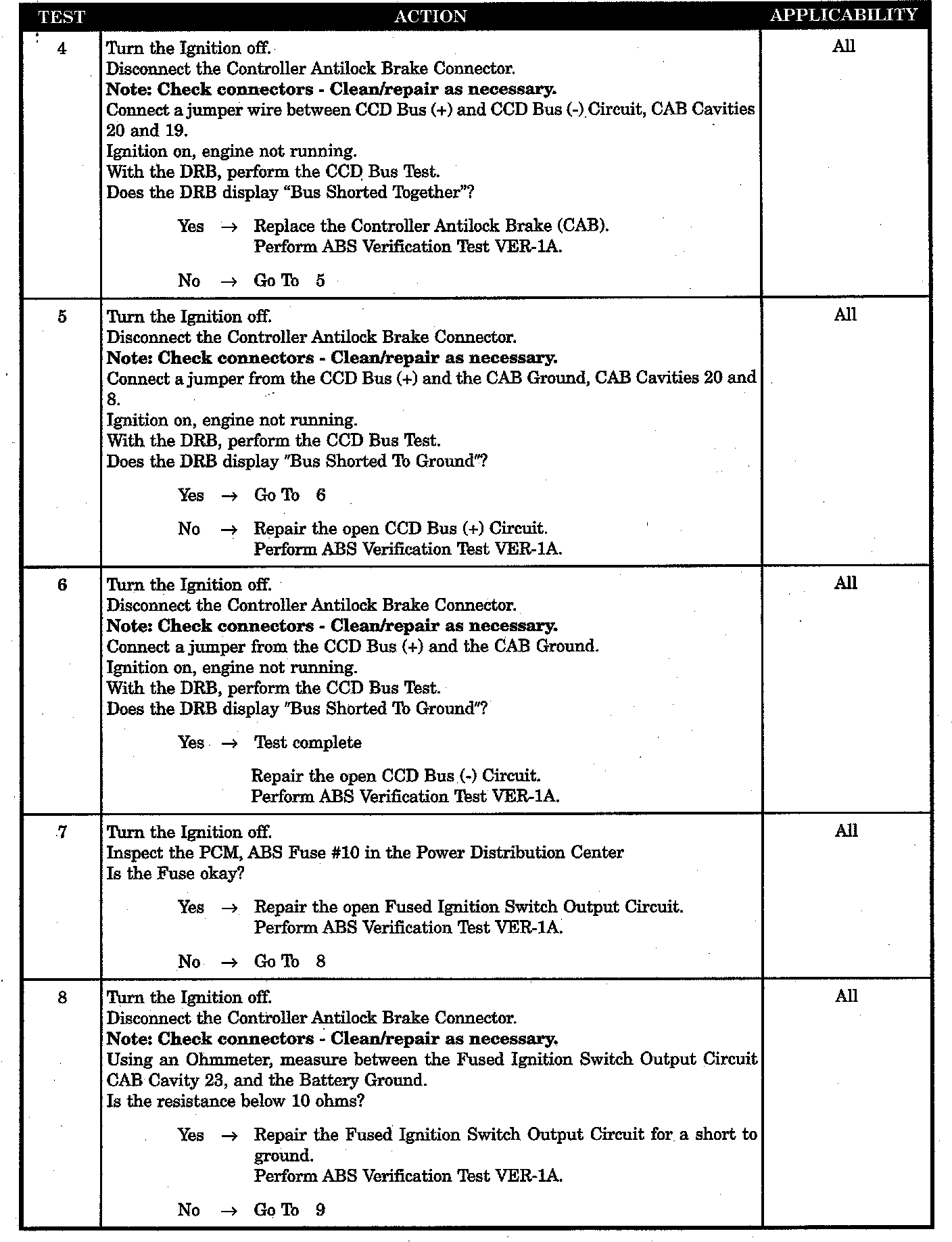

Test 4 Through 8:

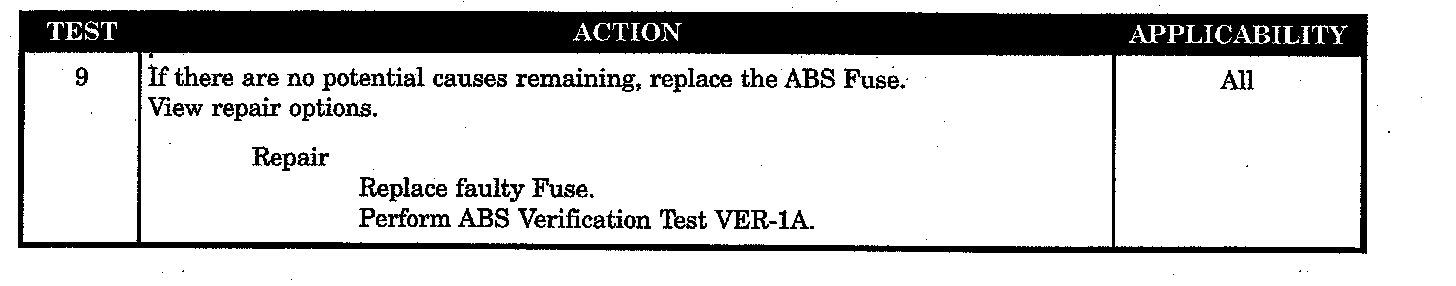

Test 9:

Symptom:
DRB "NO RESPONSE" MESSAGE

POSSIBLE CAUSES
PCM, ABS FUSE #10 DEFECTIVE
CAB GROUND CIRCUIT(S) OPEN
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
FUSED IGNITION SWITCH OUTPUT CIRCUIT SHORT TO GROUND
CCD BUS CIRCUIT OPEN
CCD BUS CIRCUIT OPEN
CAB CONNECTOR OBSERVABLE DEFECT
CAB DEFECTIVE
