Gearshift Knob

REMOVAL
1. Pull shifter boot down and away from shifter knob.

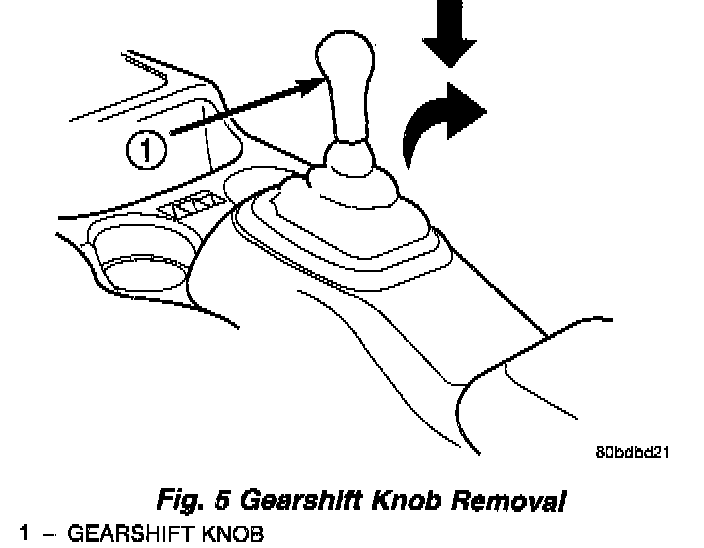

Fig. 5:

2. Push down on knob and rotate clockwise to remove (Fig. 5).

INSTALLATION

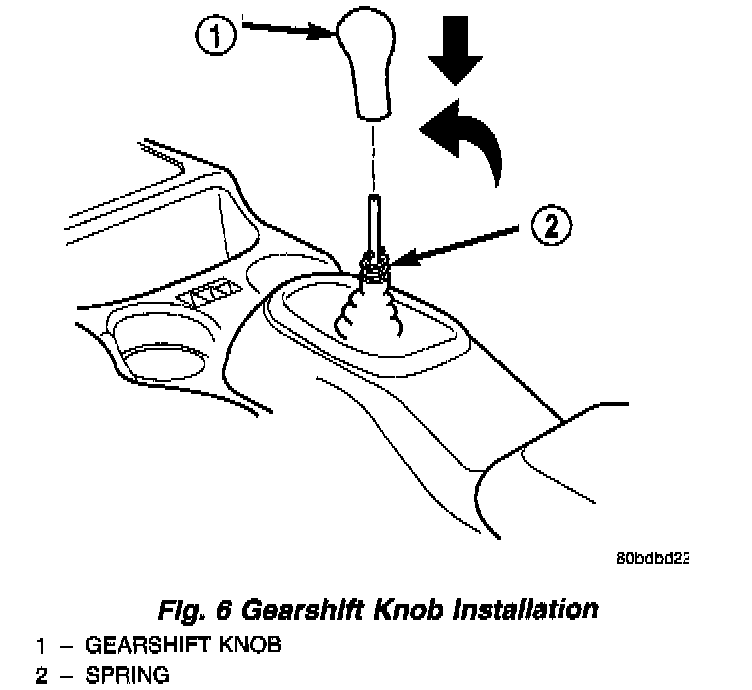

Fig. 6:

1. Install knob to shifter lever, align knob to three o'clock position, push knob down to engage spring and rotate counter clockwise (Fig. 6).
2. Return shifter boot to its original position (seated around knob lip).
