Service Procedure

1. For Neon R/T vehicles equipped with a 2.0L High Output engine:
Raise the vehicle on an appropriate hoist.

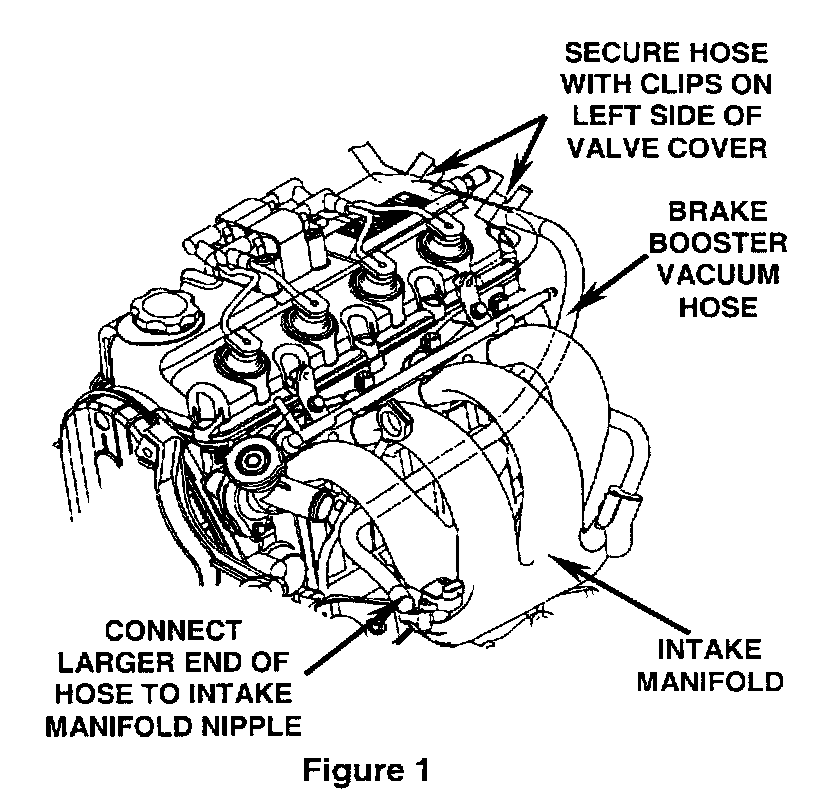

2. Disconnect the brake booster vacuum hose from the intake manifold nipple (Figure 1).

NOTE:
On Neon R/T vehicles, the intake manifold nipple is located on the rear of the manifold between the # 2 and # 3 cylinder runners.

3. For Neon R/T vehicles equipped with a 2.0L High Output engine:
Lower the vehicle.

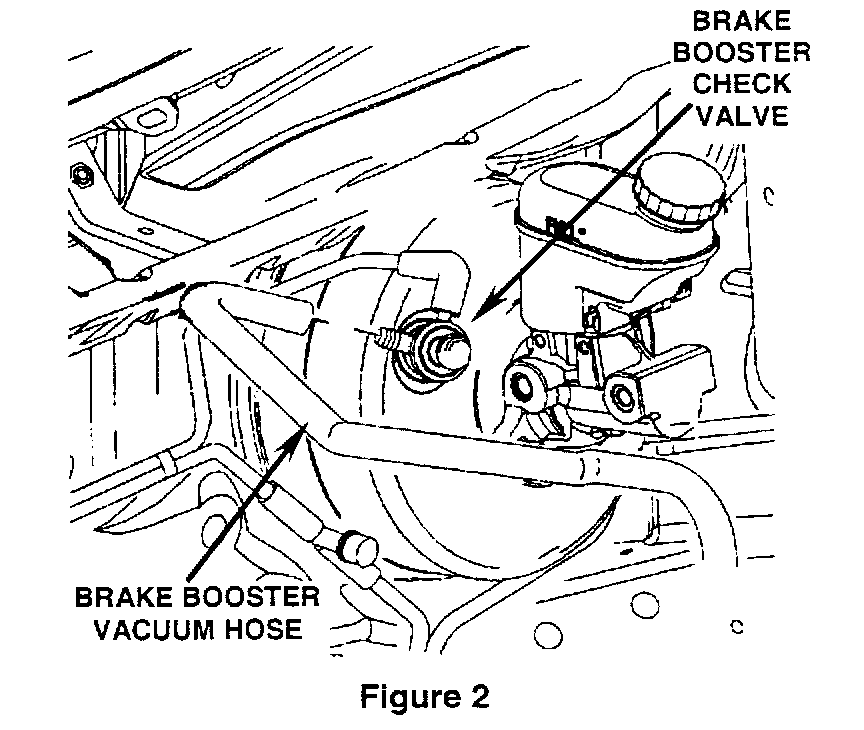

4. Disconnect the brake booster vacuum hose from the check valve on the brake booster (Figure 2). Do not remove the check valve from the brake booster.

IMPORTANT:
For Neon R/T vehicles equipped with a 2.0L High Output engine, disconnect the brake booster hose from the inline hose connector located near the brake booster. Do NOT disconnect the vacuum hose elbow from the brake booster check valve.

5. Remove and discard the brake booster vacuum hose.

6. Route the new vacuum hose in the same location as the original hose and then secure the hose with the clips on the left side of the valve cover.

7. Connect the brake booster vacuum hose to the check valve on the brake booster (Figure 2) or to the inline hose connector (Neon R/T vehicles).

8. Connect the brake booster vacuum hose to the intake manifold nipple (Figure 1).
