Electrical - Wiring Schematic Revisions

NUMBER: 26-12-99B

GROUP: Miscellaneous

DATE: December, 1999

THE REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

MODELS:
2000 Neon Service Manual - Publication Number 81-270-0025

DESCRIPTION OF CHANGES

Revision to the wiring schematics

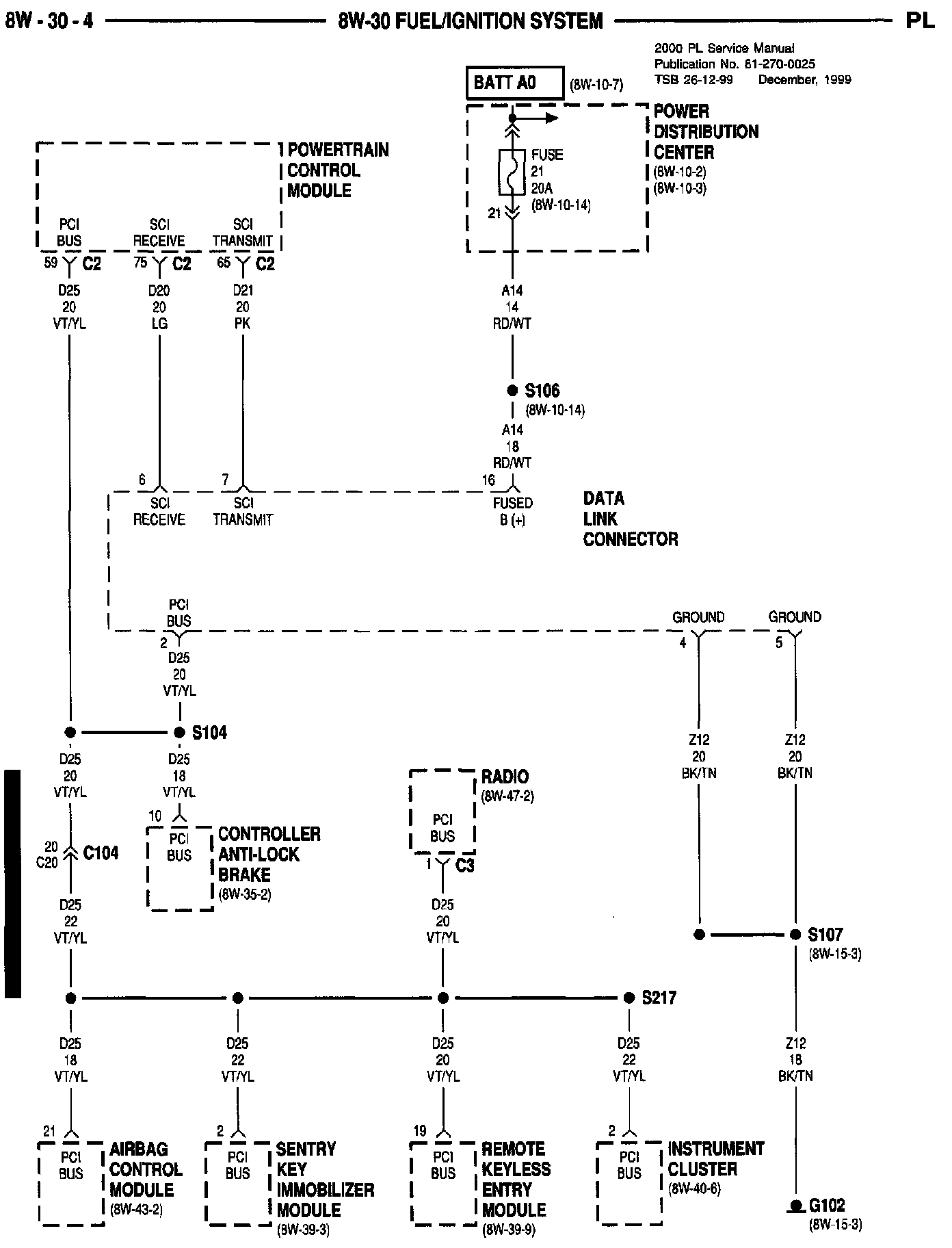

8W-30-4

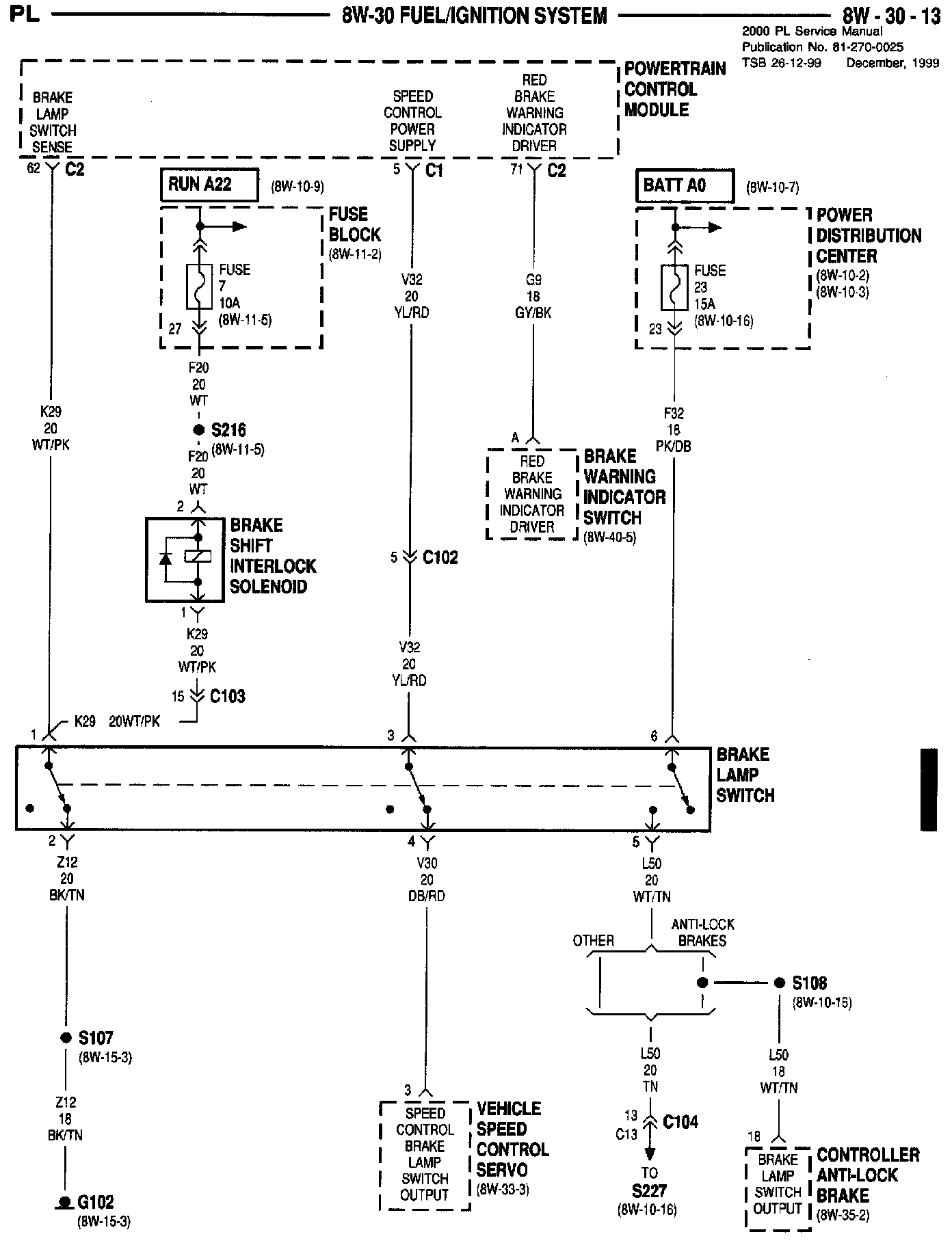

8W-30-13

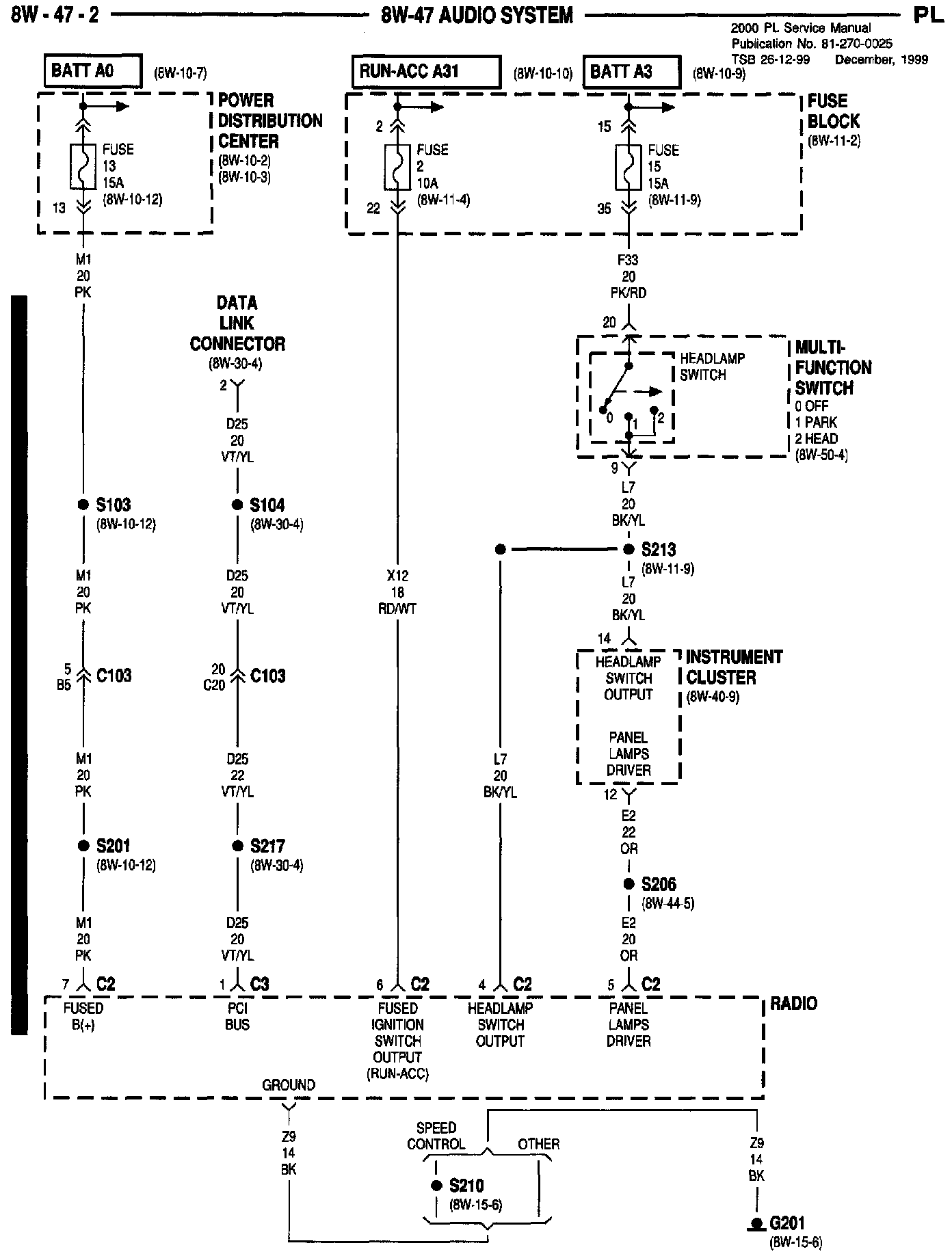

8W-47-2

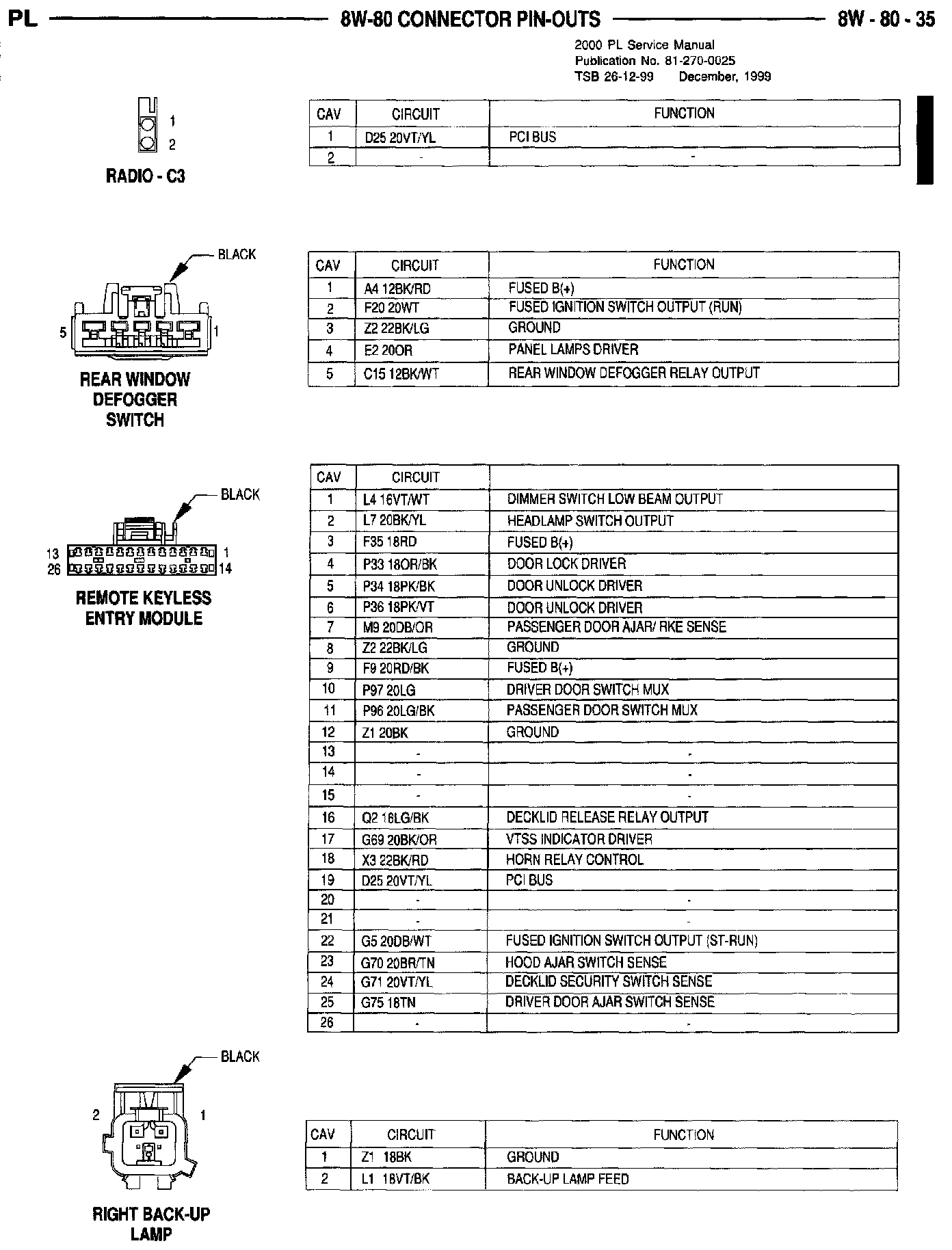

8W-80-35
