Fuel Filler Cap: Service and Repair

REMOVAL
1. Loosen fuel filler tube cap.

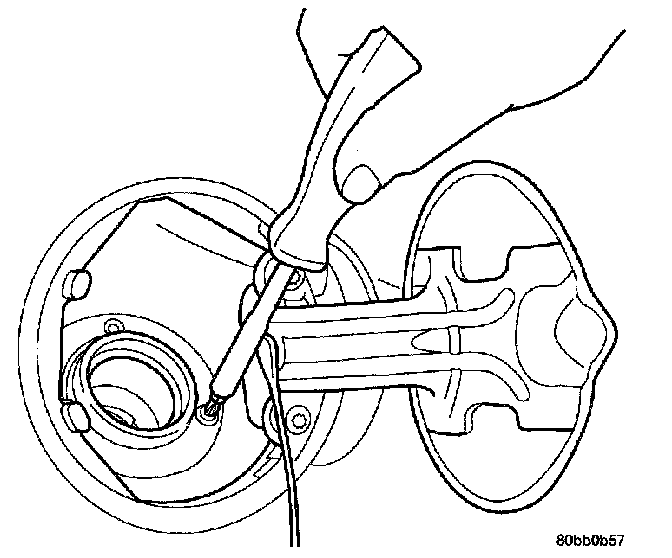

Fuel Filler Neck:

2. Remove fuel filler neck screws.
3. Raise and support vehicle.
4. Remove splash shield from wheel well.
5. Disconnect fuel fill vapor tube.
6. Disconnect fuel filler tube from fuel tank.
7. Remove ground-strap from body.

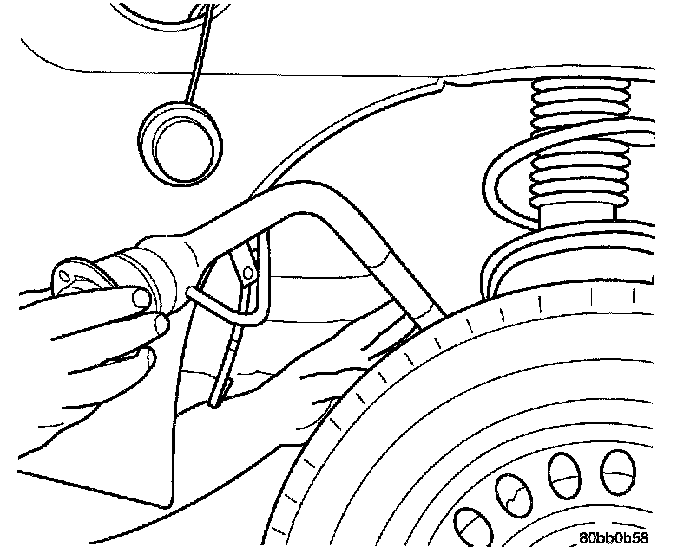

Remove Filler Neck:

8. Remove filler neck.

INSTALLATION
1. Install filler tube.
2. Install fuel filler neck screws and plastic filler cup.
3. Connect fuel fill vapor tube.
4. Connect fuel filler tube to fuel tank. Tighten clamp.
5. Connect ground strap to body.
6. Lower vehicle.
7. Install fuel filler tube cap.
