Coolant Level Check

NOTE: Do not remove radiator cap for routine coolant level inspections.

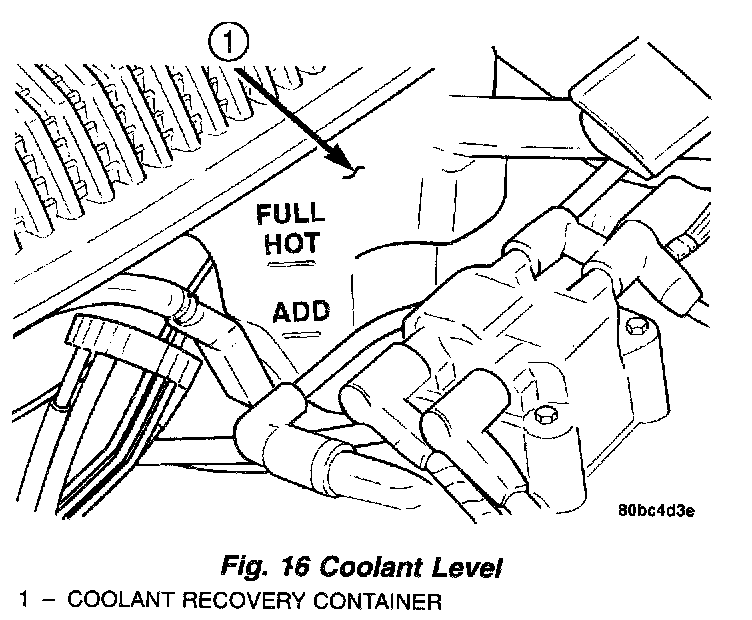

The coolant recovery/reserve system provides a quick visual method for determining the coolant level without removing the radiator cap. Simply observe, with the engine idling and warmed up to normal operating temperature, that the level of the coolant in the recovery/reserve containe is between the FULL HOT and ADD marks.
