Rear Seat Back

REAR SEAT BACK

REMOVAL

1. Remove rear seat cushion.

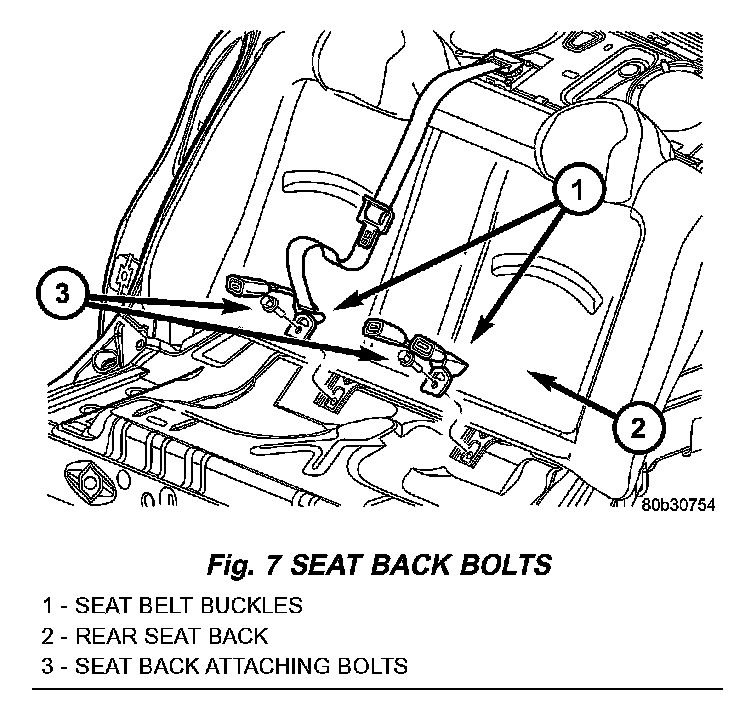

Fig. 7:

2. Remove bolts attaching rear seat back and seat belts to floor (Fig. 7).

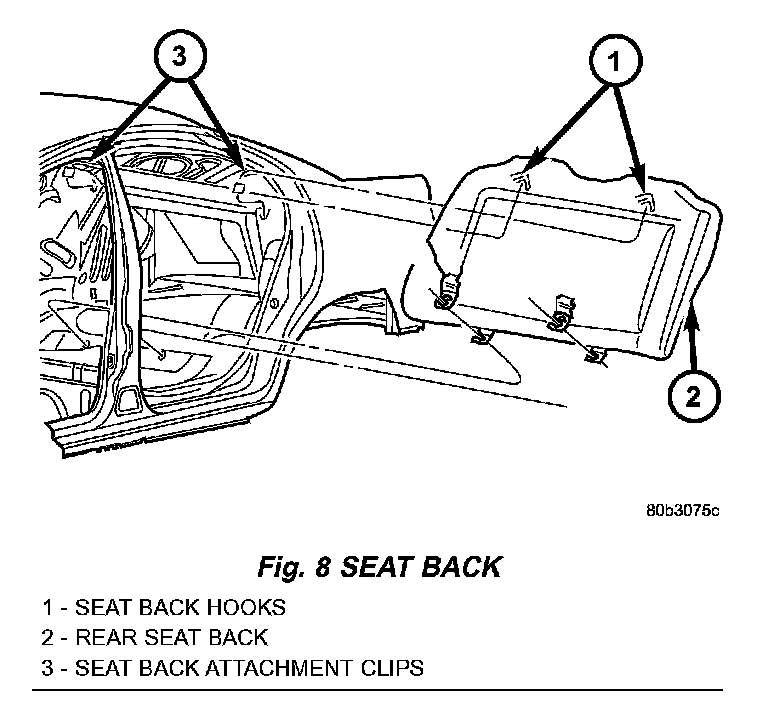

Fig. 8:

3. Push rear seat back upward to disengage hooks at top of seat back (Fig. 8).
4. Remove rear seat from vehicle.

INSTALLATION

1. Move rear seat back into position in vehicle.
2. Push seat back downward to engage hooks at top of seat back.
3. Install bolts attaching rear seat back and seat belts to floor.

NOTE: The torque specification for the inner seat belt/rear seat back retaining bolts is 57 N.m (42 ft.lbs.).

4. Install rear seat cushion.
