Front Door Striker: Service and Repair

LATCH STRIKER

REMOVAL

1. Mark outline of door latch striker on B-pillar to aid installation.

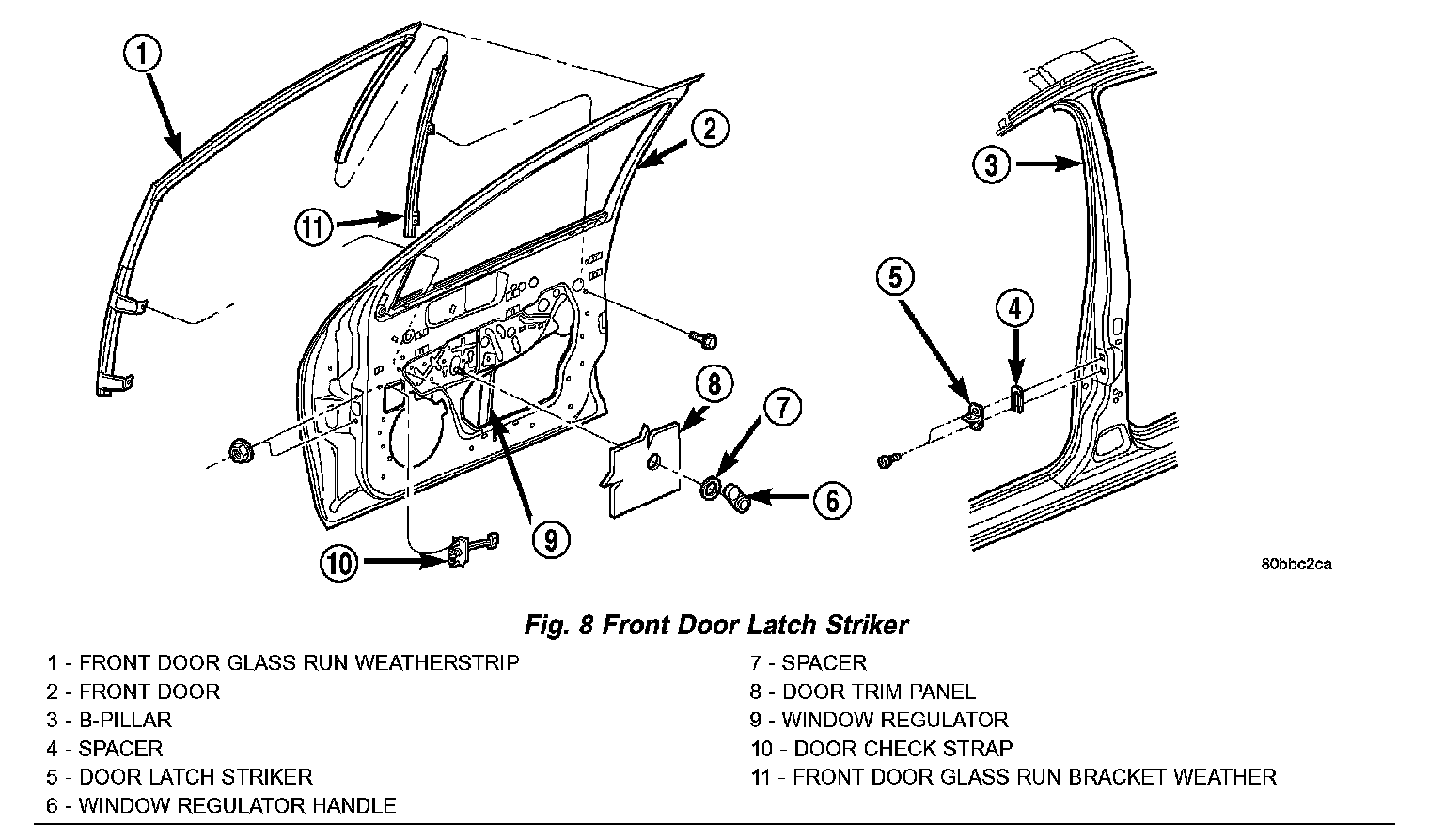

Fig. 8:

2. Remove screws attaching door latch striker to B-pillar (Fig. 8).
3. Remove door latch striker from vehicle.

INSTALLATION

1. Install door latch striker into the door.
2. Install screws attaching door latch striker to B-pillar loosely.
3. Align door latch striker to outline marks on the B-pillar.
4. Tighten screws attaching door latch striker to B-pillar.
5. Check door alignment and adjust as necessary.
