P0107

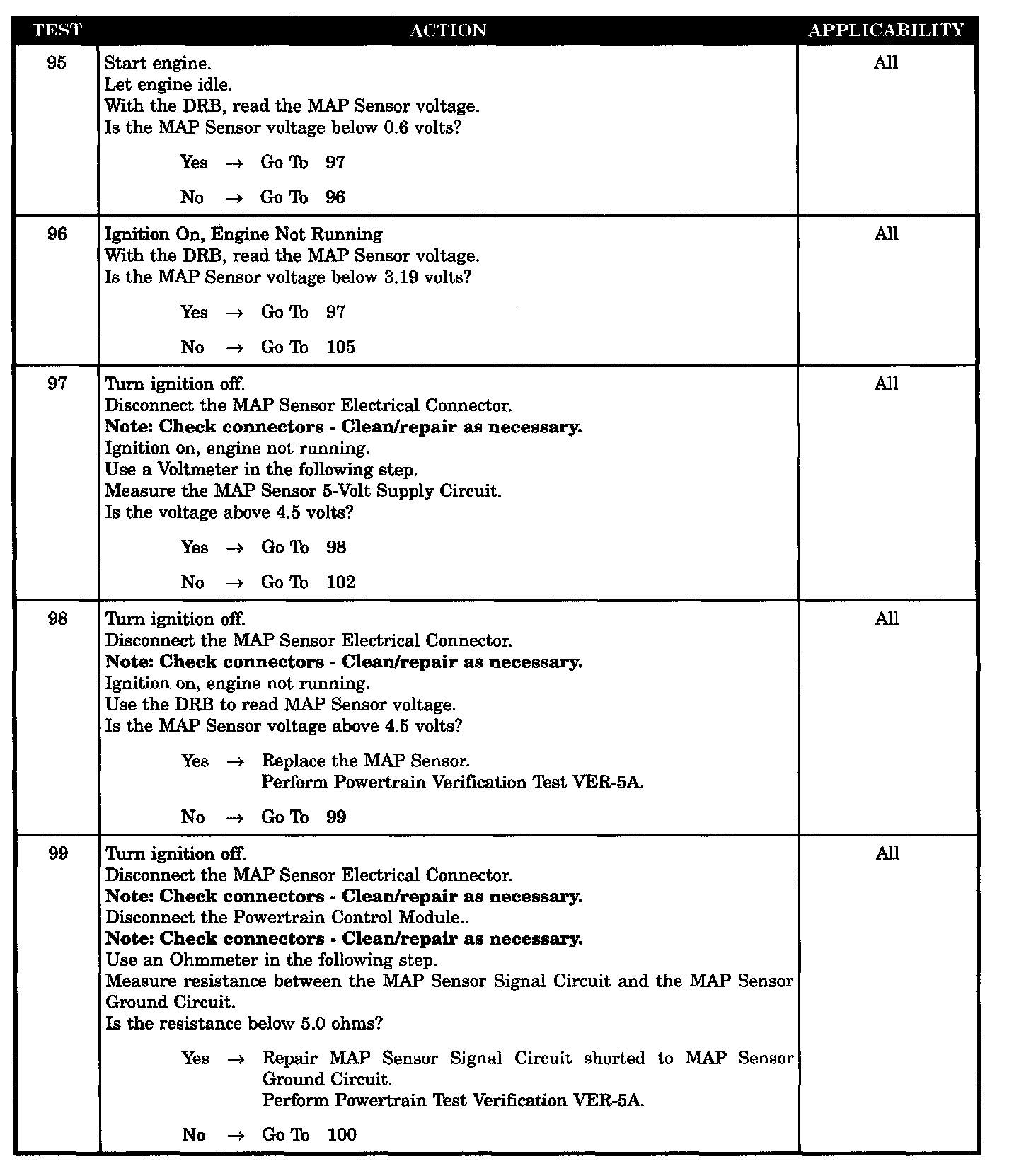

Tests 95 - 99:

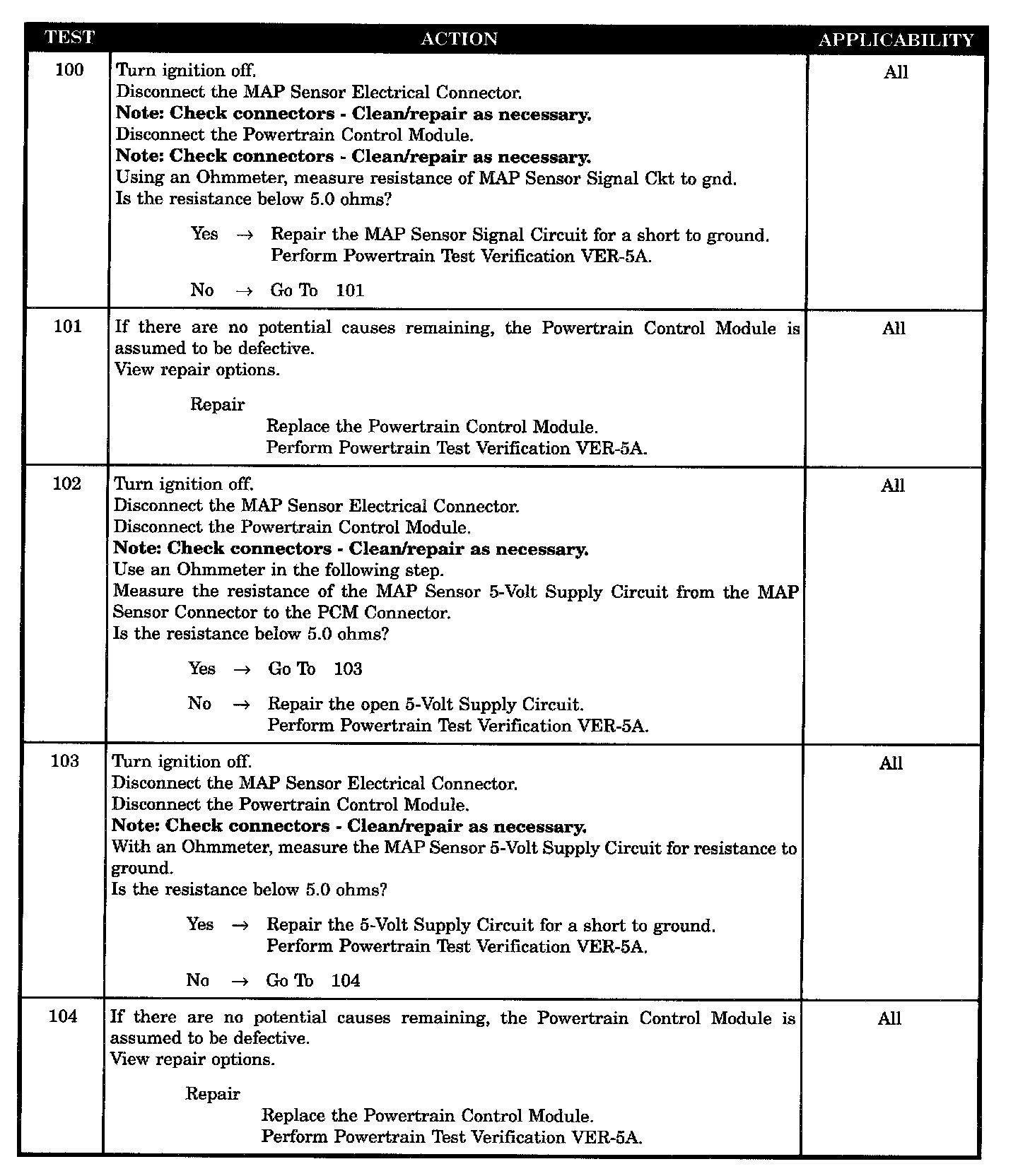

Tests 100 - 104:

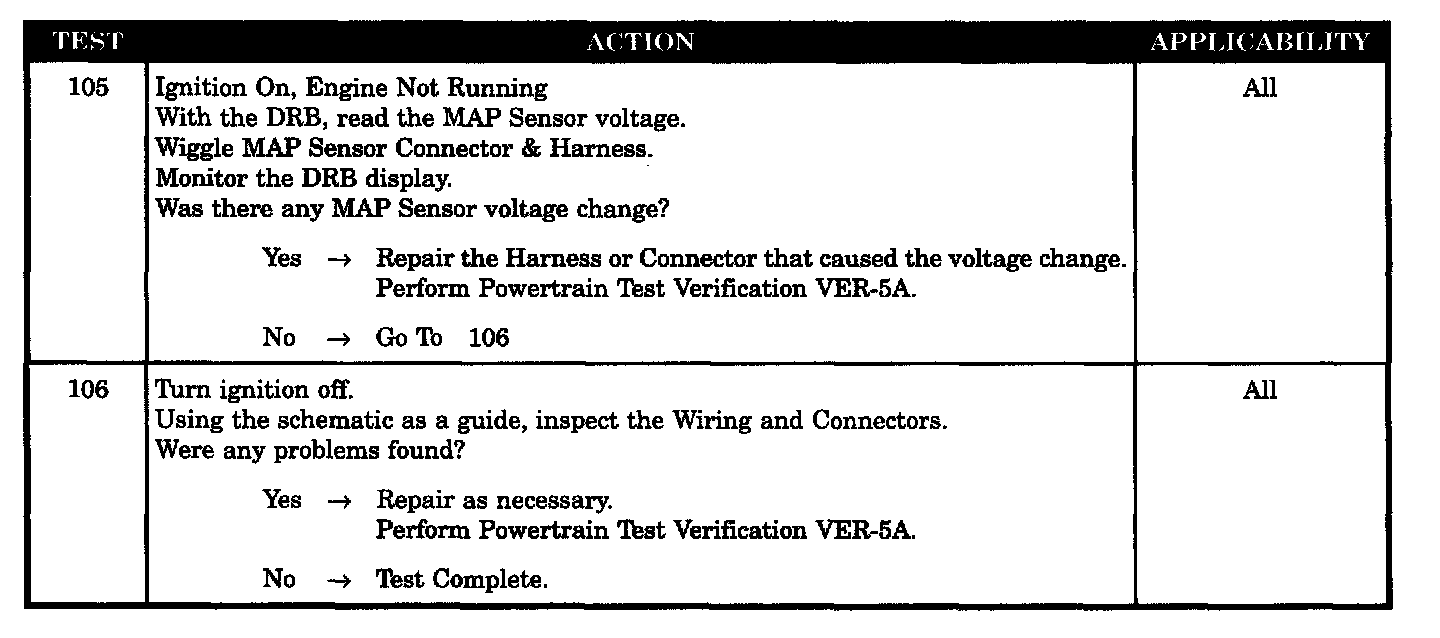

Tests 105 - 106:

SYMPTOM
P0107 - MAP SENSOR VOLTS TOO LOW

WHEN MONITORED
With the engine speed above 416 rpm but less than 3520 rpm, the TP sensor voltage less than 1.13 volts, and battery voltage greater than 10.4 volts.

SET CONDITION
The MAP sensor signal voltage is below 0.1 volt for 2.0 seconds with the engine running.

POSSIBLE CAUSES
- MAP sensor wiring harness intermittent defect
- MAP sensor wiring harness observable defect
- MAP sensor 5 volt supply circuit open
- MAP sensor 5 volt supply circuit shorted to ground
- MAP sensor signal circuit shorted to sensor ground circuit
- MAP sensor signal circuit shorted to ground
- MAP sensor defective
- PCM defective (5 volt supply)
- PCM defective (signal circuit)
