A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Vehicle Theft Security System
>>
VTSS Fails to Arm/Disarm From Driver Cylinder Lock Switch
VTSS Fails to Arm/Disarm From Driver Cylinder Lock Switch

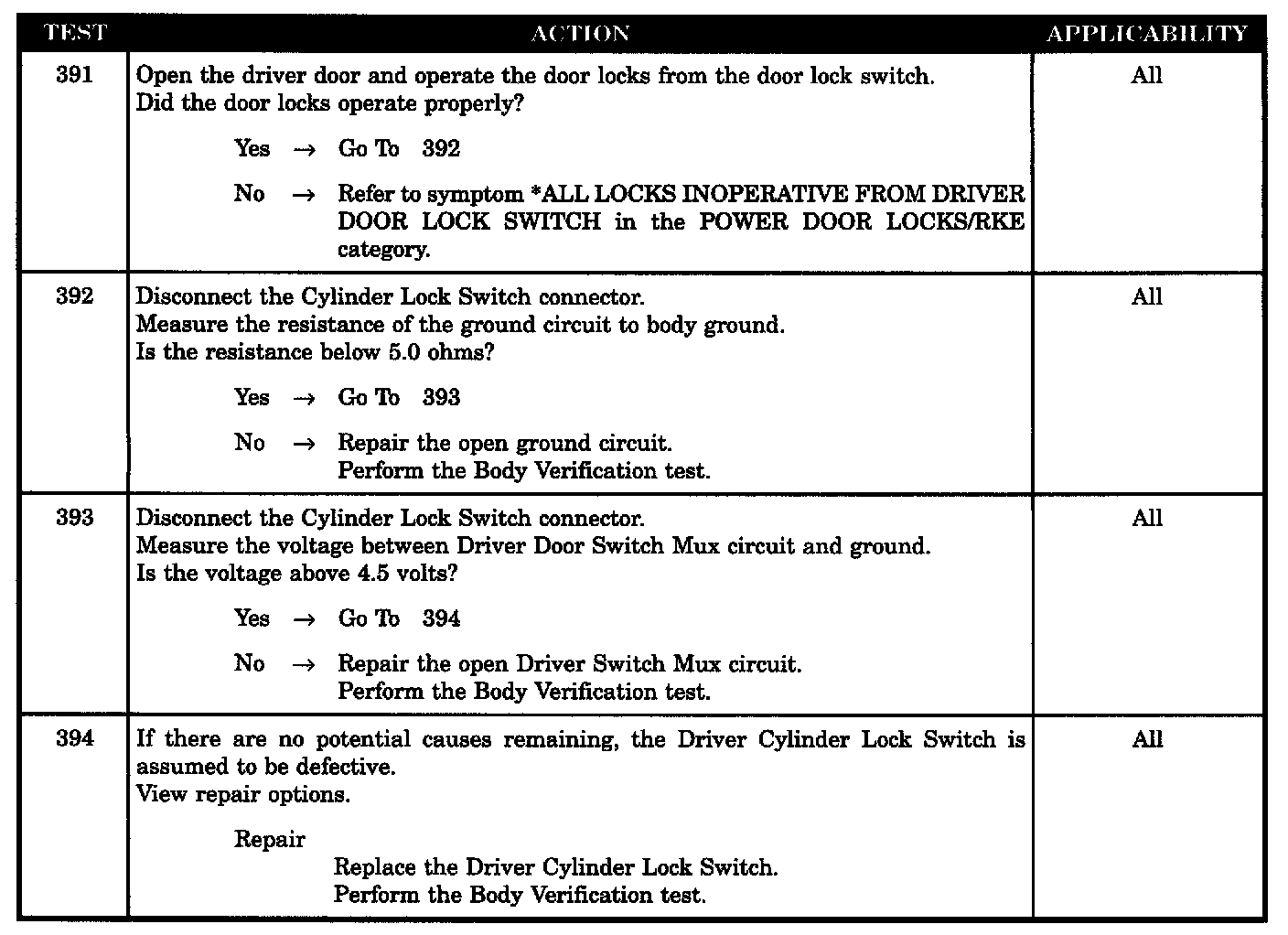

Test 391 - 394:
SYMPTOM
VTSS FAILS TO ARM/DISARM FROM DRIVER CYLINDER LOCK SWITCH
POSSIBLE CAUSES
-
Ground circuit open
-
Open driver cylinder lock switch
-
Open driver switch MUX circuit
