Passenger Squib Shorted to Ground (Active)

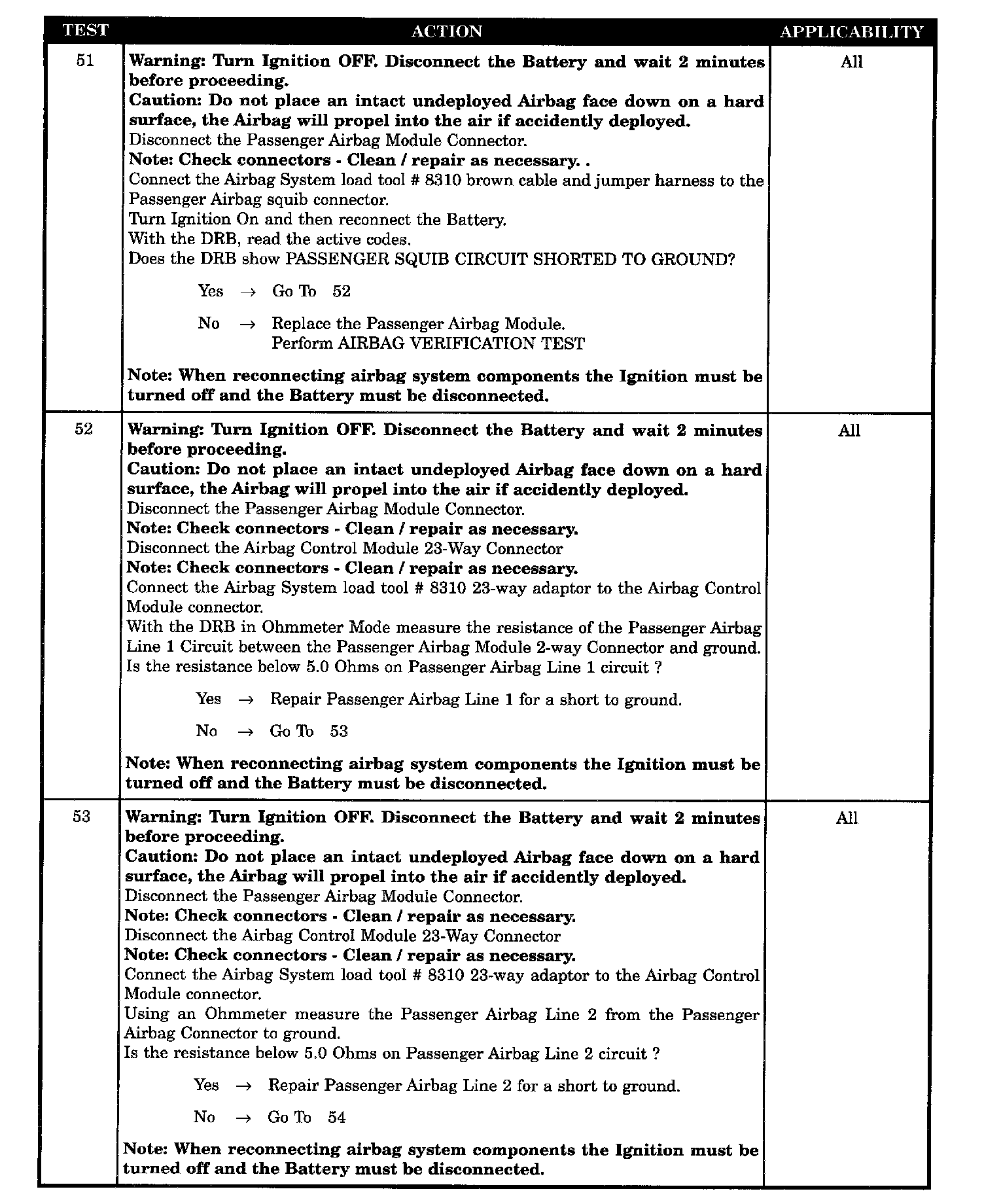

Test 51 - 53:

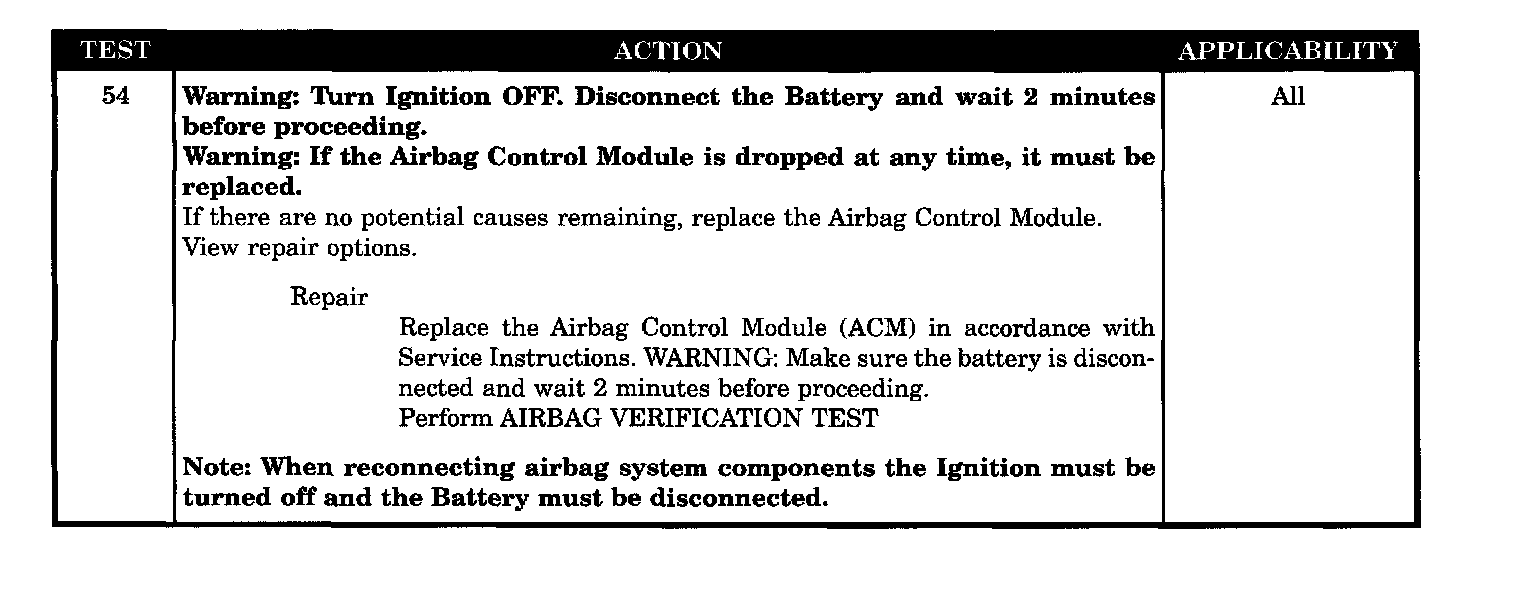

Test 54:

SYMPTOM
PASSENGER SQUIB SHORT TO GROUND (ACTIVE)

WHEN MONITORED
Continuously with the ignition ON.

SET CONDITION
The ACM has detected a short to ground in the Passenger Squib circuits.

POSSIBLE CAUSES
- Passenger airbag line 1 shorted to ground
- passenger airbag line 2 shorted to ground
- passenger airbag module short to ground
- ACM, PAB circuit shorted to ground
