No PCI Transmission (Stored)

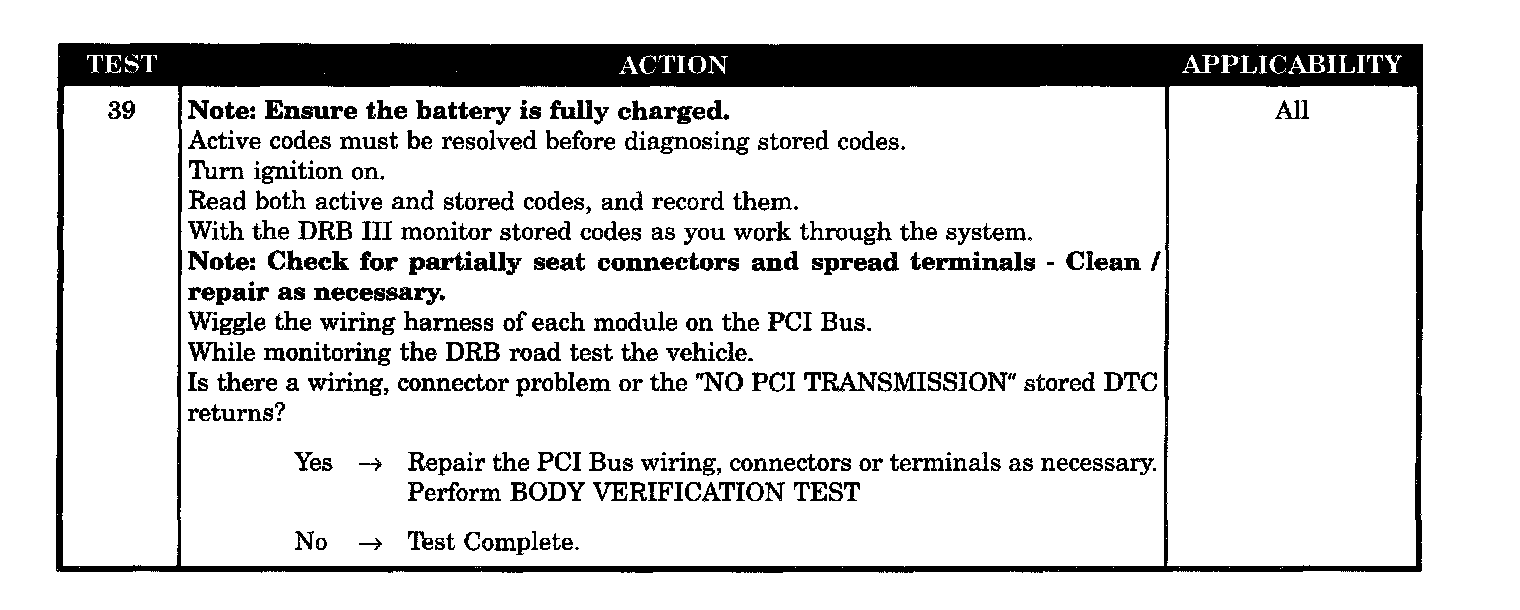

Test 39:

SYMPTOM
NO PCI TRANSMISSION (STORED)

WHEN MONITORED
With the ignition in the ON position and the ACM transmitting information on the PCI BUS.

SET CONDITION
The code will set if the ACM cannot detect the ACM transmitting information on the PCI BUS for 5 consecutive seconds. NOTE: Any PCI Bus Failure will cause this code to set.

POSSIBLE CAUSES
- Intermittent PCI bus test
