Complete PCI Bus Failed

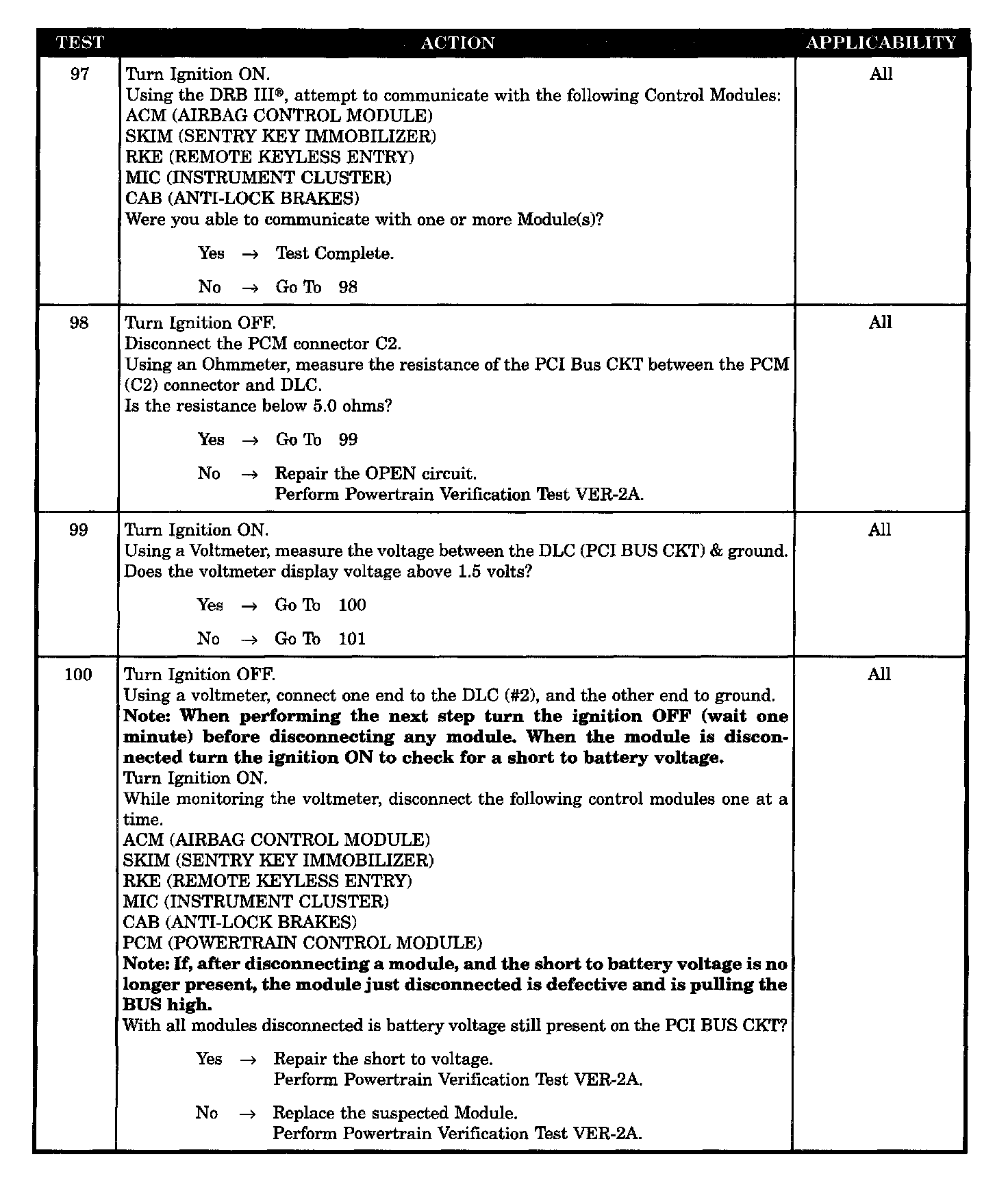

Test 97 - 100:

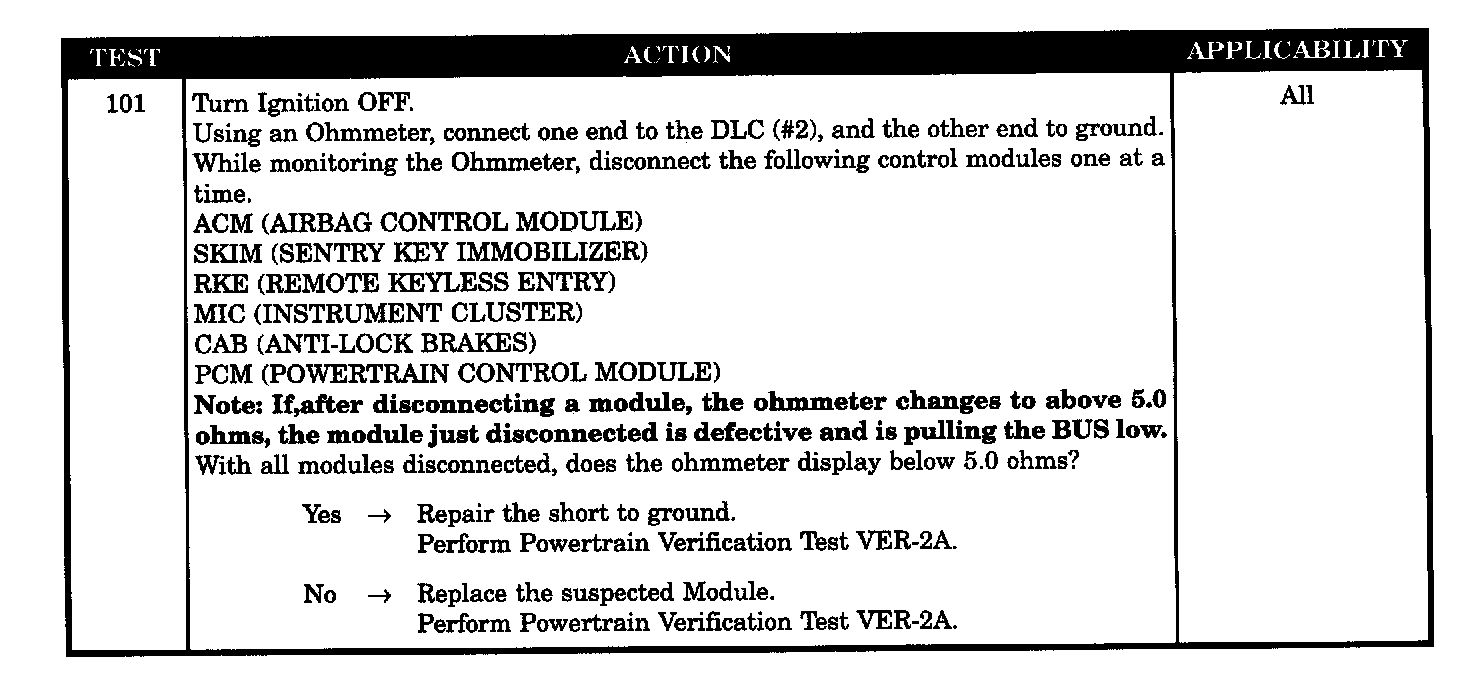

Test 101:

SYMPTOM
COMPLETE PCI BUS FAILER

POSSIBLE CAUSES
- Open circuit between PCM & DLC
- PCI short to ground
- PCI short to voltage
- Suspect module short to ground
- Suspect module short to voltage
