Cluster Fault

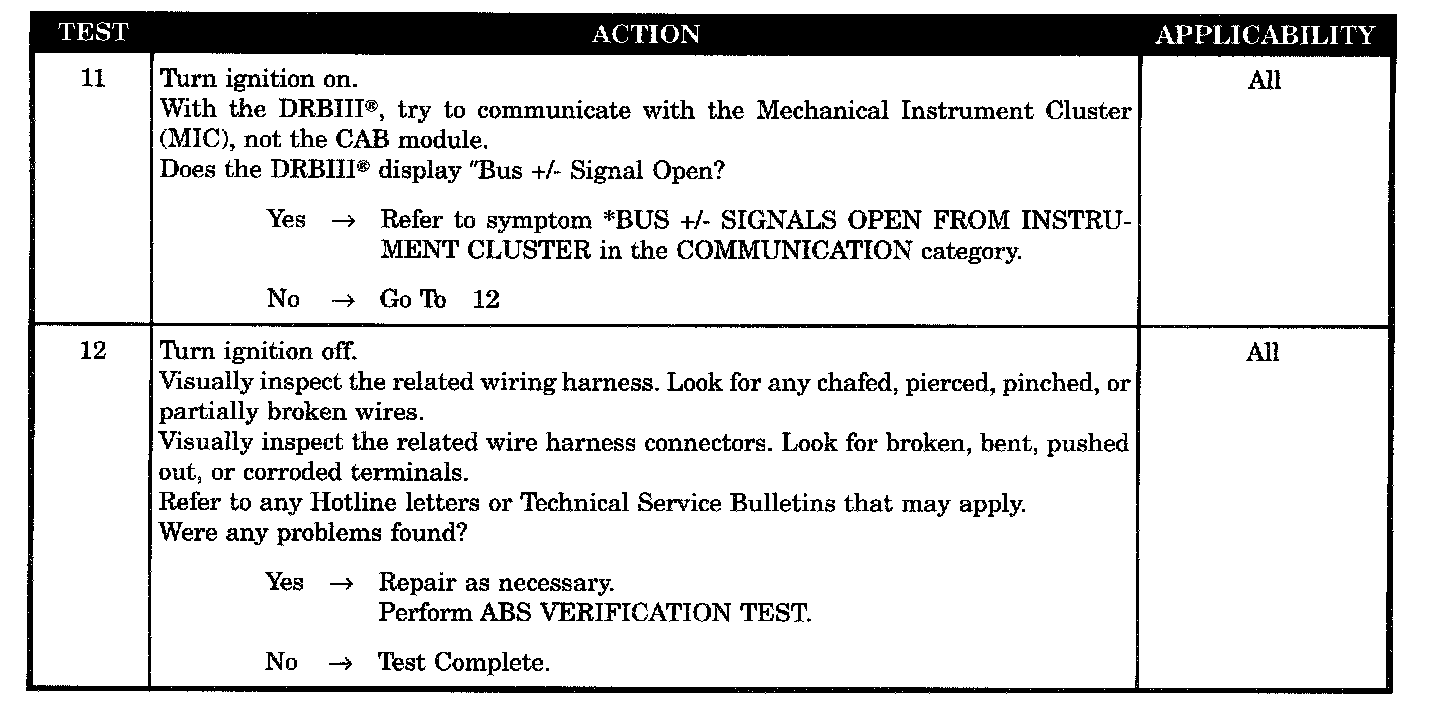

Test 11-12:

Symptom:
CLUSTER FAULT

When Monitored and Set Condition:
CLUSTER FAULT

When Monitored: Ignition on, every time a message is sent from the instrument cluster.

Set Condition: This DTC will be set when the message from the instrument cluster, via PCI Bus, informs the CAB that it can not turn on the ABS Warning Indicator or the Red Brake Warning Indicator.

POSSIBLE CAUSES
INTERMITTENT DTC
