Front Door Window Regulator

FRONT DOOR WINDOW REGULATOR
Power and manual door glass regulators are serviced using the same procedures. For power window motor service procedures refer to Power Windows.

REMOVAL
1. Remove door trim panel.
2. Separate glass from regulator roller channel.
3. Disengage power window motor wire connector, if equipped.
4. Loosen screw holding regulator scissor channel to door panel.
5. Separate screw and bolt heads from keyhole slots in door panel.
6. Loosen bolts holding regulator to door panel.

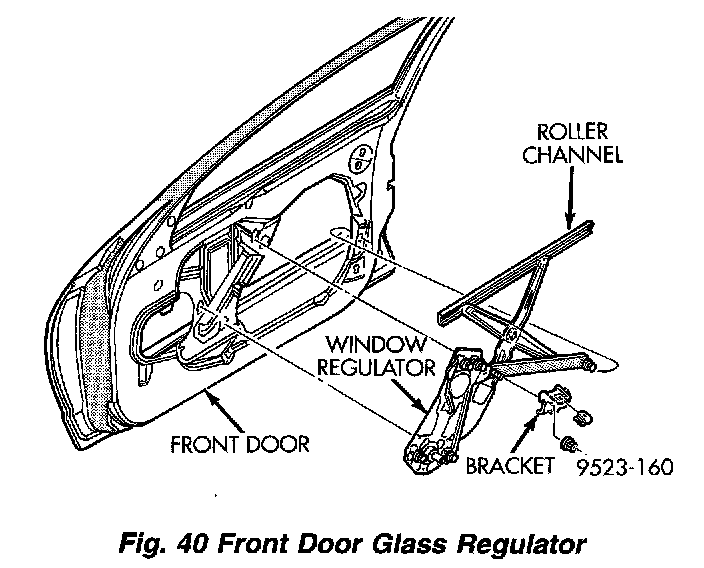

Front Door Glass Regulator:

7. Separate regulator from door panel.
8. Slide regulator rearward and rotate forward end of roller channel through access hole in door panel.

INSTALLATION
1. Position regulator in door through access hole in door panel.
2. Position regulator on door panel.
3. Tighten bolts holding regulator to door panel.
4. Position screw and bolt heads in keyhole slots in door panel.
5. Tighten screw holding regulator scissor channel to door panel.
6. Engage power window motor wire connector, if equipped.
7. Position glass in regulator roller channel.
8. Tighten fasteners holding door glass to roller channel.
9. Install door trim panel.
