No Response From TCM

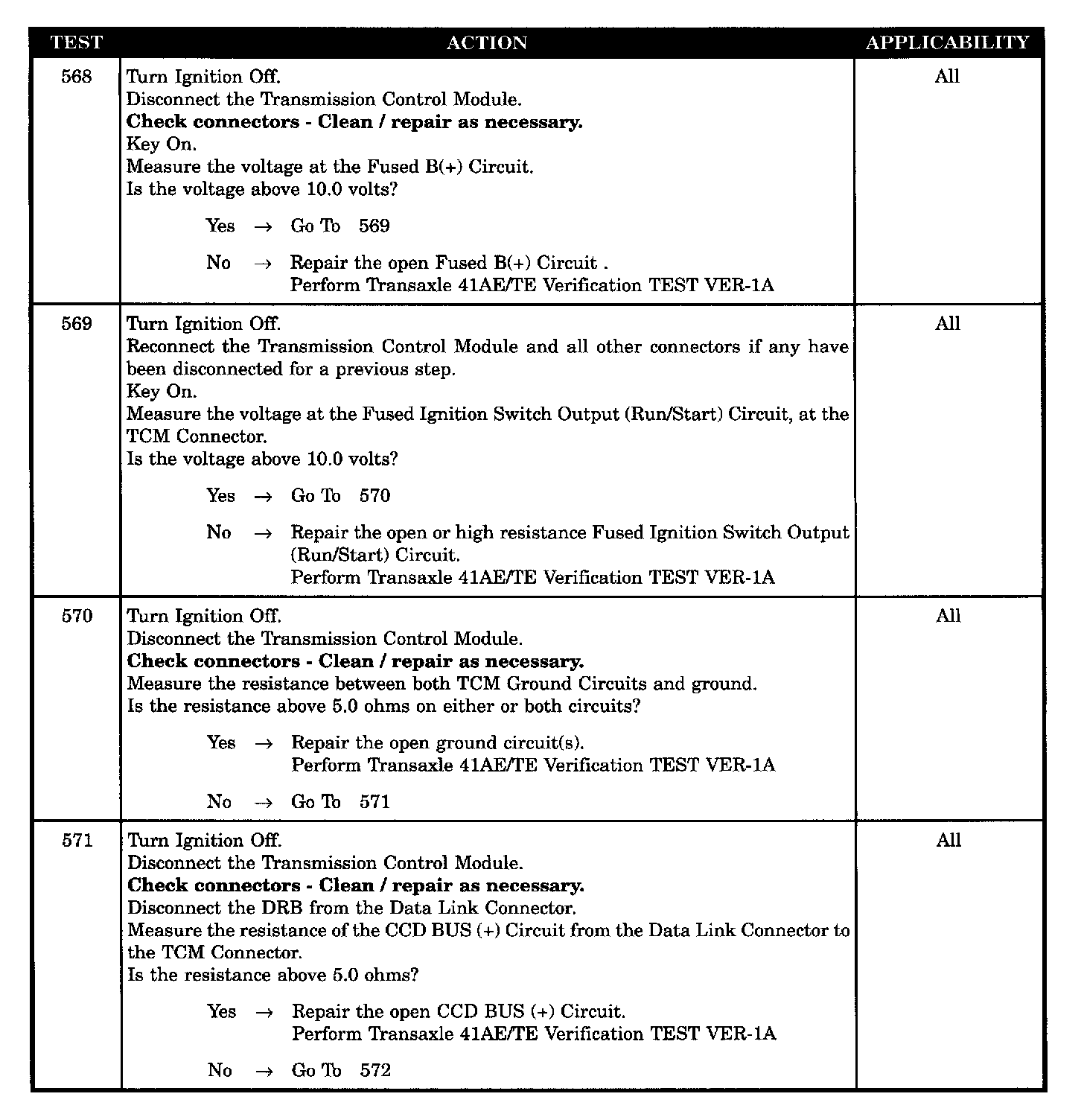

Test 568 Through 571:

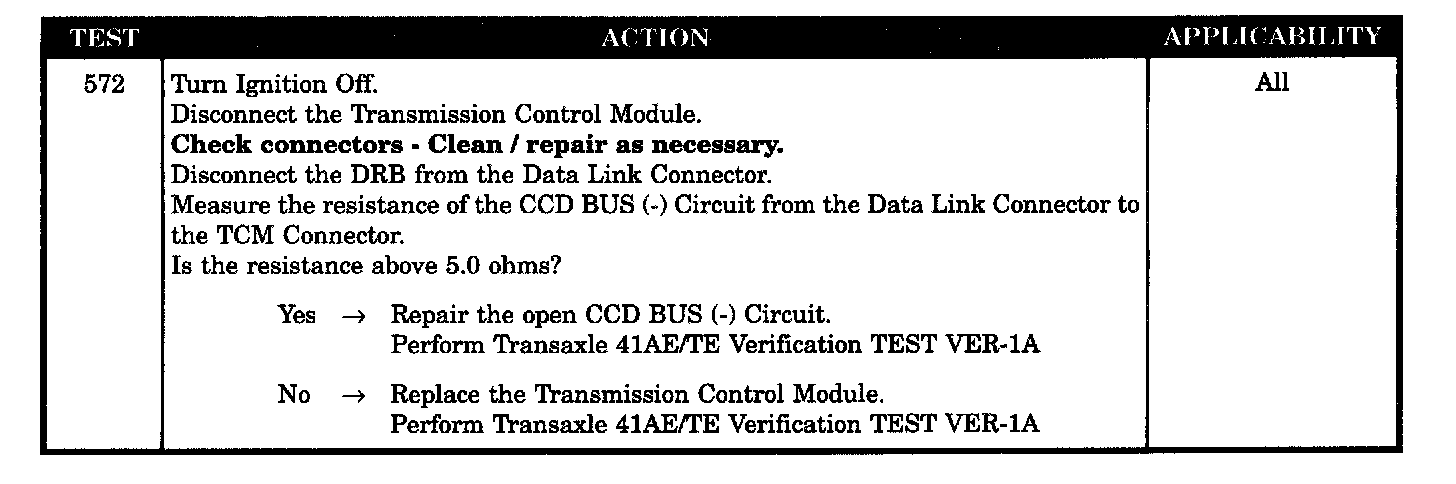

Test 572:

Symptom:
* NO RESPONSE (TCM)

POSSIBLE CAUSES
TCM CCD BUS CIRCUIT OPEN
TCM CCD BUS CIRCUIT OPEN
FUSED B(+) CIRCUIT TO TCM OPEN
FUSED IGNITION SWITCH OUTPUT (RUN/START) CIRCUIT OPEN
TCM GROUND CIRCUITS OPEN
TCM CCD BUS DEFECTIVE
