Gearshift Knob

REMOVAL
1. Pull shifter boot down and away from shifter roll pin.

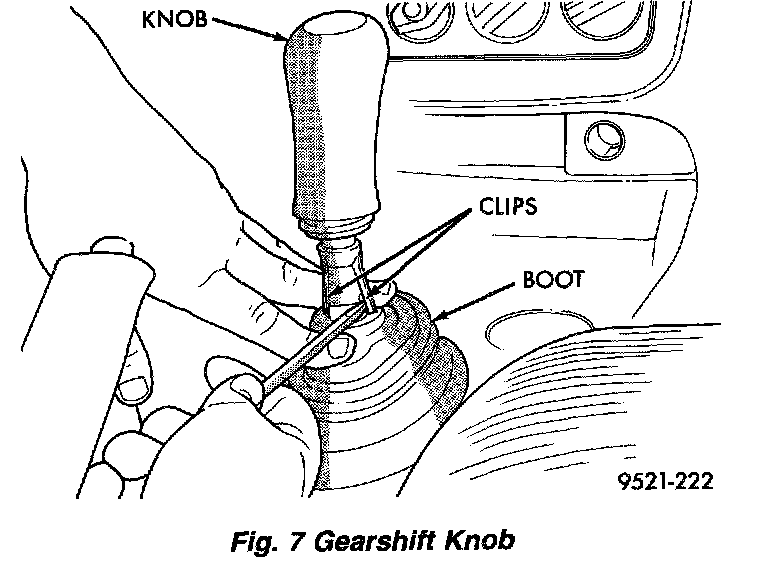

Fig. 7:

2. Pry legs of shift knob away from shift lever roll pin using a flat blade pry tool.

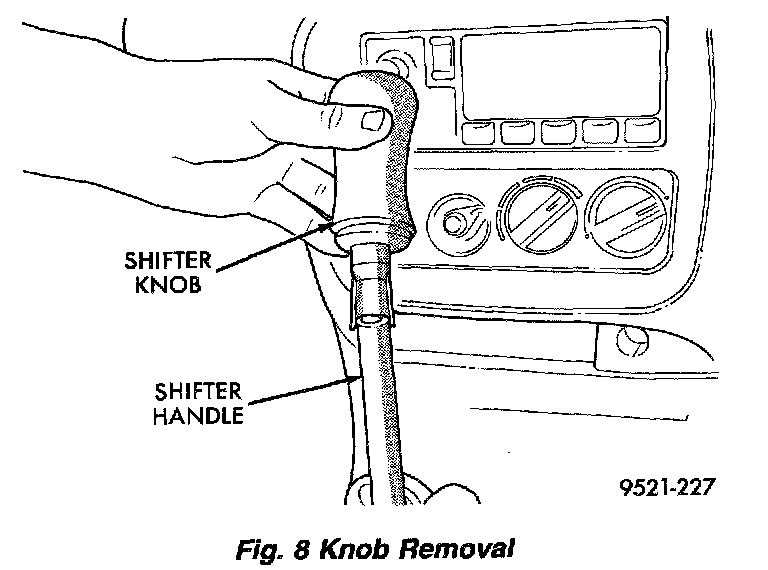

Fig. 8:

3. Remove knob from shifter handle.

INSTALLATION
1. For installation, reverse removal procedure.
