Gearshift Mechanism Replacement

REMOVAL
1. Remove shifter knob and boot.
2. Remove console assembly.
3. Disconnect gearshift cables at shifter end.

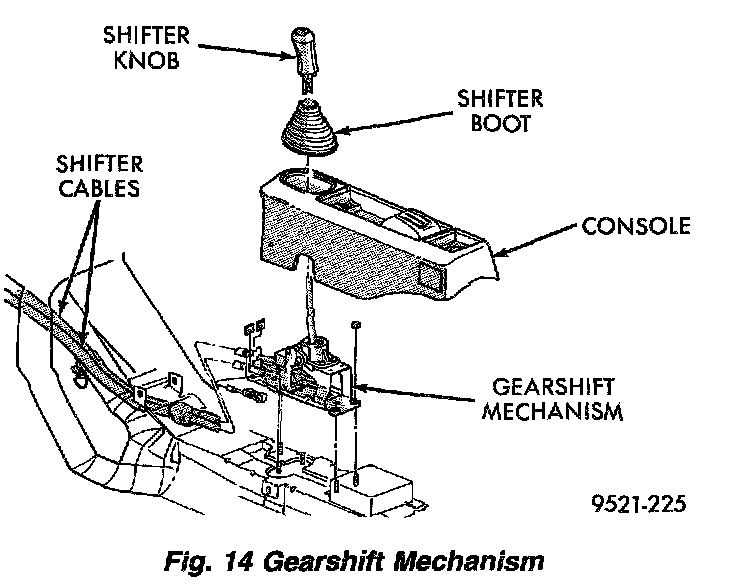

Fig. 14:

4. Remove retaining nuts at the base of the gearshift mechanism. Remove shifter.

INSTALLATION
1. For installation, reverse removal procedure.
