Manual Transmission/Transaxle: Application and ID

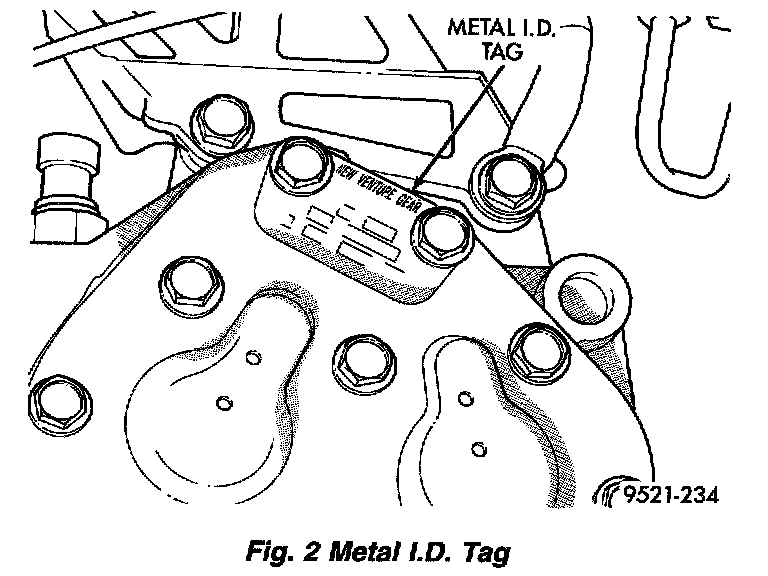

Fig. 2:

Fig. 3:

The transaxle model, assembly number, and build date are on a metal I.D. tag that is attached to the end cover of the transaxle. This information is also shown on a bar code label that is attached to the front of the transaxle.

NOTE: Transaxles use various final drive gear ratios in different vehicle applications. Therefore, it is necessary that the correct transaxle assembly number is used when ordering service parts.

The last eight digits of the Vehicle Identification Number V.I.N.) are stamped on the case, below the back-up lamp switch.

NOTE: There are four different versions of this transaxle. There are no external differences between the models. Refer to the identification tag on the transaxle to determine which transaxle the vehicle is equipped with.
